| Prod Model: |
HQ400/600/700 |
| Table Tilting: |
0-85 Degree |
| Table Rotation: |
360° |
| Table Size(L*W): |
3200*2000mm |
| Max Cut Thick: |
230mm |
| Payment: |
T/T |
| Type: |
CNC Cutting Machine |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description

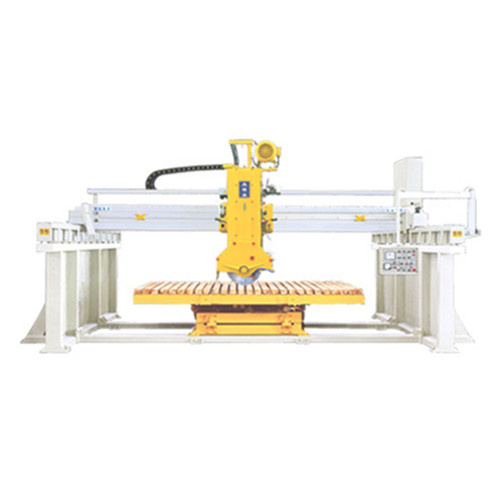

Bridge Saw with Laser Guide(HQ400-600-700v)1. ISO, CE Certification.
2. Good services and warranty.
3. High power and easily operation.
Working Video: HQ400600 http://youtu.be/9HcXYJilfO0
HQ700 http://youtu.be/MciWoGjgob0
Basic Info:The bridge saw works by industiral computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel.
It is able to cut 3.2 m length and 2 m width with laser guide sensor for cutting guide.
The table tilts up to 85° for easy load of big slabs and also turns 90/360 degree to change the cutting direction.Features:1. Long bridge structure for cutting big slab.
2. Titling table for easy load of big slab.
3. Automatic cut by program on PLC system.
4. Precise movements on X, Y, Z axis ensuring cutting accuracy +/-0.2mm
5. Electric parts from Japan for stability and long service time.
6. Main parts made of cast iron for heavy duty work and stable performance.Specification:| Model | 400 | 600 | 700 |
| Blade Size | Φ300-Φ450 mm | Φ300-Φ600 mm | Φ300 - Φ700 mm |
| Blade Tilting | N/A | N/A | 0°- 45° |
| Table Size (L×W) | 3200×2000 mm 126"×79" |
| Table Rotation | 0°- 90° / 360° | 0°- 360° |
| Table Tilt | 0°- 85° |
| Max. Cut size | 3200×2000 mm 126"×79" |
| Spindle Motor | 15 Kw 20HP | 15 Kw 20HP | 18.5 Kw 25HP |
| Size (L×W×H) | 6×4.8×2.9 m | 6×4.8×3 m | 6×5.7×3.5 m |
| Weight | 6,300 Kg | 6,500 Kg | 7,500 Kg |
Pictures
Packing:
Guarantee & after sale service1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving. FAQ:1, How to pay to you ?
T/T in advance. We accept 30% deposit , 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4,How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
