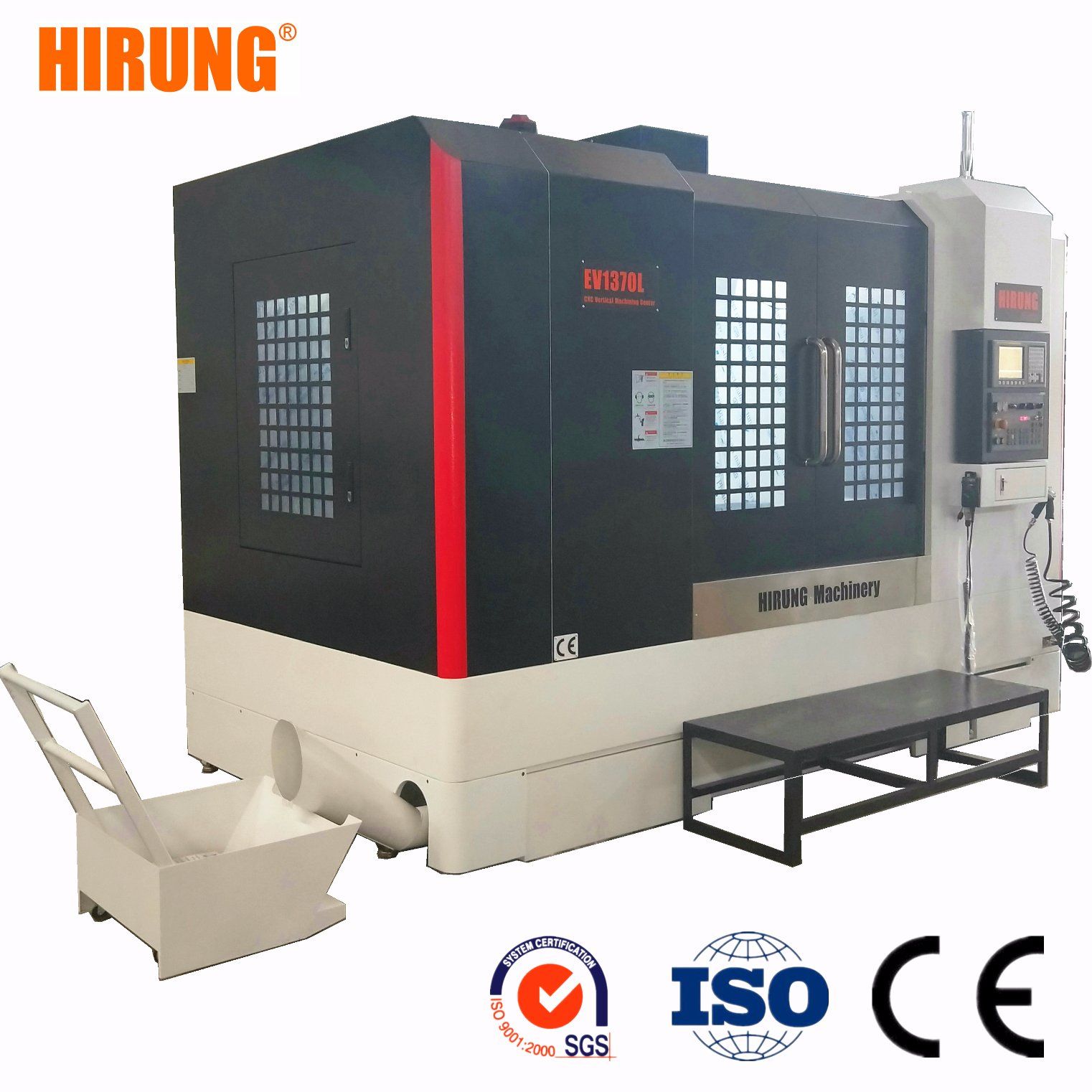

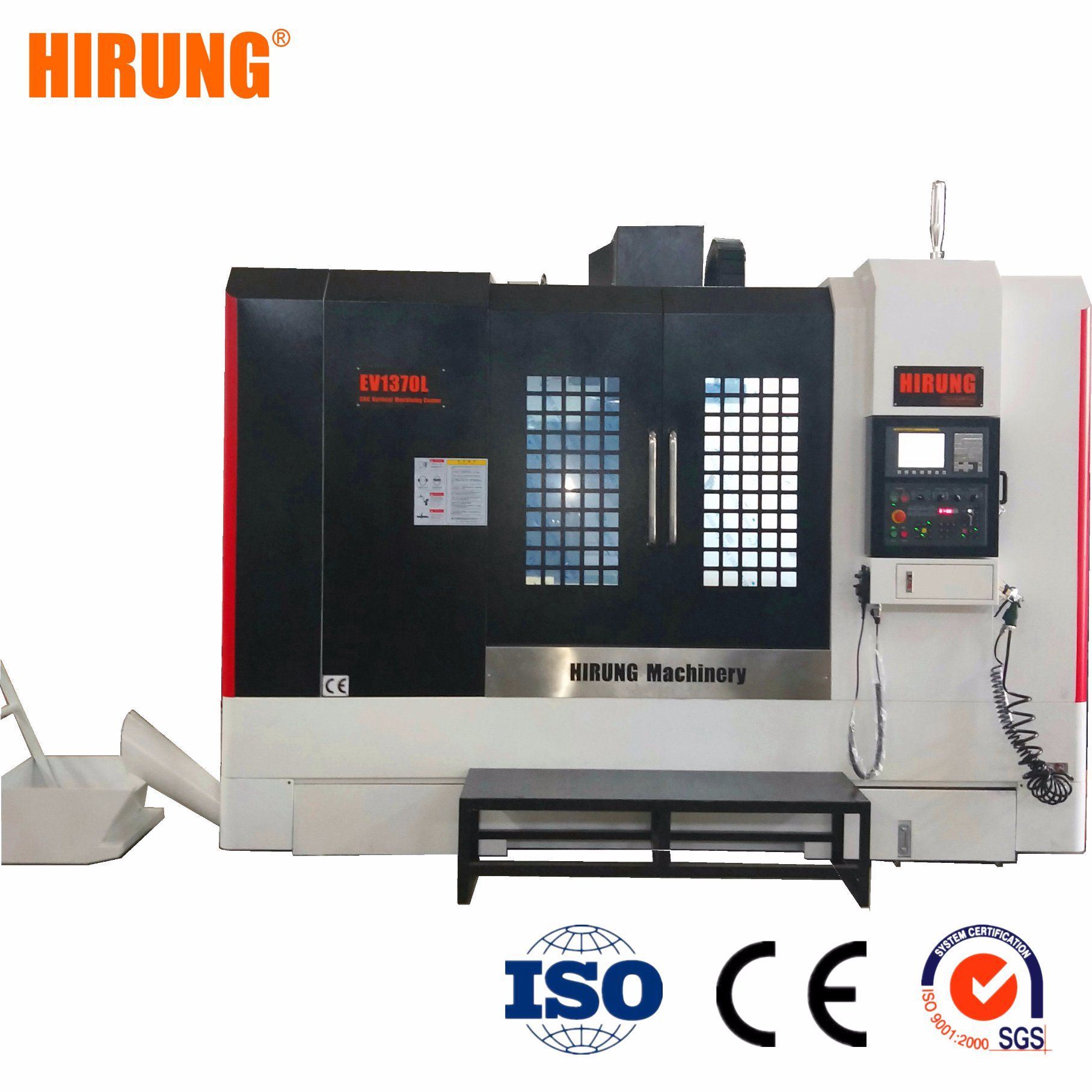

CNC Vertical Milling Machine EV1370 High Accuracy with 4kw Main Motor Power
| Price: |
US $ 19999-48000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
EV1370 |
| Metal: |
Metal |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Mid-Range CNC Machine Tools |
| Processing Precision: |
±0.003 |
Product Description
Milling machine , vertical milling machine cnc , CNC vertical milling machine EV1370L

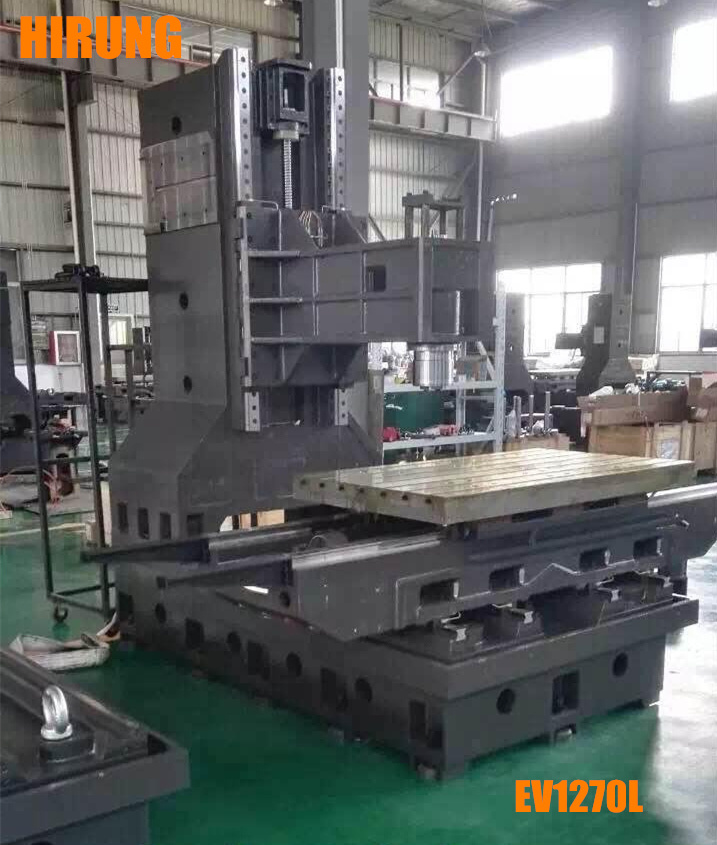

1. Product IntroductionEV Series has high performance, high efficiency, high precision, high stability. The machine can realize the functions of the vast majority of drilling, milling, boring and reaming automatic processing cycle. It is ideal for light industry, textile machinery, mould industry and spare parts processing equipment.2. Main features1. "A" type column has bigger span in base to ensure rigidity and stability.
2.In spindle box, rib is reinforced to strengthen the contact surface between spindle box and column and provides great support.
3.All the parts are Germany, Japan and Taiwan imported components to ensure the durability and long-term stability of machine.
,"A","","";
"A" type column has bigger span in base to ensure rigidity and stability.
,,,,;
Saddle is wider and thicker to ensure the ability of heavy duty when processing.
,;
In spindle box, rib is reinforced to strengthen the contact surface between spindle box and column and provides great support.
,,,.
All the parts are Germany, Japan and Taiwan imported components to ensure the durability and long-term stability of machine.
THK,,,

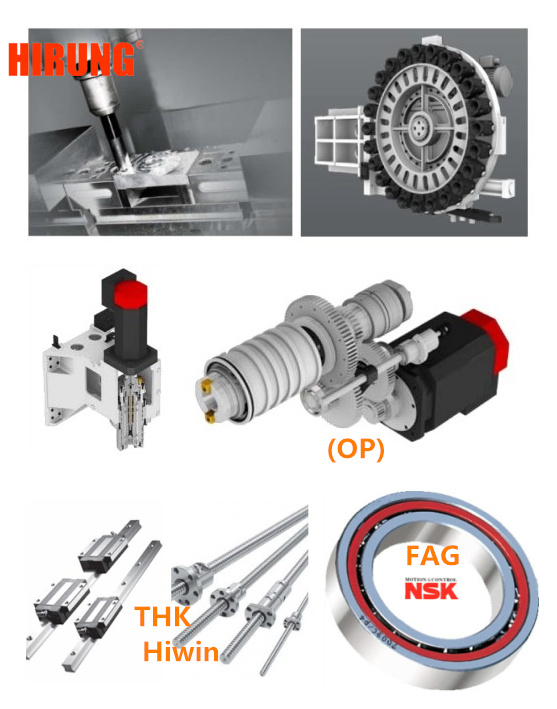

Three axes roller ball screw adopt Japanese THK or same level ball screws which use the method of direct connection and pre-stretching to ensure the accuracy of machine.
THK,,,,,.
Three axes adopt Japanese THK or same level linear guideways which have the advantages of small friction, short rapid transit time and high efficiency. And the excellent repeated positioning accuracy can realize the high processing accuracy.
| TYPE | EV1370 L |
| X-AXIS TRAVEL | 1300mm |
| Y-AXIS TRAVEL | 700mm |
| Z-AXIS TRAVEL | 700mm |
| Spindle nose to working table | 120-820mm |
| Table |
| Working Surface | 700×1400 mm |
| Max. Table Load | 1400kg |
| T-Slot Size | 18/5 mm |
| Spindle Data |
| BT-TYPE | BT40/(OPBT-50) |
| Spindle Max. Speed | Belt 10000 rpm(OP BT50 6Krpm) |
| Motor Data |
| SPINDLE Power (kw) | 11 kw |
| 3-AXIS Power (kw) | X/Y/Z:4.0 kw |
| Feedrate |
| G1 F% | 10000MM/min |
| G0 F% | M :X/Y:32000 mm/min Z :20000 mm/min |
| SUB-SYSTEM SPECIFICATIONS AND OTHER DATA |
| Air Pressure | ≥6 kgf/cm2 |
| Net weight | 9200kg |
| Floor Space | 3800×3000×3000mm |
| item | unit | EV850L/M | EV1060L/M | EV1270L/M | EV1580 | EV1890 |
| X/Y/Z-axis travel | mm | 800/500/500 | 1000/600/600 | 1200/700/700 | 1500/800/700 | 1800/900/800 |
| Table size | mm | 550*1000
500*1050 | 600*1300 | 700×1360 | 800*1700 | 900*2000 |
| Max. table load | kg | 600
600kg | 1000 | 1400 | 2000 | 2000 |
| BT-Type | | BT-40 | BT-40 | BT-40/50 | BT-50(OP40) | BT-50(OP40) |
| Spindle max. speed | rpm | Belt type 8000rpm(OP10000/12000/15000) | 6000rpm | 6000rpm |
| Spindle power | kw | 7.5/11 | 7.5/11(OP 11/15) | 7.5/11(OP 11/15) | 11/15 | 11/15 |
| 3-axis power | kw | X/Y/Z:2.0 | X/Y/Z:3.0 | X/Y/Z:4.0 | X/Y/Z:5.0 | X/Y/Z:7.0 |
| Cutting feed rate | mm/min | 0-10000 | 0-10000 | 0-10000 | 0-8000 | 0-8000 |
| Rapid feed rate | mm/min | L:X/Y:48000 Z :36000
M:X/Y:20000 Z :15000 | L:X/Y:30000 Z :24000
M:X/Y:20000 Z :15000 |
L:X/Y/Z :30000
M:X/Y:16000 Z:14000 | X/Y:16000 Z:14000 | X/Y:16000 Z:14000 |
| Net weight | kg | L:6500
M:6000 | 8000 | 9500 | 12000 | 15500 |
| Floor space | mm | L:2700*2500*2730
M:2700*2400*2600 | L:3300*2500*2750
M:3350*2500*2800 | 3700*3000*3000 | 4100*3200*3250 | 4500*3500*3500 |
| NC System | | MITSUBISHI M70B/SIEMENS 828D(PPU240)8.4''/FANUC 0IMF |
Standard Configuration1,Total Splash Guard
2,24 Arm Type ATC 24 Tools
3, 8000rpm Belt Type Spindle
4,Cutting Coolant System
5, Automatic Centralized Lubrication System
6, Heat Exchanger for Electric Cabinet
7, Manual Pulse Generator
8,RS232 RS232 Interface
9, Working Light
10,Tricolor Caution Light
11 Basic toolbox
12 Leveling Bolts and Blocks
:Optional Configuration 1: Spindle Oil Cooler Devices
2: Auto Spiral Type Chip Conveyor
3: Hinge(Scraper) Type Chip Conveyor
4: (10-75Par)) Coolant Through Spindle Device
5: Air Conditioning Device in the Electric Box
6: Auto-measurement System for Tool Length and Diameter
7: Measuring System of Workpiece
8: Non-contact Measuring System of Tool Length and Diameter
9: Full Closed-loop System of the Linear Scale
10: (BT40) Spindle Speed (BT40) 10000/12000/15000rpm
12000/15000rpm

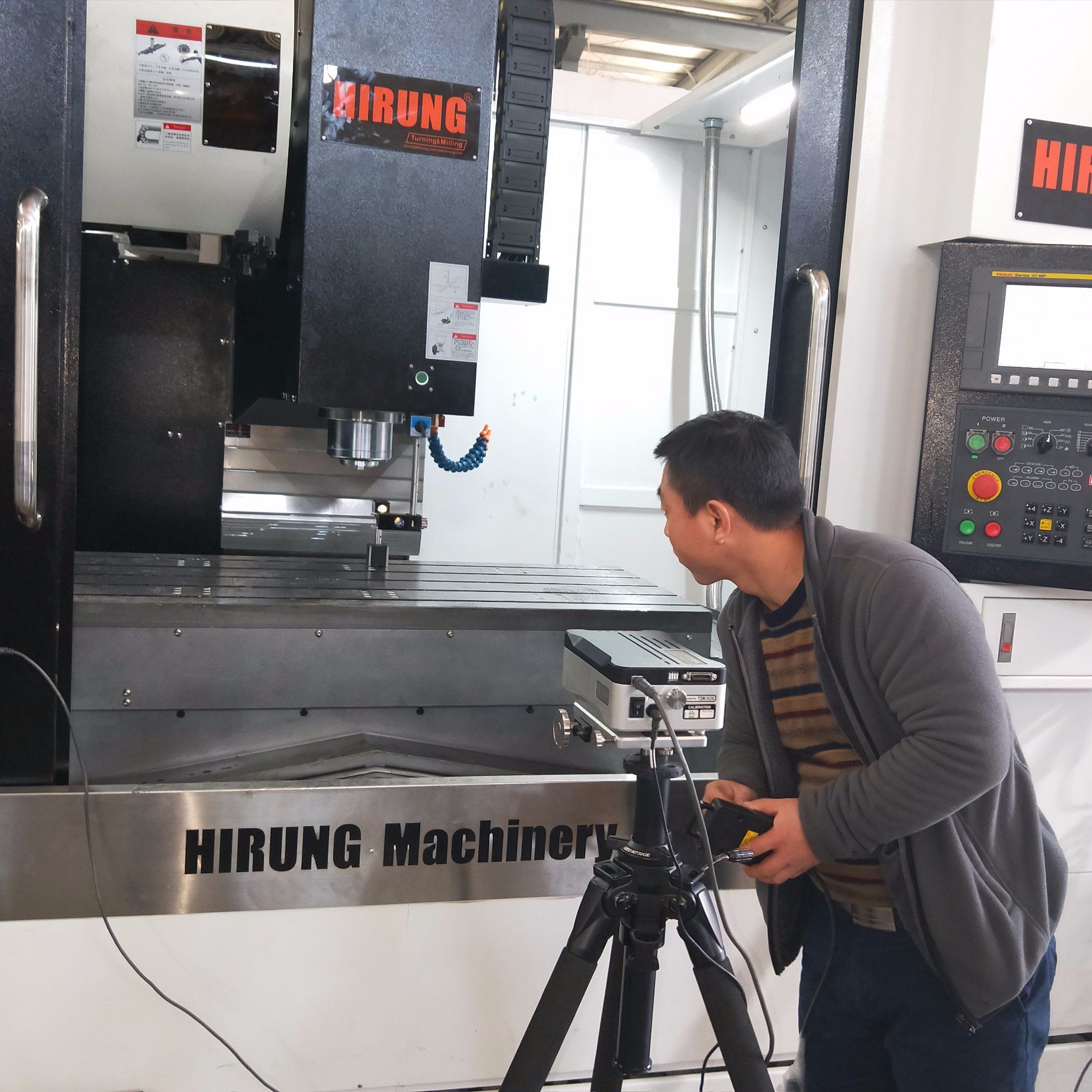

11: NCRotary Table of the Forth(Fifth) AxisNecessary testing before shipment
Why choose us:1.Reliable Trademark Company.
2.Gold Member and Audited Suppliers in Made-in-China.
3.Customize Machine According to Customer's Requirement.

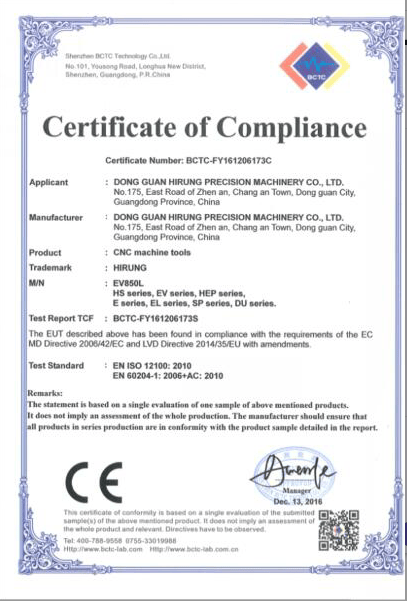

4.CE approved and One year warranty,provide whole-life technology support.
