| Prod Model: |
AWR28H |
| CNC System: |
GSK, Siemens |
| Spindle Bore: |
60mm |
| Max.Length Of Work Piece: |
750mm |
| Range Of Spindle Speed: |
100-2500rpm |
| Taper Of Spindle Bore: |
Mt5 |
| Max. Swim Over Bed: |
400mm |
| Stations Of Tool Carrier: |
4 |
| Motor Power: |
5.5kw |
| Packing Size (mm): |
2050*1400 *1650mm |
| Net Weight: |
1800kg |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
Product Description

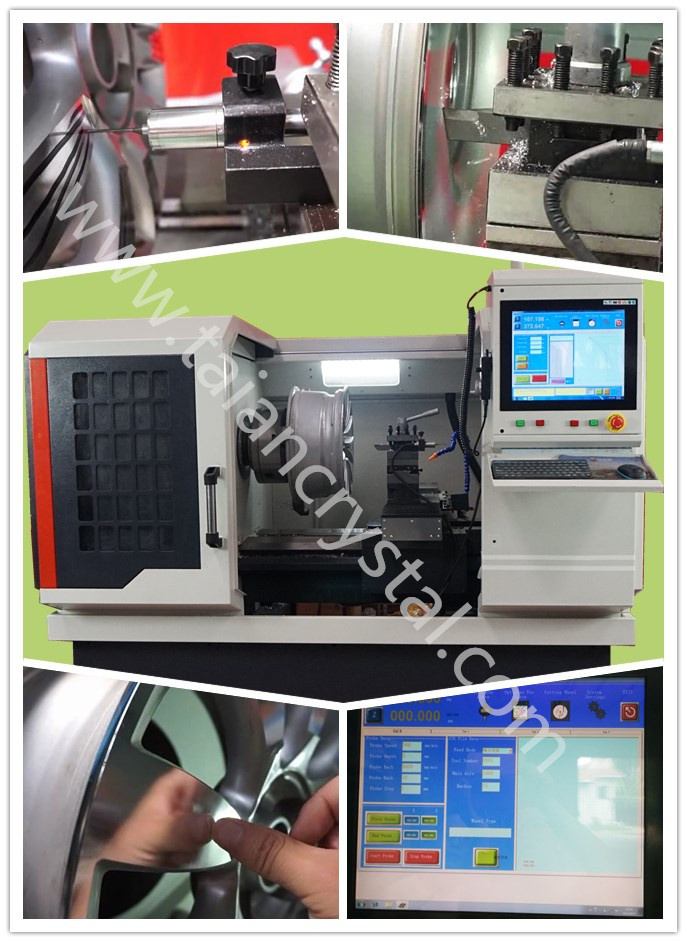

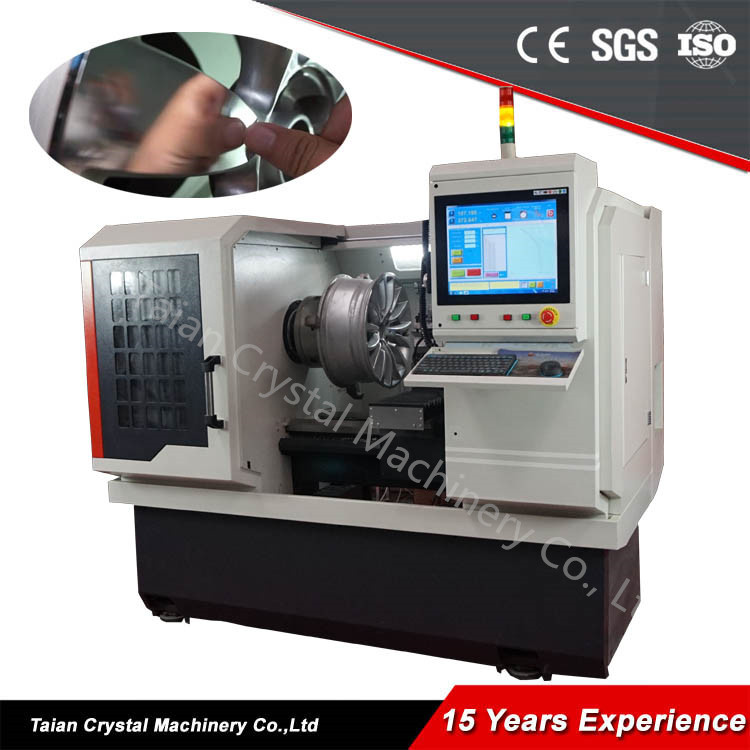

CNC Wheel Repair Machine Diamond Cut Alloy Wheel Repair Lathe
Standard configuration:1. Diamond Cutter 1 set;
2. 3-Jaws Chuck(With Special Soft Jaws)
3. Pioneer Sensing Probe TP300;
4. Taiwan SYNTEC CNC Control
5. Manual Quick Change Toolpost,Four-station;
6. Work Lighting System;
7. Automatic Lubrication System;
8. Cooling System;
9. Full Enclose(Security Guard Door);
10. Tools&Tool Box
11. Specific Digital Optimization Software;
12. Training Video CD;
Specifications
ITEMS | AWR28H |
| Max. swig over bed (mm)(inch) | Φ770 (30') |
| Max. Size of alloy wheel (inch) | Φ720 (28') |
| Adjustable stroke of carrier in X direction | 100mm |
| Cross slide travel (mm) | 390 |
| Width of the rail (mm) | 300 |
| Length of the rail (mm) | 1300 |
| Size of the three-jaw chuck (inch) | 12' |
| Range of spindle speed (RPM) | 50~2000 |
| Spindle speed control | Automatic |
| Spindle bore (mm) | Φ82 |
| Taper of spindle bore | 1:20(Φ90) |
| Max. size of tool post | 25×25mm |
| Stations of tool carrier | 4 position |
| Min. setting unit of motor | (Z) long 0.001mm,
(X) cross 0.001mm |
| Moving speed of post | (Z) long 8m/min,
(X) cross 6m/min |
| Motor power | 7.5KW |
| Mchine base(cast iron base) | Whole |
| Machine size | (L×W×H) (mm³) | 2140 ×1600×1860 |
| Package size | 2300×1750×2100 |
| Net weight | 2600kgs |
Company profile:Taian Crystal Machinery Co., Ltd., is a modern and high- tech company which is a
professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE
CENTER. With 5, 000sqm workshops and offices, we have more than 15 years
experiences in CNC machine research and production. Our machines have been
exported more than 40 countries. We welcome all customers and friends to come to our company!
Why choose us? 1. Choose of accessories: All of accessories of our CNC machine are from famous factory. Important parts are imported.
2. Advanced design: Professional R&D Team optimize and improve the design of
our machine.
3. Multi CNC system brand: GSK, SIMENSE, FANUC,SYNTEC can be supplied as your request.
4. Global strategy: our machines have been exported more than 40 countries and
win customer's high praise.
