Prod Model: |
HC-3200/400 |
Name: |
CNC Wood Cutting Sliding Table Saw |
Use: |
Woodworking |
Voltage: |
220V/380V |
Power: |
5.5kw |
Weight: |
820/940 Kgs |
Warranty: |
12 Months |
Dimension: |
3200*400*210mm |
After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Style: |
Horizontal |
Model Number: |
Hc-3200/400 |
Type: |
Table Panel Saw |
Layout: |
Horizontal |
Controlling Mode: |
Hydraulic Semi-automatic |
Automatic Grade: |
Semiautomatic |
Precision: |
High Precision |
Certification: |
ISO |
Product Description
Cnc wood cutting sliding table saw Main blade dimension | 350(400)mm |
Scoring blade dimension | 120*20mm |
Main blade speed | 3k/4k/5kRPM |
Scoring blade speed | 8500RPM |
Blade tilt | 45°-90° |
Max cutting height at 90° | 140mm(φ400mm) |
Max cutting height at 45° | 97mm(φ400mm) |
Sliding table dimension | 3200*400*210mm |
Main motor power | 5.5kw |
Scoring motor power | 1.1kw |
Blade lifting motor power | 0.12kw |
Weight | 930kg |
|

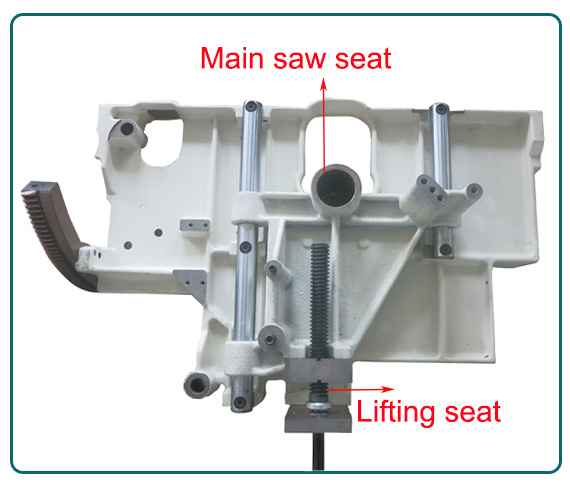

This part of precision casting, integrated processing. Expecially the integral processing of main saw seat and lifting seat can ensure the cutting precision. |

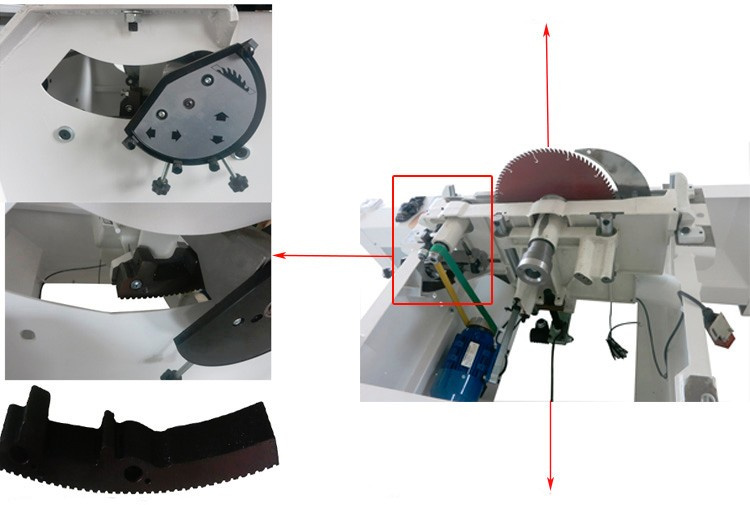

Sawing saw lifting and 45°cutting adjustment | Saw diameter:Max.400mm Cutting height:60-140mm Cutting precision:0.03-0.04mm |
|
The 45°deflection using turbine structure. The scoring saw can be lifted, so it can process solid wood and panel furniture. | Lifting screw, its located in the center of the gravity. Its directly driven by the motor, it can ensure the cutting accuracy and stability. |

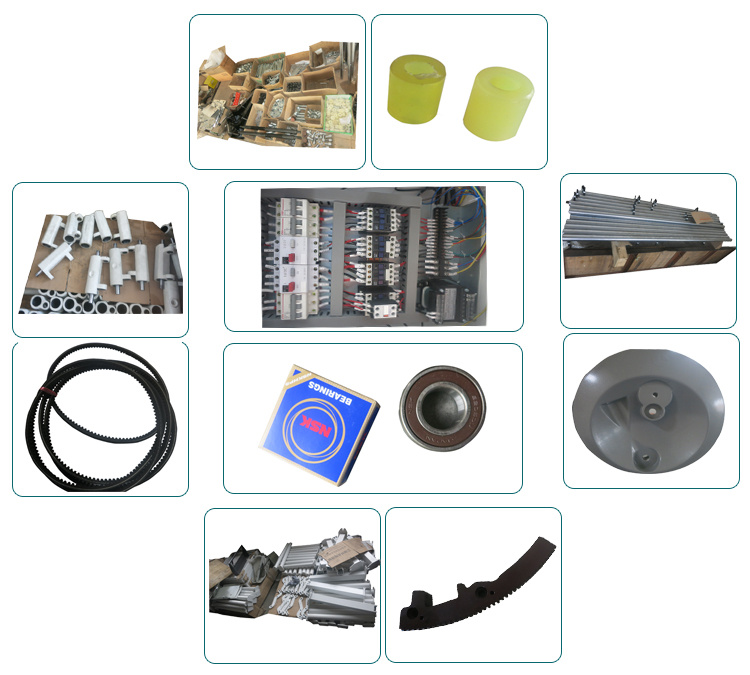

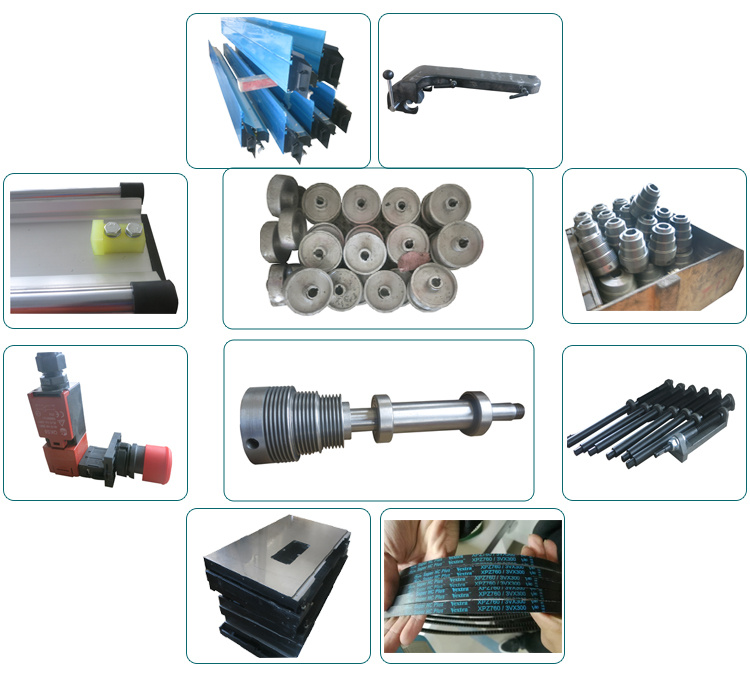

Spare parts:
Packaging and shipping: We choose the professional wooden packing company do the packing and do fastening,all machine packed with water-proof plastic as outer-protective.Ensure the machine well during the long transportation.
Packaging:sliding table saw coverd with plywood case.
Shipping:30 days after receiving the deposit.
Why choose us:

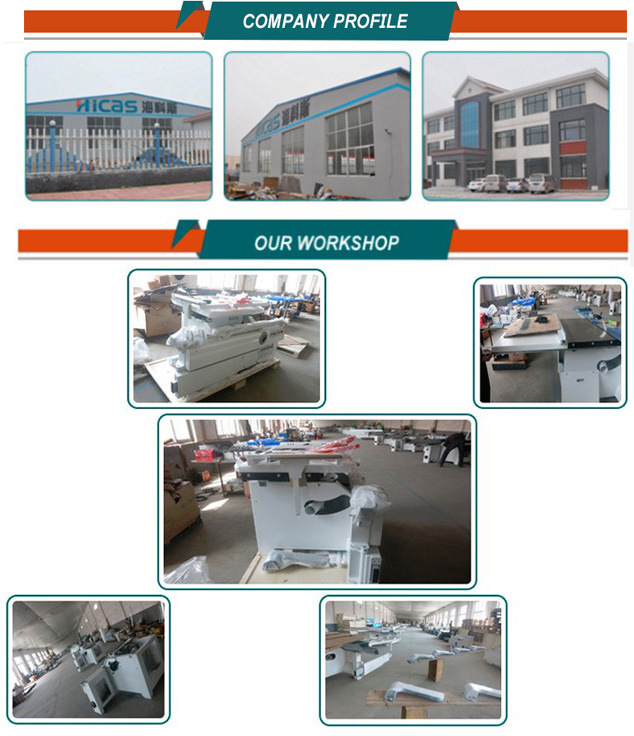

Qingdao High-Class Service Import & Export Co., Ltd. is located in the beautiful coastal Qingdao city, which is also famous for woodworking machinery. We are professional in providing Chinese leading woodworking machinery products, whole-factory solutions and excellent services.
Now, we are engaged in offering woodworking machinery, metalworking machinery, packing machinery,WPC machinery and corresponding spares parts and raw materials. Our company has own professional technical team to make sure the perfect import and export service system run well.
With years of experience, we have established long and strong business relationships with more than
10 professional distributors all over the world. We are the sole buying agent of customers from Russia, the Middle East, South Africa and Brazil. We always welcome partners to join us and develop the business together.
Under the guideline of "High Class Service", we would like to continue providing the best service for
customers who need machinery. In accordance with the principle of mutual benefit, we are going to have a pleasant corporation.
Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.
Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.
We have our own trade services company, currently has online service department, network development department and purchasing department.
We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
