| Prod Model: |
LZ-48A |
| Spindle: |
9kw /Italy |
| Controller: |
Taiwan Syntec Control System |
| Motor: |
Yaskawa Servo Motor |
| Reducer: |
Taiwan Planetary Reducer |
| Software: |
Type 3 /Artcam |
| Pump: |
5.5kw / 7.5kw Water Cooling Pump |
| Lubrication System: |
Included |
| Working Area: |
1300mm*2500mm |
| Z Height: |
200mm |
| Rail: |
Taiwan Linear Rail |
Product Description

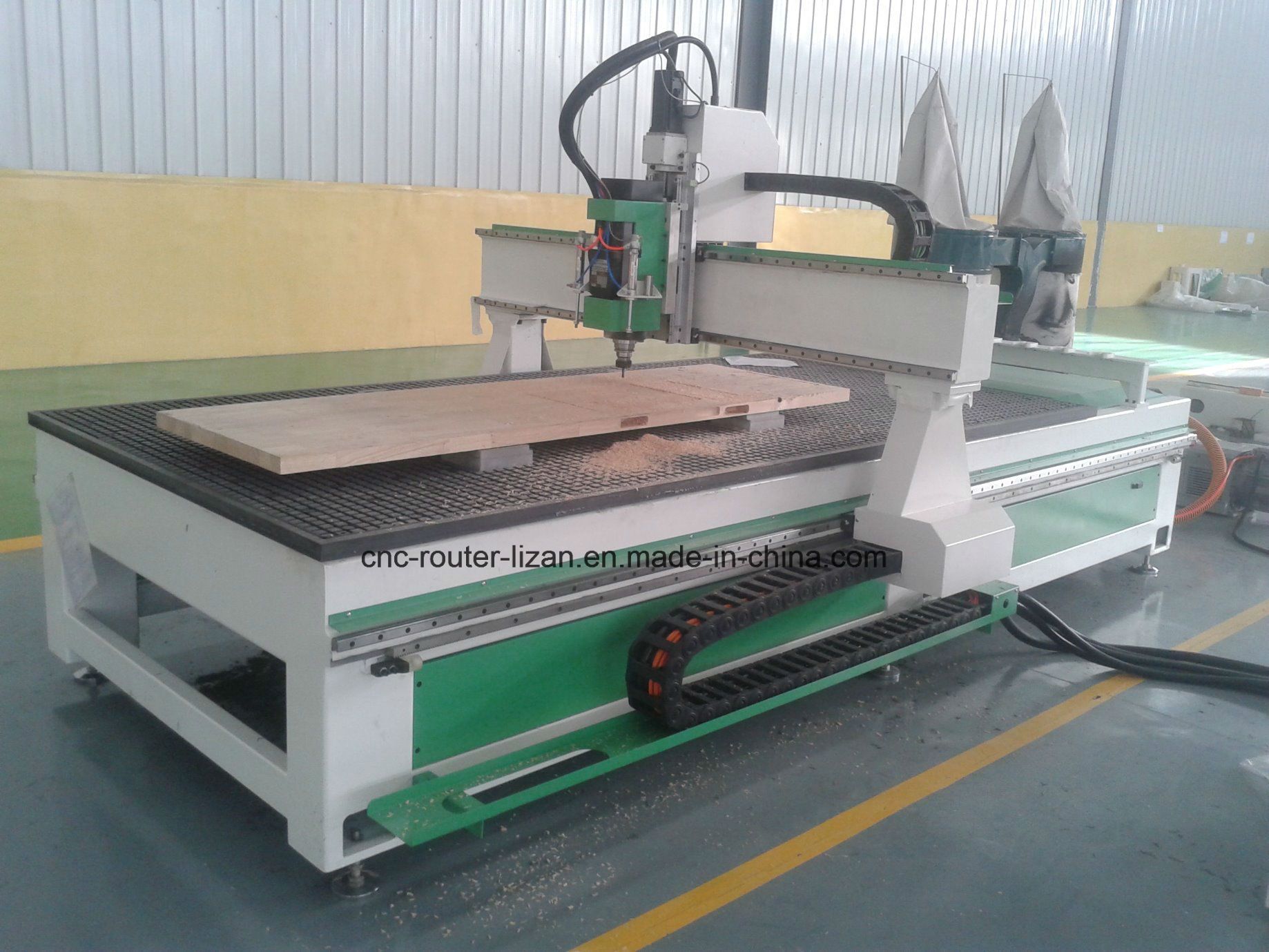

CNC Woodworking Machinery Tool
1, Taiwan's high-precision 25mm or 30mm linear guide.
2, Yaskawa servo motor and drive.
3, Taiwan Syntec control system, operating more convenient.
4, automatic tool changer system, more time-saving security.
5, imports spindle motor, to 18, 000 / min.
6, high adhesion vacuum absorption device, up to 230 cubic meters / hour.
| NO. Description | Parameter |
| 1 | Table size | 1600*3100mm |
| 2 | X, Y working area | 1300*2500mm |
| 3 | Z working area | 380mm |
| 4 | Processing precision | 0.02mm |
| 5 | Reposition precision | 0.05mm |
| 6 | Table structure | Vacuum table |
| 7 | X, Y, Z structure | Z ballscrew X, Y gearwheel |
| 8 | Self-consuming power | 2.8KW |
| 9 | Max ilding speed | 40000mm/min |
| 10 | Max working speed | 25000mm/min |
| 11 | Spindle power | 9KW / Italy |
| 13 | Working voltage | AC380V/50Hz |
| 14 | Spindle rotating speed | 0-24000rpm/min |
| 15 | Drive Motor | Japan servo motor |
| 16 | Operation system | Taiwan Syntec control system |
| 17 | Net weight | 1000kg |
| 18 | Gross weight | 2000kg |
Jinan DLM CNC Router Company with more than 5 years manufacturing experience in CNC non-metal computer machining center, and attachment technology research, machinery, parts procurement, production and assembly, software development, electric wiring, business sales, repair and after-sale service, etc. Owing abundant application experience and excellent technical team, can quickly resolve any technical issues about CNC equipment and provide the technical resources of CNC machining processing practice experience.
We offer a comprehensive range of highly-efficient products castering for the needs of different industrial sectors. All of our products feature solid structure, best quality components, superio machining techiques and complete reliability. We marketour products through a strong network extending to the whole world market, including but not limited to Russia, Australia, New Zealand, USA, Brazil, Middle East, South East Asia. Our machines are widely used in various industries, furniture manufacturing, electronic industries, construction industries, audio and musical instruments, stationary gifts, advertisenment engrave, mold, high-speed train, yacht and boats, aircraft industry, machine produce, etc.
