Cnm Full Hydraulic Crawler Anchoring Drilling Rig
| Price: |
US $ 7500-26000SET |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1SET |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
CNM-YGL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Yellow, Green, or as Per Your Requirement |
| Power: |
26kw, 67kw, 74kw |
| Drilling Hole Depth: |
50m to 250m |
| Drilling Head Feeding Stroke: |
1800-3500mm |
| Drill Head Max. Thrust Force: |
15kn, 30kn, 40kn, 45kn |
| Borehole Diameter: |
130mm to 250mm |
| Application: |
Slope, Tunnel, Buildings, Bridges, Dams, Ect. |
| Output Torque Of Drive Power Head: |
2500-7500nm |
| Warranty Time: |
15 Months |
| Performance: |
Good |
| Condition: |
New |
| Usage: |
Engineering and Construction |
| Power Type: |
Diesel or Electric |
| Type: |
Core Drilling Rig, Anchoring Drilling Rig |
Product Description
1. Speciafications

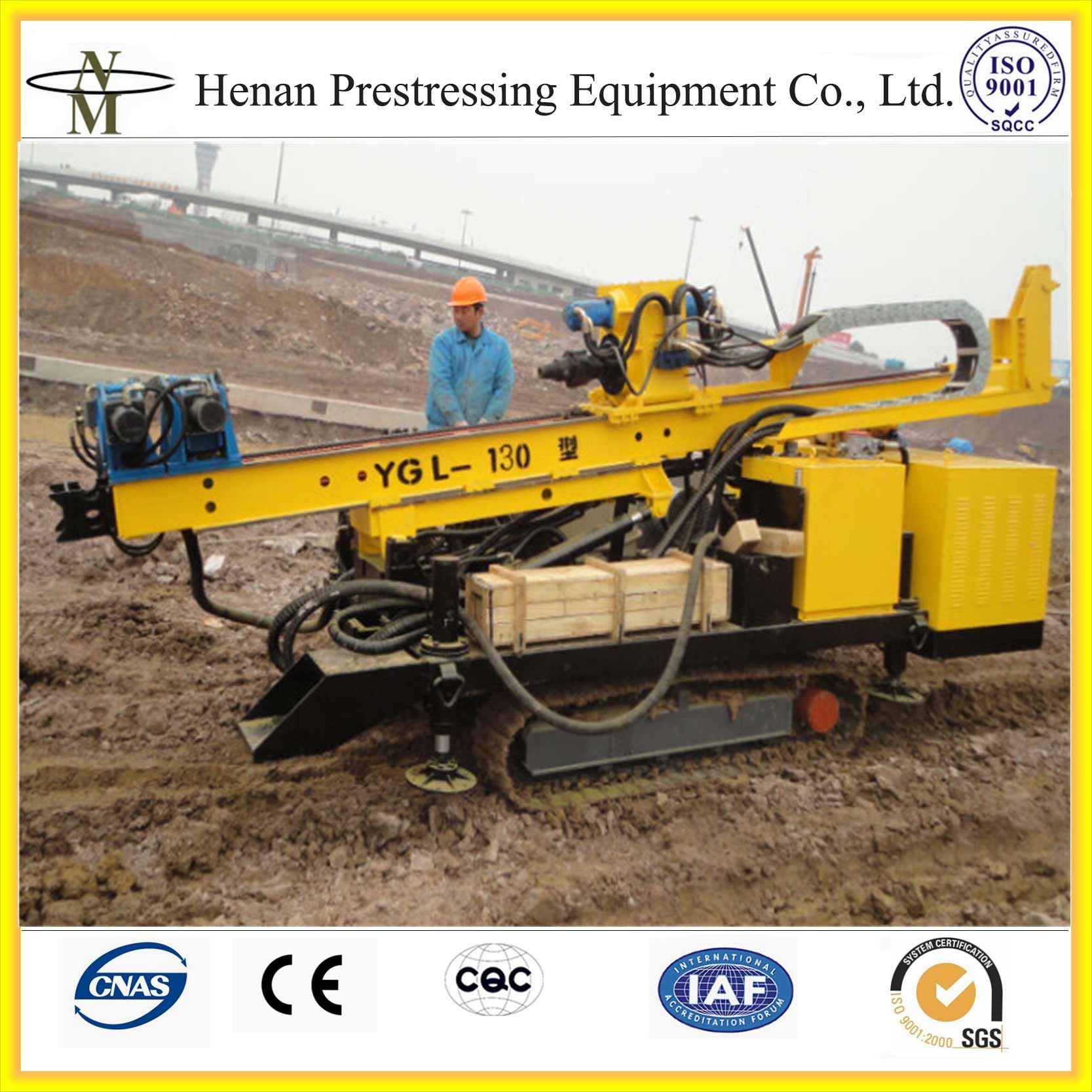

Full Hydraulic Crawler Anchoring Drilling Rig
2. Model: YGL-50, YGL-135, YGL-C130
3. Usage:Used for Anchor Drilling, Engineering Construction, ect.
4. Available for variety of drill techniques:
1. Dry auger------------------dry soil
2. DTH hammer-------------rock area
3. Mud casing drill---------sand or loosen area
4. DTH ODEX drill-----------gravel or broken rock area
5. Main Features for CNM-YG Series Full Hydraulic Crawler Anchoring Drilling Rig:
1). Strong drill ability, wide application, long stroke, fast drill speed, easy accidence, handling, high boring efficiency.
2). Drill head is available to change speed by gear or hydraulic. Satisfied with DTH hammer, casing following, casing drilling and carbide rotation and other various drill techniques.
3). Patent design of telescoping system in output shaft will effectively protect drill tools.
4). Machine installed a hydraulic clamping and breakout system in order to automatic wrench the drill pipe and tools. Both assistant time and lobar intensity are reduced during the drill work.
5). Crawler chassis with turning platform system, make it easy and rapidly to move and get hole position. To preferably select the parts from domestic and international well known brand products provides YGL-Series Drill reliable performance and long using life.
6). In this series, YGL series crawler drilling rig has level system(drill arm) is able to adjust mast in different angle and height without moving drilling rig. Specially for anchoring drilling in deep foundation basis.
6. Technial Data for YG Series Full Hydraulic Crawler Anchoring Drilling Rig:
Model
YGL-50Q
YGL-135B
YGL-130Q
YGL-150A
Borehole Depth (m)
50
130-250
100-200
130-250
Borehole Diameter (mm)
φ130-φ200
φ130-φ250
Recommend Drill Rod (mm)
φ89-1500
φ73×2000/3000; φ89-2000/3000; φ114-2000/3000
φ127-1500
(casing drill rod)φ127-2000; φ140-2000; φ168-2000
Drill Angle(°)
/
-95
-105
-95
Drill Head Rotary Speed(FR/RE)
40-98
21/42; 48/96; 35/70; 79/458
Output torque of drive power head(Nm)
2500
0-7500
0-7800
Drill Head Feeding Stroke(mm)
1800
Drill Head Max. Lifting Force(kn)
30
60
65
Drill Head Max. Thrust Force(kn)
15
40
45
Platform Turning Range(°)
/
360
-30-90
Electromotor Power(kw)
26
67
55
74
Drill Rig Weight(kg), appx
2000
5400
6500
8000
Over Dimension(m Drill Reduce Type)
3.85x1.45x2
6.3x2x2.5
6.3x2x2.3
6.5x2.2x3
7. FAQ:
Could you infoirm us more detail information as followings, so we can recommend you suitable equipment:
1. What is your required Driling Hole Depth and Drilling Hole Diameter?
2. What Voltage do you use?
3. Any other requirement?
Welcome to your inquiry!
