| Prod Model: |
SCU5070 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overstable Working: |
Invariable Laser Path(Patent of Sunic) |
| Laser Engraving Machine: |
Ce Standard |
| High Precision: |
Fast Engrave Speed |
| Table Type: |
Aluminum Strip/Honey Comb |
| Focus Lens: |
2.0inch |
| Mo Mirror Reflectivity: |
95% |
| Repeated Positioning Accuracy: |
+-0.025mm |
| Working Platform Size: |
500*700mm |
| Working Temperature: |
0-35 |
| Working Power: |
220V/50Hz/60Hz/2kVA, 110V/50Hz/60Hz/2kVA |
Product Description

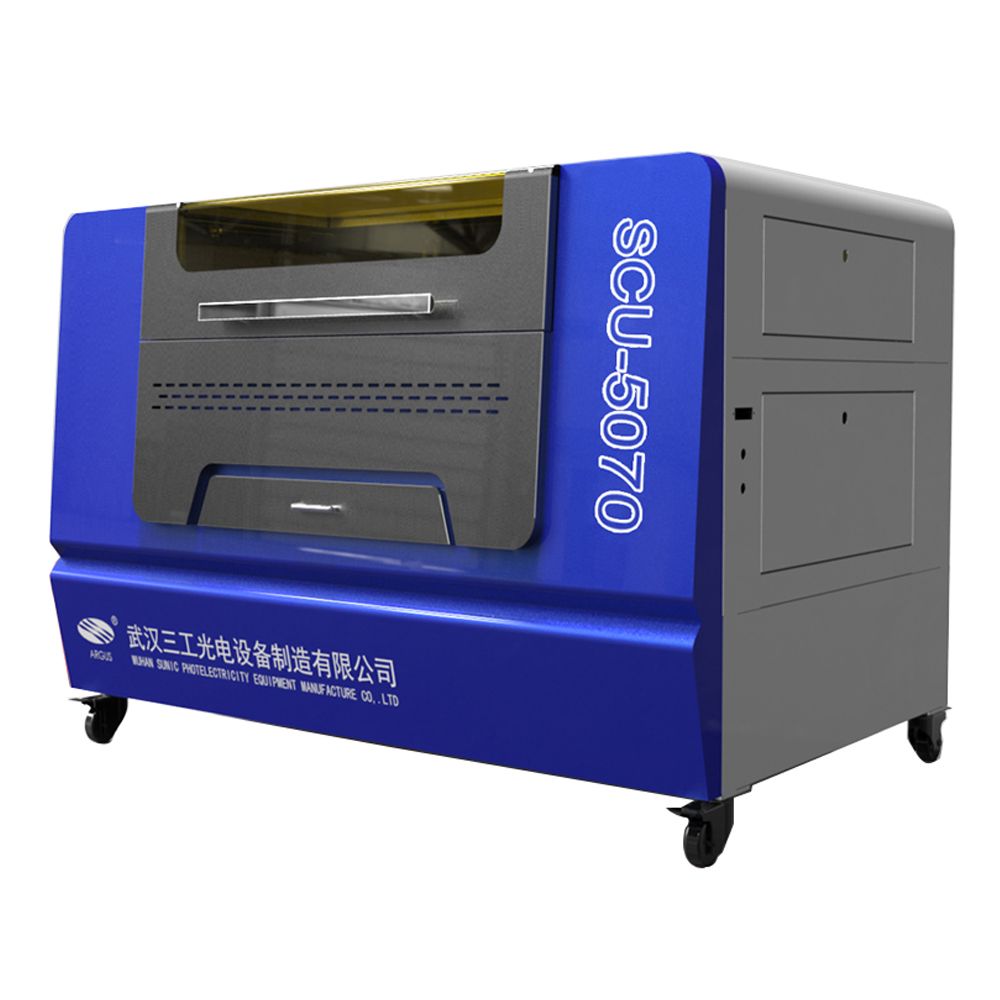

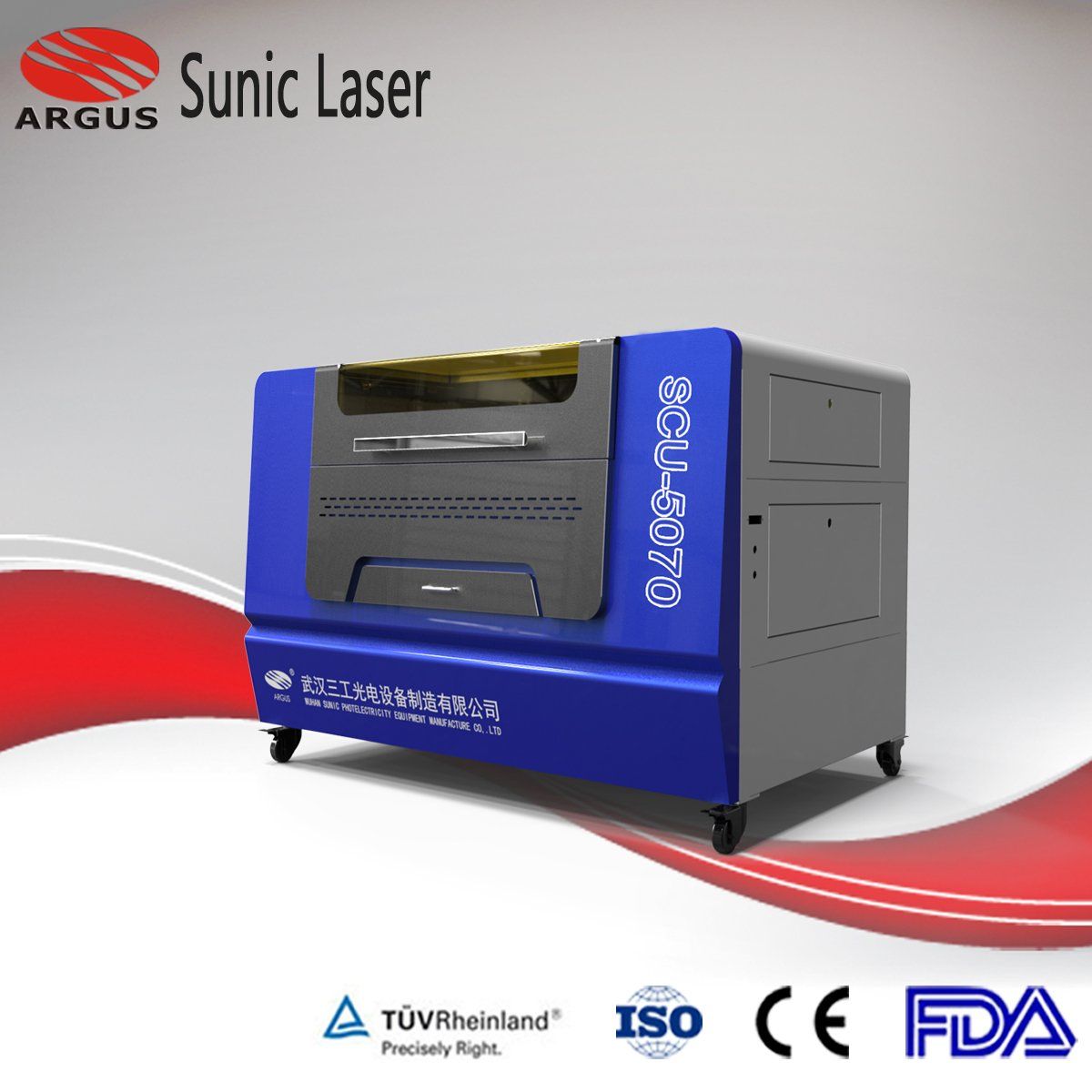

High Precision Vision Laser Cutting Machine For Toy Fabric Ribbon
*Designed for engraving nonmetals and painted metals.
*Unique designed engraving motion system with , providing efficiency work.
*Max.Practical Engraving Speed 1200mm/s.
*Multifunctional Red Light Indication, can be use to adjust optical path.
*High quality&frequency laser beam, spot diameter<0.2mm, more accurate.
*Metal RF laser tube, long lifespan, after inflation can be use again.
*Desktop type, can be set on the desk.
Technical Parameters
| Terms | Technical Parameters |
| Model | SCU5070 |
| Working platform size | 700*500mm |
| Power | 30/60w |
| Controlling system | RD System |
| Software | RDCAM |
| Drive | Stepper Motor Drive/Servo Motor Drive |
| Transmission | Belt Transmission/Ball Screw Transmission |
| Support format | PLT, BMP, DXF, T100, etc |
| Process Material | Nonmetals, Painted Metals |
| Idle speed | <=1200mm/s |
| Repeated accuracy | ≤±0.025mm |
| Min. line Width | 0.2mm |
| Cooling ways | Forced-air Cooling |
| Working temperature | 0-35°C |
| Working humidity | 5-95% |
| Working Power | 220V/50Hz/1.5kVA(Customized) |
| Auxiliary Equipment | Air pump, Exhaust Fan |
| Up & Down Table | 15cm adjustable, or customized |
| Optional configuration | Rotary Device |
| Dimension | 2185x1465x1260mm |
| Net weight | 60KG |
| Package | Standard Crate for export |
Samples:
Applicable Fields & Materials:
The machine is widely applied in the fine engraving, cutting and hollowing out on nonmetals with all kinds of characters, graphs, images, trademarks and so on.
*Handcraft industry. Plywood,Glass,Marble,Density board,Gifts,Trophy, Marks, Key chains.
*Furniture, Wood,Bamboo,MDF, Home textile, Seat Cushions,Ceramic.
*Advertising industry, Advertising plate, Acrylic, Plastic, PVC,Signs.
*Garment,Jeans,Leather,Chemical leather, Shoes material.
*Decoration, Paper Board,Organic glass,Vases,Derma.
*Model manufacturing.

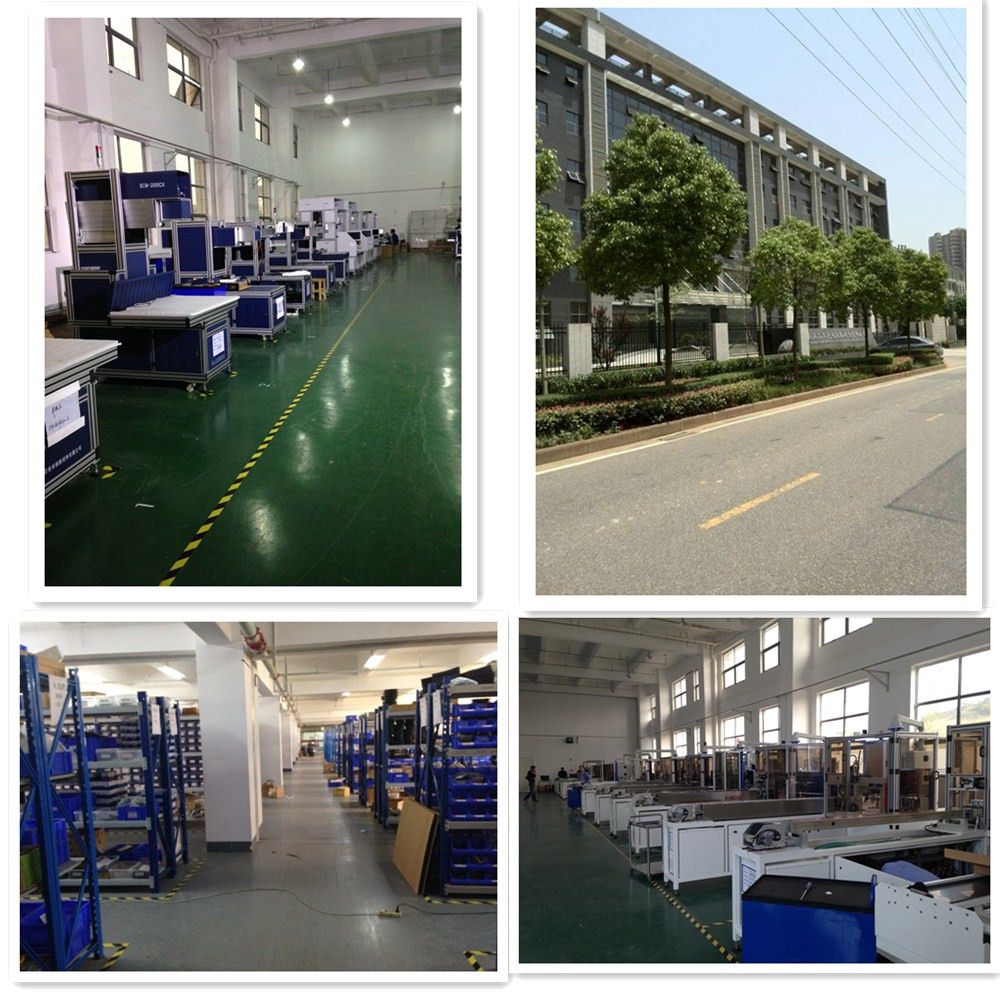

Company & Workshop
Wuhan Sunic Photoelectricity Equipment Manufacture Co.,Ltd (Sunic Laser) has been dedicated to the manufacturing of Laser equipments since 1998. We are specialized in designing, manufacturing as well as providing services for Laser processing machines and whole equipments for Solar PV production line. We offer complete solutions with Laser application for customers all over the world. Sunic Laser would like to be customer's technical consultant and support in Laser and solar equipments to make further development and progress together.
Our Certifications:
Our Service
Pre-sales Service:
1) According to customers demands, provide relevant technical guidance.
2) Assist customers to design and make laser cutting & engraving solutions considering technical feasibility.
3) Provide equipment demonstration for customers to investigate, make samples and do test, etc
After-sales Service:
1) 1 year warranty for laser machine and components;
2) Offer lifelong repair;
3) Engineers available to service machinery overseas.
4) Multi language service;
5) Offer 24 - hour technical support.
Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
The guarantee period shall be 1 year counting from the date on which the commodity arrives at the port of destination.
1) One year free maintenance, lifelong caring.
2) Free technical consultant and software updating.
3) Customer Service responding in 12hours.
4) Continuous support with software and hardware after free maintenance.
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory, and has been in the laser field for 20 years.
Q: How long is your delivery time?
A: Generally it is 3-7 days, it also depends on the machine model and quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge, but customers should pay the carrier cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Please feel free to contact us if you have any inquiries or questions. Thanks.
