| Prod Model: |
XH-HCF-12 |
| Speed: |
2900/2930/2950/2970r/M |
| Motor Power: |
15-90kw |
| Volume: |
1700-11411m³/H |
| Machine No.: |
6 Machine Number |
| Total Pressure: |
11590~21931 PA |
| Color: |
Blue/Yellow/Green/Customized |
| Customized: |
Design and Technical Drawing Can Be Customized |
| Accessory: |
Foundation Bolt/Nuts/Gaskets |
| Accessories: |
Foundation Bolt/Nuts/Gaskets/Coupling |
| Blade Material: |
Cast Iron |
| Electric Current Type: |
AC |
| Mounting: |
Free Standing |
| Certification: |
Appointed |
Product Description

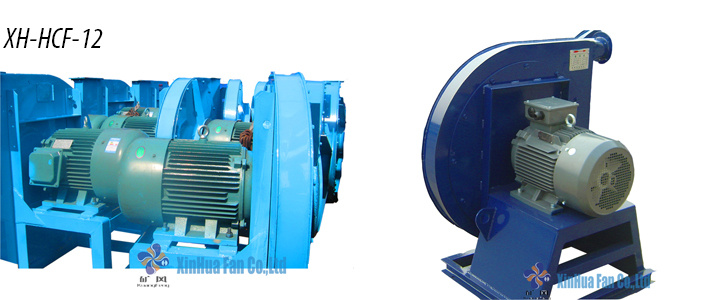

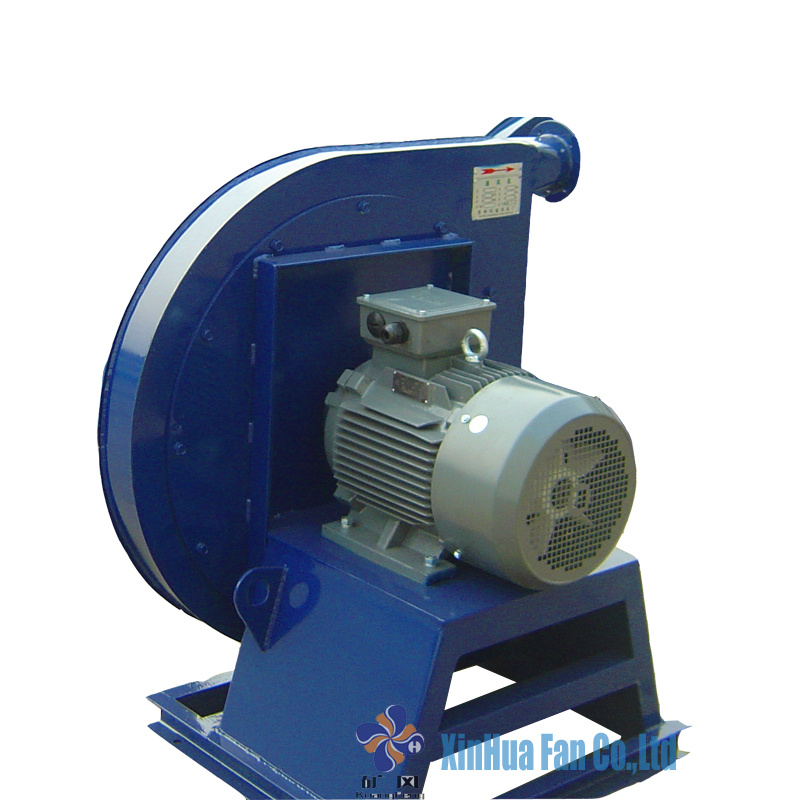

Usage XH-HCF-12 high-pressure centrifugal blower fanis a melting rate of 1, 2, 3, 5, 7t / h iron furnace supporting the special fan, it can also be used as transporting air and no corrosion, Non-spontaneous combustion, non-sticky material of the gas. in a variety of furnace,forging furnace blast., and can also be used with other similar performance. The transmission medium temperature should not exceed 80 ºC, the media contained in the dust and hard particles is not greater than 150mg / m3.
Model SeriesXH-HCF-12 type Centrifugal fans for furnace are single inhalation, № 6.8A, 7.1A, 7.4D, 7.7A, 8D, 9D totally six machine number.When you want to use this series of fans to transport the gas that is flammable, explosive, corrosive or temperature over 80 ºC, we are designed and manufactured for you before your order.Notes:
When you want to use this series of fans to transport the gas that is flammable, explosive, corrosive or temperature over 80 ºC, we are designed and manufactured for you before your order.Complete sets of supply
The overall structure: a fan, a foot bolt.
Part of the assembly structure: a fan, supporting a motor, a coupling, a foot bolt.
ParametersHSF-12 No6.8A, 7.1A, 7.4D, 7.7A, 8D, 9 Performance&Parts | Machine No. | Drive Mode | Speed r/min | Total Pressure Pa | Volume m³/h | Required
Power KW | Motor |
|
| Power |
|
| 6.8 | A | 2930 | 11590 | 1700 | 9.32 | 15 |
| 11820 | 2160 | 11.59 | |
| 12000 | 2620 | 13.57 | |
| 12140 | 3080 | 15.93 | 18.5 |
| 12120 | 3540 | 18.27 | |
| 11980 | 4000 | 20.55 | 22 |
| 11740 | 4460 | 22.6 | |
| 7.1 | A | 2900 | 12347 | 2074 | 12.1 | 15 |
| 12661 | 2658 | 15.02 | |
| 12807 | 3000 | 16.43 | 18.5 |
| 12896 | 3242 | 18.02 | |
| 13024 | 3826 | 21.14 | 22 |
| 12935 | 4410 | 24.3 | 30 |
| 12739 | 4990 | 27.65 | |
| 7.4 | D | 2900 | 13416 | 2349 | 14.88 | 15 |
| 13749 | 3010 | 18.47 | 18.5 |
| 14004 | 3371 | 22.16 | 22 |
| 14142 | 4332 | 25.99 | 30 |
| 14053 | 4993 | 29.89 | |
| 13838 | 5654 | 33.99 | 37 |
| 13465 | 6315 | 38.07 | 45 |
| Machine No. | Drive Mode | Speed r/min | Total Pressure Pa | Volume m³/h | Power KW | Motor |
|
| Power |
|
| 7.7 | A | 2930 | 14543 | 2349 | 15.81 | 22 |
| 14887 | 3010 | 19.6 | |
| 15171 | 3671 | 23.52 | 30 |
| 15319 | 4332 | 27.59 | |
| 15220 | 4993 | 31.72 | 37 |
| 14985 | 5654 | 36.07 | |
| 14583 | 6315 | 40.4 | 45 |
| 8 | D | 2950 | 16216 | 2996 | 22.97 | 30 |
| 16528 | 3824 | 28.24 | |
| 16931 | 4651 | 33.98 | 37 |
| 17096 | 5478 | 39.78 | 45 |
| 16931 | 6306 | 45.52 | |
| 16729 | 7133 | 51.83 | 55 |
| -16216 | 7960 | 57.84 | |
| 9 | D | 2970 | 20803 | 4295 | 42.24 | 45 |
| 21202 | 5481 | 51.93 | 55 |
| 21719 | 6667 | 62.48 | 75 |
| 21931 | 7853 | 73.15 | |
| 21719 | 9039 | 83.71 | 90 |
| -21461 | 10225 | 95.31 | |
| -20808 | (11411)) | 106.4 |
For more differeent machine No and specification,please check other XH-CF-13 series.Please be forgiven if there is any inconveniences occurred.Ordering instructionsWhen ordering, please specify the fan number, speed, air volume, wind pressure, outlet angle and direction of rotation, as well as motor model, power, speed and so on.
The most important factors are volume and pressure.Customized
When the exiting machine number, rotation, the wind angle and transmission mode can not meet the needs of users, we can design according to the fan similar theory and the user's specific parameters requirements.
Technical Support Service
When using our products, If any problems on installation,operation,maintainance..and so on, please contact our sale manager directly or leave a message on our website, we will call you in the first time.
Detailed Performance Catalog
Contact our sales manager to get a list of available fan sizes and to view detailed performance curves for each fan KuangFeng builds.

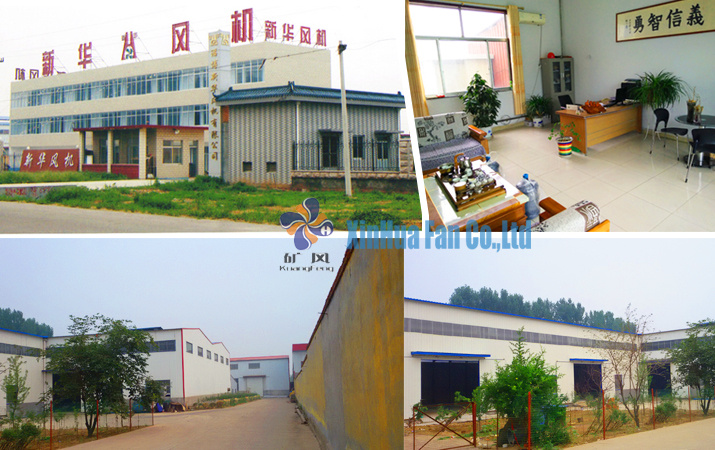

Company & Brand
KuangFeng centrifugal fan are built by Zibo Xinhua Fan Co.,Ltd. in Shandong, China. ZXF has served the mining and industries field for 24 years.Since 1993.
We understand the harsh environments in which fans are used. KuangFeng fans will meet and exceed the demands of your mine or tunnel project.
KuangFeng has a wide selection of fans available,has been able to produce more than 200 series, more than 1200 kinds of products.
Warmly welcome factories and various types of mines to choose mine series produced by our company-Zibo Xinhua Fan Co.,Ltd
Delivery & Package
Packing Details
FAQ
Q: What information do i need to provide in order to get a quotation?
A: Generally, information about Size,Air Flow,Voltage of required fans is needed in order to select a right fan for you and provide you a quotation.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage quantities increase, please provide the information to our sales. We will provide you a further discount.
Q: What is the warranty of products?
A: All of our products have 1 year warranty under normal usage. Every product has its own production code. This code is able to track the production time.
KuangFeng fans are built by Zibo Xinhua Fan Co., Ltd. In Shandong, China. XFC has served the mining and industrial field for 24 years.

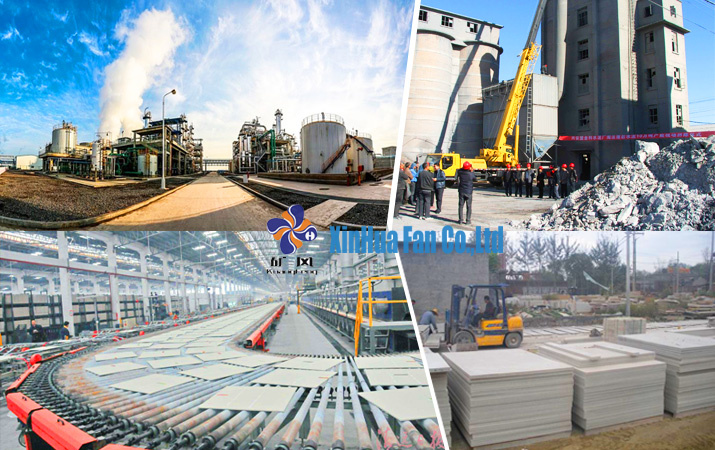

The factory was founded in 1993, we've been able to produce more than 200 series, more than 1, 200 kinds of products, cour factory covers an area of 12, 000 square meters. Products are widely used in boilers, workshops, mines, textiles, oil, chemical, kiln, metallurgy, building materials and other industries,
Our main products are mine fan, axial fan, open cotton fan, material transmission fan.
KuangFeng Fans has a wide selection of fans available, from 0.25 horsepower to 1120 horsepower and from 0.98 inch diameter to 11 inch diameter(impeller diameter). Contact us to get a list of available fan sizes and to view detailed performance curves for each fan KuangFeng builds.
KuangFeng Fan manufacture 200 series and more than 1, 200 kinds of industrial fans. All include heavy-duty designs for industrial applications. We manufacture axial fans, centrifugal fans, mine fans and miniature fans. All fans below 600mm(impeller size) are direct driven. All fans above 600mm are available in both direct driven or belt driven models. All models are available with cast aluminum, steel or stainless steel propellers. All models can also be manufactured in all aluminum or all stainless steel construction.
We understand the harsh environments in which fans are used. Jetair fans will meet and exceed the demands of your mine or tunnel project, other industrial factory.
We've created opportunities with good faith and work hard. We gradually establish a standardized production system, the quality of the quality of supervision and management system, seeking truth from work system, efficient service system, and strengthen the core competitiveness of enterprises. We're on the way strengthening our product of energy saving and environmental protection, reducing the consumption of research and development, our final goal is to improve the social benefits of enterprises!
