Coke Cutting Machine / Coke Cutter for Coking Plant and Steel Plant
| Price: |
US $ 10000-300000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
2PQJ |
| Type: |
Roller Crusher |
| Object: |
Coal |
| Drive: |
Electric |
| Crushing Degree: |
Intermediate Crusher |
| Crushing Style: |
Extruding and Milling |
| Principle: |
Roller Culling |
| Cutter Material: |
Hard Alloy |
| Finished Surface: |
Outer Surface Process |
| Compressive Strength (',For Crushing): |
<100MPA |
| Tongs' Features: |
Adjustable Tongs |
Product Description

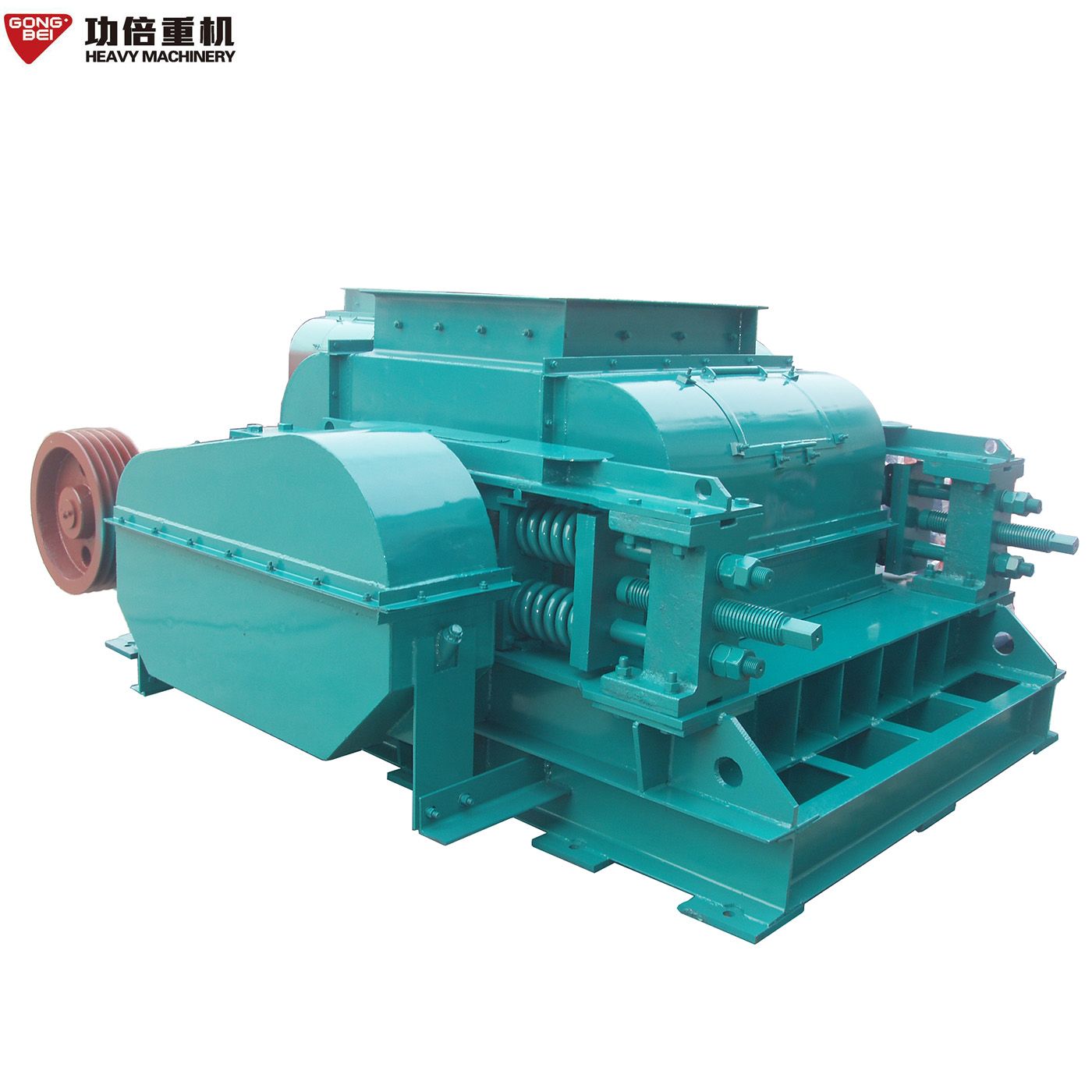

Introduction2PQJ coke cutter is mainly used for the processing of coke size in steel plant and coking plant. The processed coke lump features uniform particle size, it will increase air permeability and enhance the coefficient of blast furnace to save coke.Unique structure features1. Tight correspondence between long and short blade-shaped teeth, different rotary speed of tooth rollers, effectively reduce overcrushing
2. Gear linkage, stable operation, low noise level, small vibration, no gear broken
3. Relative speed between the two rollers for their different speeds, unique transmission system guarantees the best joggle condition all the time
4. Easy stepless adjustment of particle size without power-off according to the wear condition of teeth and coke particle size

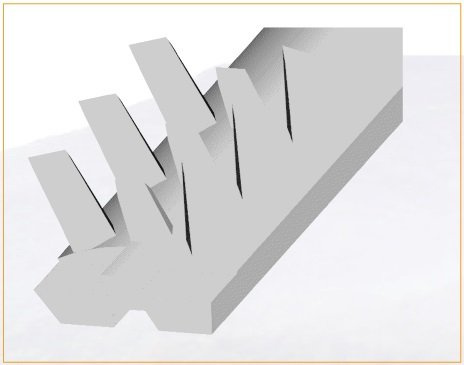

5. Wear resistant blade-shaped crushing plate, impact resistance
6. Special design of gear box adopts thin oil lubrication to avoid damage by coke dust
7. Easy maintenance, long service life up to 30 yearsAdvantages1. Uniform particle size: coke lump from 20-80mm accounts for more than 85%, more than 10% less coke powder production than that of double-tooth-roller , higher production yield
2. Enhance coke strength: no tiny crack
3. Advanced structure, easy operationParameters | Specification | Input size (mm) | Discharge size rage (mm) | Capacity
(t/h) | Motor power
(kW) | Weight
(kg) | Dimension
(mm) |
| 2PQJ-45 | <200 | 20-80 | 10-20 | 11 | 3800 | 2570*1640*820 |
| 2PQJ-60 | <250 | 20-40 | 15 | 5700 | 3226*1980*1110 |
| 2PQJ-80I | <350 | 50-80 | 22 | 8600 | 3842*2265*1401 |
| 2PQJ-80II | 80-100 | 30 | 11000 | 3842*2565*1401 |
| 2PQJ-10I | 100-120 | 45 | 15800 | 4819*2887*1450 |
| 2PQJ-10II | <450 | 120-150 | 55 | 18500 | 4819*2862*1450 |
| 2PQJ-10III | 150-200 | 75 | 24000 | 4819*3210*1450 |
| 2PQJ-12I | 200-250 | 90 | 29000 | 3600*3250*1750 |
| 2PQJ-12II | 250-300 | 110 | 33000 | 3600*3900*1750 |
| 2PQJ-12III | 300-350 | 160 | 38000 | 3600*4500*1750 |
Why choose GONGBEI products?1. More than 40 years of technical research and development of material screening and crushing
2. The best R&D and technical personnel with the most achievements in screening and crushing fields
3. With various experiment database for then thousand materials
4. Entrusted National Inspection Center as third inspection party to ensure quality
5. Professionial aftersales service team Solutions of crushing and screening technologies 1. Packaged technology for crushing and screening of material ranging form 0.1mm to 1000mm, equipment selection and development & manufacture.
2. Technology and equi0pments for crushing and screening of dry, wet and sticky materials, as well as technical upgrading service.
3. Patented technology and equipments for ultrafine grinding and crushing of material that is less than 3mm
4. Customized design and equipments dedicated for intelligent clean power generation, intensive coal separation, clean coal technology, fine chemical engineering, green mining, soil remediation, soil waste disposal and other materials handling etc..
Shijiazhuang Gongbei Heavy Machinery Limited Company grew out of Shijiazhuang Mining Machinery institute of Ministry of Machinery which was established in 1976. It's engaged in mineral screening and crushing and consisted of National Supervision and Inspection Center, Intelligence Bureau of Industry Technology, National Standard Research Office, Ministerial level Test Site and other various professional technical laboratory for screening, crushing, classification grinding, superfine grinding and vibrating machine etc...In 1996, the institute was converted into a modern corporate enterprise. We have developed a series of independent intellectual property rights of industry-leading products including material transportation, screen, crusher, grinder and classification and provided world class technology projects and machinery to industrial and mining enterprises in China and abroad.
Advantages
1. More than 40 years of technical research and development
2. The best R&D and technical personnel with the most achievements in crushing and screening filed.
3. With various equipments of different working principles for crushing & screening and experiment database for ten thousands materials.
4. Entrusted National Inspection Center for small and middle-sized mining equipments as third party inspection unit to ensure quality.
5. Professional aftersales service team.
Solutions of crushing and screening technologies
1. Packaged technology for crushing and screening of material ranging form 0.1mm to 1000mm, equipment selection and development & manufacture.
2. Technology and equi0pments for crushing and screening of dry, wet and sticky materials, as well as technical upgrading service.
3. Patented technology and equipments for ultrafine grinding and crushing of material that is less than 3mm
4. Customized design and equipments dedicated for intelligent clean power generation, intensive coal separation, clean coal technology, fine chemical engineering, green mining, soil remediation, soil waste disposal and other materials handling etc...
Enterprise culture
• Mission: Solutions to all crushing & screening problems;
• Value: Great achievements with win-win results
More achievements with less effort
• Spirit: Spirit of "alloy steel" ------
• Tenacious, Fearless,
• Share of weal and woe, Struggle together for success.
