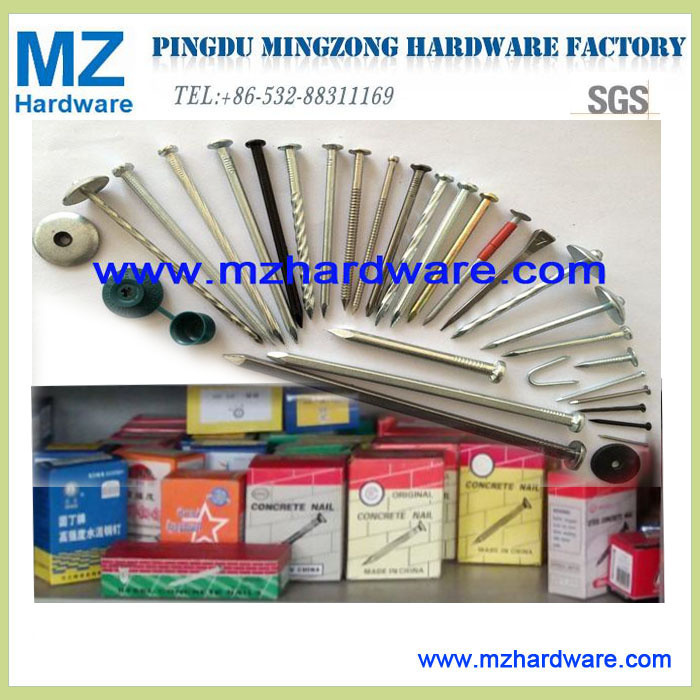

Common Nails, Roofing Nails, Finish Nails, Coil Nails, Shoe Tacks, Horseshoe Nails, Concrete Nails
Price: |
US $ 500-750/Ton |
Trade Terms: |
FOB,CIF |
Min Order: |
5/Ton |
Pay Type: |
L/C,T/T,Western Union,Money Gram |
Prod Model: |
BWG3-20 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Shank: |
Smooth, Twisted, Ring, Spiral |
Shank Dia.: |
2-5mm |
Length: |
10-200mm |
Finish: |
Galvanized/Hot Dipped/Colorful Plating/Red/Blue |
Product Description
Roofing Nails
Type: Umbrella Head Roofing Nails
Materials: Q195,Q235 or according to your request.
Head: Umbrella head with or without a washer.
Shank: Smooth shank/Straight shank, twisted shank/Spiral shank (ring shank).
Point: diamond point
Shank Diameter: 9BWG~13BWG.
Length: 1.5",1.75 ",2",2.5",3",3.5",4" or according to your request.
Treatment: bright(polished) or galvanized or according to your request.
Standard Packing: 7LBS 8Boxes/CTN, 25Kgs/Bag,50Kgs/Gunny Bag,1000CTNs/20GP
Application: Roofing nails are widely used for roof installation, fastening roofing felt, roofing flashing, woodworking or other construction industry fields.
Specification | Length (mm) | Shank Diameter (mm) | Head Diameter (mm) |
BWG 8*2" | 50.8 | 4.19 | 20 |
BWG 8*2-1/2" | 63.5 | 4.19 | 20 |
BWG 8*3" | 76.2 | 4.19 | 20 |
BWG 9*1-1/2" | 38.1 | 3.73 | 20 |
BWG 9*1-3/4" | 44.5 | 3.73 | 20 |
BWG 9*2" | 50.8 | 3.73 | 20 |
BWG 9*2-1/2" | 63.5 | 3.73 | 20 |
BWG9*3" | 76.2 | 3.73 | 20 |
BWG10*1-3/4" | 44.5 | 3.37 | 20 |
BWG10*2" | 50.8 | 3.37 | 20 |
BWG10*2-1/2" | 63.5 | 3.37 | 20 |
BWG11*1-1/2" | 38.1 | 3.02 | 18 |
BWG11*1-3/4" | 44.5 | 3.02 | 18 |
BWG11*2" | 50.8 | 3.02 | 18 |
BWG11*2-1/2" | 63.5 | 3.02 | 18 |
BWG12*1-1/2" | 38.1 | 2.74 | 18 |
BWG12*1-3/4" | 44.5 | 2.74 | 18 |
BWG12*2" | 50.8 | 2.74 | 18 |
BWG13*1-3/4'' | 44.5 | 2.41 | 15 |
Common nails Materials: Q195,Q235
Head: Flat head common nails
Shank: smooth shank
Point: diamond point
Shank Diameter: 4BWG~20BWG.
Length: 3/8"to 7" or according to your request.
Treatment: bright or galvanized finishes are available.
Standard Packing: 7LBS 8Boxes/CTN, 25Kgs/Bag,50Kgs/Gunny Bag or according to your request.
Application: Common nails are widely used for woodworking, carpentry and framing and construction industry.
Length | Shank Diameter | Weight (kg) /1000 Pcs | Approx.PCS /1kg |
Inch | mm | BWG | mm |
3/8 | 9.52 | 20 | 0.89 | 0.046 | 21730 |
1/2 | 12.70 | 19 | 1.07 | 0.088 | 11360 |
5/8 | 15.87 | 18 | 1.25 | 0.152 | 6580 |
3/4 | 19.05 | 17 | 1.47 | 0.52 | 4000 |
1 | 25.40 | 16 | 1.65 | 0.42 | 2980 |
1-1/4 | 31.75 | 15 | 1.83 | 0.65 | 1540 |
1-1/2 | 38.10 | 14 | 2.11 | 1.03 | 971 |
1-3/4 | 44.45 | 13 | 2.41 | 1.57 | 637 |
2 | 50.80 | 12 | 2.77 | 2.37 | 422 |
2-1/2 | 63.50 | 11 | 3.05 | 3.58 | 279 |
3 | 76.20 | 10 | 3.40 | 5.35 | 187 |
3-1/2 | 88.90 | 9 | 3.76 | 7.65 | 131 |
4 | 101.66 | 8 | 4.19 | 10.82 | 92.4 |
4-1/2 | 114.30 | 7 | 4.57 | 14.49 | 69.0 |
5 | 127.00 | 6 | 5.16 | 20.53 | 48.7 |
6 | 152.40 | 5 | 5.59 | 28.93 | 34.5 |
7 | 177.80 | 4 | 6.05 | 40.32 | 24.8 |
Finishing NailsPenny Size | Length (inch) | Gauge No. | Head Dia.(inch) | Approx.PCS/LB |
2d | 1 | 16-1/2 | 0.086 | 1.473 |
3d | 1-1/4 | 15-1/2 | 0.099 | 880 |
4d | 1-1/2 | 15 | 0.1055 | 630 |
5d | 1-3/4 | 15 | 0.1055 | 535 |
6d | 2 | 13 | 0.135 | 288 |
7d | 2-1/4 | 13 | 0.135 | 254 |
8d | 2-1/2 | 12-1/2 | 0.142 | 196 |
9d | 2-3/4 | 12-1/2 | 0.142 | 178 |
10d | 3 | 11-1/2 | 0.155 | 124 |
12d | 3-1/4 | 11-1/2 | 0.155 | 113 |
16d | 3-1/2 | 11 | 0.162 | 93 |
20d | 4 | 10 | 0.177 | 65 |
30d | 4-1/2 | 9 | - | - |
40d | 5 | 8 | - | |
Steel Concrete NailsNail Dia. × Length (mm) | weight Kg /1000 pcs | Nail Dia. × Length (mm) | weight Kg /1000 pcs |
1.2 × 20 | 0.183 | 2.0 × 50 | 1.19 |
1.2 × 25 | 0.219 | 2.5 × 50 | 1.87 |
1.4 × 25 | 0.302 | 2.5 × 60 | 2.23 |
1.4 × 32 | 0.385 | 3.0 × 70 | 3.77 |
1.4 × 40 | 0.482 | 3.0 × 80 | 4.33 |
1.6 × 25 | 0.397 | 3.5 × 90 | 6.60 |
1.6 × 40 | 0.633 | 4.0 × 100 | 9.50 |
1.8 × 32 | 0.640 | 4.0 × 120 | 11.50 |
1.8 × 40 | 0.787 | 5.0 × 120 | 17.80 |
1.8 × 50 | 0.967 | 5.0 × 150 | 21.90 |
1.8 × 60 | 1.160 | 6.0 × 150 | 32.40 |
2.0 × 40 | 0.949 | 6.0 × 200 | 43.10 |
PINGDU MINGZONG HARDWARE FACTORY was founded in 2012 in Qingdao, China. Our factory covers an area of over 10, 000 square meters and employed nearly 50 people with annual productivity more than 10, 000 tons.
PINGDU MINGZONG HARDWARE FACTORY provides fastener products and services worldwide. Our company's manufacturing specialize in all kinds of nails and iron wires that including Common nails, Concrete nails, Clout nails, Finishing nails, Horseshoe nails, Shoe tacks, Panel Pins, Roofing nails, Roofing Twisted nails, U type nails, Annealed wires, Galvanzied wires, Barbed wires and Razor wires.
By providing quality parts with competitive pricing and consistent excellent services, we have earned our customers' trust developing strong partnerships.
Our advantage:
High quality
Competitive price
Fast delivery
Best service.
To learn more about how we can meet your needs most anywhere in the world, Please feel free to contact us.
