| Prod Model: |
JQL-10/600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Speed Of Spindle: |
>=6000 R/Min |
| Rated Pressure: |
<=0.7 MPa(101.5 Psi) |
| Rated Flow: |
<=1000 L/Min(35.3 Cfm) |
| Max. Bar Length: |
430mm |
| Max. Cutting Depth: |
400mm |
| Noise Level: |
<=120 dB(a) |
| Water Pressure: |
0.2-0.56 MPa |
| Explosion Protection: |
Exibd I |
| Weight: |
10kg. (Without Bar and Chain) |
| Working Style: |
Cuting |
| Type: |
Saw |
| Power: |
Air Bottle, Air Motor or Other Compressed Air |
Product Description
Applications:

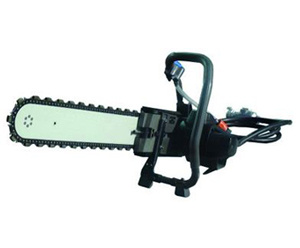

Cut with ease, speed and portability through Reinforced Concrete, Brick, Block, Concrete Pipe and Natural Stone. The powerful JQL-10/6000 pneumatic chain saw is designed to cut through walls, floors and columns in a single pass.
The unique versatility of a concrete cutting chain saw includes the ability to cut small mechanical openings, deep plunge cuts (up to 40cm deep), perfect corners and an endless variety of irregular shapes that are simply not possible with circular saws.
While other folks are cutting with ordinary saws, you can be cutting faster, cheaper and more reliably with the JQL-10/6000 pneumatic chain saw.
Key features:
L High torque output for tough cutting jobs
L Specifically designed for the demanding requirements of professional sawing and drilling contractors
L Safety operating trigger prevents accidental starting
L Now with Diamond chain - optimized for use with pneumatic saws
L Deep plunge cuts - up to 40cm deep
L Perfect square corners up to 200mm× 100mm with no overcuts
L Operation from a distance up to 200m
L Cut mechanical openings and irregular shapes
L Durable industrial finish on die-cast aluminum body stands up to harsh environments
L Built-in Wallwalker provides leverage advantage to make cutting easier
L Modular design for easy service
L Reliable and easy to maintain - No belts, carburetors or fuel lines to maintain
L Stretch Reduction System (SRS) maximizes chain life and reduces need for adjustments
L No gas or engine fumes to deal with
L Low cost of operation - Pays for itself every time you use it with faster cutting and completion of most jobs in a fraction of the time other saws would take
Accessories:
Diamond chain saw, 1unit
Saw guide bar, 1piece
Air hose, 20m
Water tank, 1
Diamond chain, 2 for hard rock
Diamond chain, 2 for incompact object
Carrying case, 1
| Rated speed of spindle | ≥6000 r/min |
| rated pressure | ≤0.7 Mpa(101.5 PSI) |
| rated flow | ≤1000 L/min (35.3 CFM) |
| Power | air bottle , air motor or other compressed air |
| Max. bar length | 430mm |
| Max. cutting Depth | 400mm |
| Noise level | ≤120 dB(A) |
| Water pressure | 0.2-0.56 Mpa |
| Explosion protection | Exibd I |
| Weight | 10kg. (without bar and chain) |
Beijing Topsky Century Holding Co., is a professional large-scale manufacturer of all types coal mine safety equipment and fire fighting equipment, integrating development and production together. Our main products include portable gas detector, Ventilation Meter, breathing apparatus, Oxygen Self-Rescuer, Water mist system, Pneumatic Chain Saw and related products. Established in 2003, we have many years of history in the coal mine and fire fighting industry. Located at Beijing, we enjoy convenient water, land and air transportation.
Our company employs many experienced technical and management personnel. Through the efforts of all staff, we have become a special safety equipment manufacturer. All of our staff have continuously tried to improve product quality and service for the user's safety.
Currently, our product was already exported to America, France, Australia, Italy and 20 other countries and regions. Our company has always focused on research, development and innovation. We attained ISO9001 quality management system certificate.
Our company has initiated the new phase of our development strategy. Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us for future business relationships and achieving mutual success!
