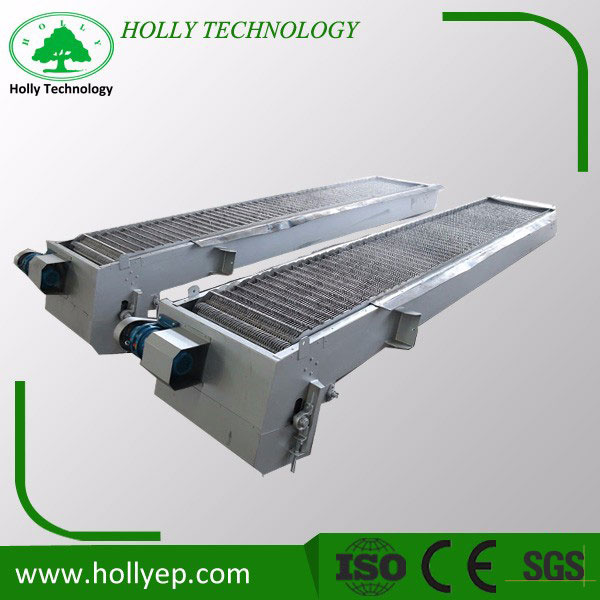

Mechanical trash rake bar screen for Sewage Treatment is a kind of advanced solid-liquid separation device in water treatment, which can continuously and automatically remove debris from wastewater for sewage pretreatment. It is mainly used in municipal sewage treatment plants, residential quarters sewage pretreatment devices, municipal sewage pumping stations, waterworks and power plants, also it can widely be applied to water treatment projects of various industries, such as textile, printing and dyeing, food, fishery, paper, wine, butchery, curriery etc.

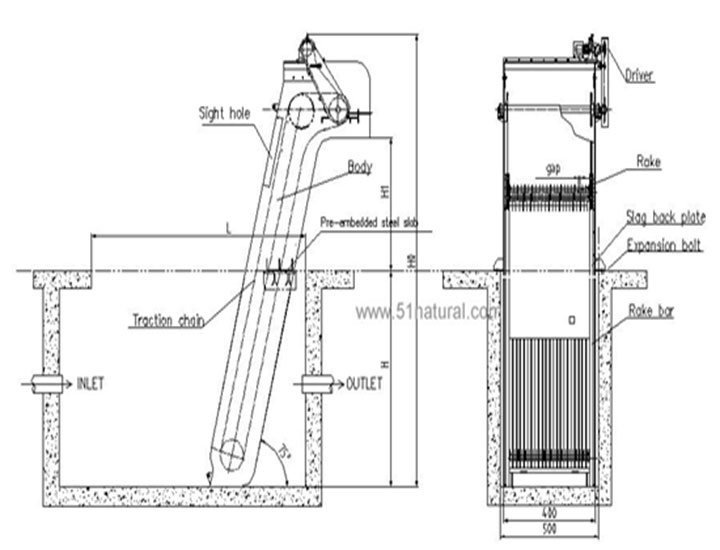

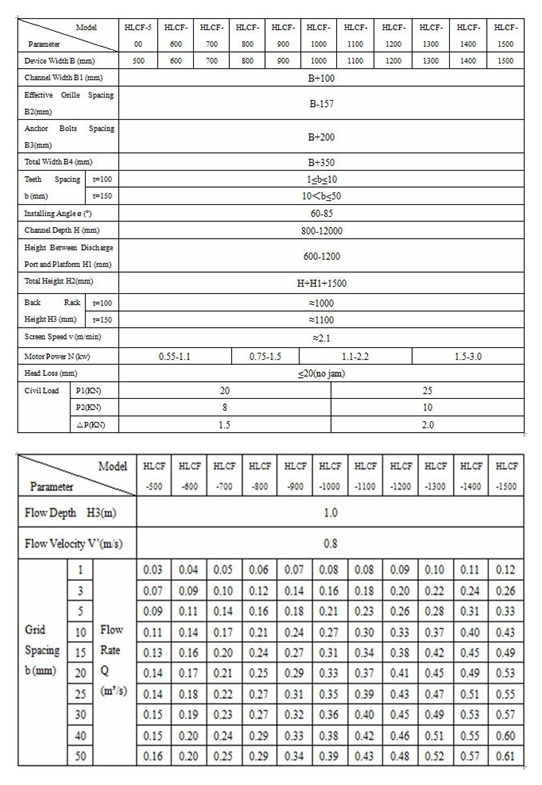

Technical Parameters
Features
♦ The driving unit is directly driven by cycloidal gear reducer or helical gear reducer which shows the nature of working stability, low noise, big load capability and high efficiency in conveying. ♦ Simple structure with compact size, easy to install and move. Device can self-clean up while working, easy to maintain. ♦ Easy to operate, can be controlled directly on the spot or remote. ♦ Include overload protection device, machine will shut down automatically when malfunction happens to avoid damage. ♦ When the device width exceeds 1500mm, will be made into parallel machine to ensure the overall strength.
Ordering Information Please provide us with: 1. volumetric flow rate 2. lifting height 3. total amount of solid - liquid separation 4. shape and size of the separated substance for material selection of the rake 5. width and depth of the ditch

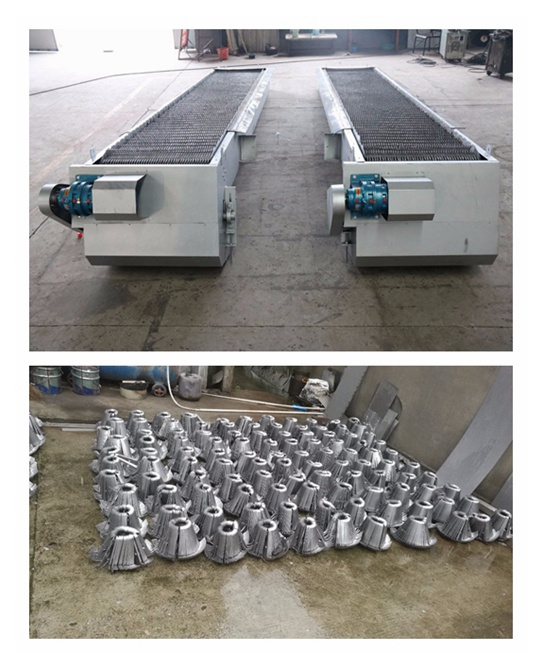

Packing
Certificate
About Us
Yixing Holly Technology Co., Ltd.is located in Yixing, Jiangsu Province, China. Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipments and parts used for sewage treatment. Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation service of sewage treatment equipments.
Yixing Holly Technology Co., Ltd is located in Yixing, Jiangsu Province, China. Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipments and parts used for sewage treatment.
Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation service of sewage treatment equipments.
