| Prod Model: |
W-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Line Array Speaker |
| Size: |
2X12" Lf, 4X6.5 Mf, 2X3 Hf |
| Frequency Response: |
52Hz-20kHz 3dB |
| Sensitivity: |
Lf104dB, Mf107dB, Hf111dB |
| Power: |
(RMS)Lf2X600W, Mf600W, Hf200W |
| Material: |
Neodymium |
| Finish: |
Water-Proof,Birch Plywood |
| Net Weight: |
60kg |
| Dimension: |
1100X405X595mm(Wxhxd) |
| Warranty: |
Two Years Free Warranty |
| Application: |
Commercial |
| Certification: |
MET |
Product Description

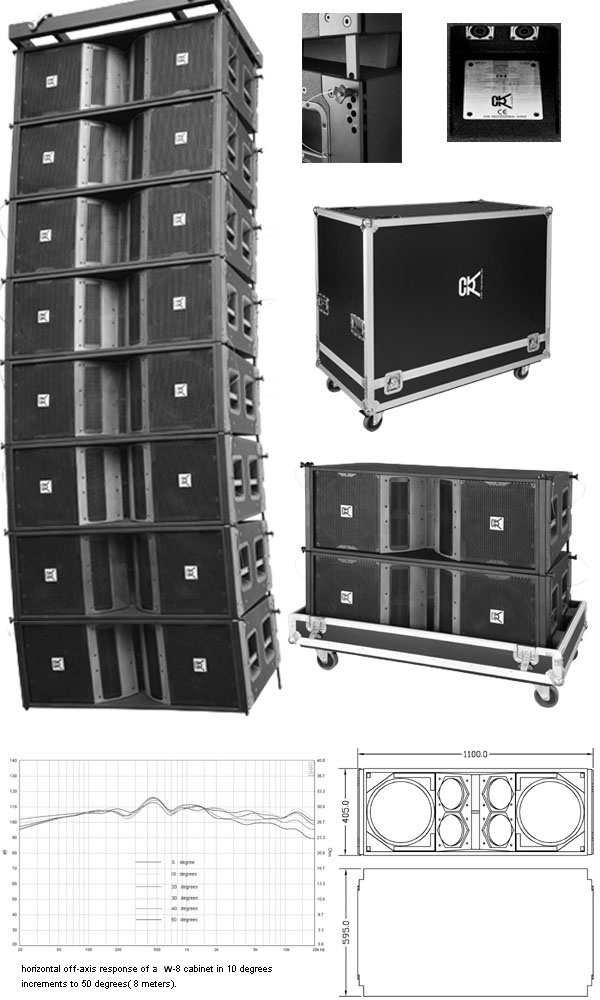

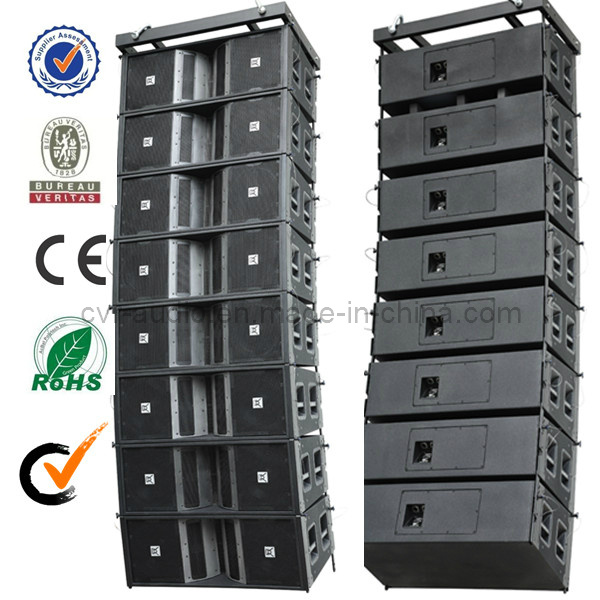

Concert music live events professional audio line array speakerDESCRIPTION & APPLICATION The W-8 is a line array speaker which is made of two 12" neodymium woofers, four 6.5" midrange speaker units, two 3" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array speaker with multi speaker combined to produce accurate directivity and maximum dynamic impact. Its midrange speaker units are beset in treble horn board and two waves guide plates are set in between to eliminate its interfere. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-8 is a 3-way, full range line array loudspeaker system and may be used without subwoofers for many applications. Also it may be complemented by ground stacked subwoofer CVR T-182/CV-218B, which brings superb line array performance to large stadiums, big outdoor concerts, commercial events, etc. TECHNICAL SPECIFICATIONSModel W-8
Type Line array speaker
Frequency Response 45Hz-20KHz±3dB
Directivity index(DI) 12(±2)1.2KHz-16KHz
Power handling LF 2×600W(RMS)2×1200W(PEAK)
MF 600W(RMS)1200W(PEAK)
HF 200W(RMS)400W(PEAK)
Sensitivity LF 104dB(1W/1M)
MF 107dB(1W/1M)
HF 111dB(1W/1M)
Max/S. P. L LF 135dB(PEAK/1M)
MF 135dB(PEAK/1M)
HF 134dB(PEAK/1M)
LF section 2×12" (310mm)neodymium woofer
75mm(3in) coil
Nominal impedance 8 ohm
MF section 4×6.5" (170mm)neodymium MF
50mm(2in)coil
Nominal impedance 8 ohm
HF section 2×3"neodymium compression driver
with 75mm titanium diaphragm
Nominal impedance 16 ohm
Output section 3-channel
Dispersion pattern 110°H×7.5°V
Finish Water-proof, wear-resistant textured black paint
Array design Array speaker of less than 3×W-8 will
provide poor dispersion control and
are neither recommended nor supported
Speaker cables LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Rigging system Please refer to the W-8 user
manual before any operation
Input connectors 2×Neutrik NL8
Recommend crossover LF 45Hz-400Hz
MF 400Hz-1200Hz
HF 1200Hz-20KHz
Dimensions 1100×405×595mm(W×H×D)
Package dimensions 1170×475×665mm/0.37cbm
Enclosure Birch Plywood
Net weight 65kg
Gross weight 69kg
OUR TEAM
1. Any inquiries will be replied within 24 hours.
2. Provide high quality, fashion designs, reasonable and competitive price, fast lead time.
3. Delivery the goods to our customer all over the world with speed and precision.
Sample order in stock and 2-15 days for bulk production.
4. After-sale service:
All products will have been strictly quality checked before packing.
All products will be well packed before shipping.
All products have one year free warranty and lifetime follow-up service.
Welcome to contact us for further informations!
Guangzhou CVR PRO-Audio Factory is a manufacturer specialized in producing professional audio equipment with an own brand "CVR "since 2005. Our 5, 000 square meters plant has R&D, sales and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs. CVR PRO AUDIO can easily provide you a wide range of professional sound gear like: PA speaker, indoor and outdoor line array speaker, subwoofer, floor monitor, Power amplifier and speaker management system. From the smallest conference room to the largest stadium.
CVR is the brand we set for global market, carrying great responsibility to satisfy our customers in every possible aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the world.
Our goal is to provide the best equipment with the best services. We have not deviated from this position since we began and will do it consistently.
