| Prod Model: |
WSDS-TC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Drilling |
| Manufacturing Arts: |
Sinter |
| Kind: |
Stone Sawing Machine |
| Application: |
for Drilling All Kinds of Concrete |
| Design: |

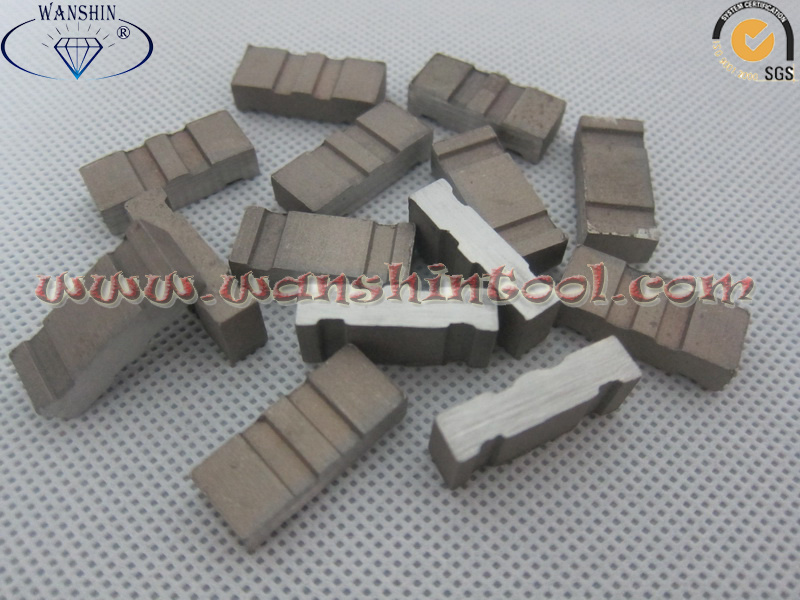

Turbo Segment |
| Diameter: |
100mm |
| Size: |
24*4*10mm |
| Feature: |
Can Drill Concrete with Steel |
| Delivery Time: |
3-7days |
| Package Type: |
Paper Carton |
Product Description
Features:
1. Fast drilling speed
2. Long service life
3. Efficient performance
4. Special designed steel body
5. Mature segment bond and high welding strength
6. No breakage of segments
Application:
1. Granite
2. Marble
3. Green concrete
4. Tile
5. Ashalt
6. Reinforced concrete
Machinery: Hand held drill, drilling machine
| Diamter | Segment No. | Segment Size |
| 13.3(1/2") |
Continue Rim | 13.3x3.2x10 |
| 16.5 (5/8") | 16.5x3.2x10 |
| 19.7(3/4") | 19.7x3.2x10 |
| 22.9(7/8") | 22.9x3.2x10 |
| 26(1") | 26x3.2x10 |
| 29.2(1-1/8") | 29.2x3.2x10 |
| 32.4(1-1/4") | 32.4x3.2x10 |
| 35.6(1-3/8") | 35.6x3.2x10 |
| 38.7(1-1/2") | 38.7x3.2x10 |
| 41.9(1-5/8") | 41.9x3.2x10 |
| 45(1-3/4") | 45x3.2x10 |
| 48.3(1-7/8") | 48.3x3.2x10 |
| 51(2") | 4 | 25.4x3.6x12-V |
| 64(2.5") | 6 | 25.4x3.6x12-V |
| 76(3") | 7 | 25.4x3.6x12-V |
| 89(3.5") | 8 | 25.4x3.8x12-V |
| 102(4") | 10 | 25.4x4.0x12-V |
| 115(4.5") | 11 | 25.4x4.0x12-V |
| 127(5") | 12 | 25.4x4.0x12-V |
| 152(6") | 14 | 25.4x4.2x12-V |
| 178(7") | 15 | 25.4x4.4x12-V |
| 204(8") | 16 | 25.4x4.4x12-V |
| 225(9") | 17 | 25.4x5.1x12-V |
| 254(10") | 18 | 25.4x5.1x12-V |
| 305(12") | 20 | 25.4x5.1x12-V |
| 356(14") | 22 | 25.4x5.1x12-V |
