| Prod Model: |
XT |
| Groove: |
Special |
| Mini Order: |
1PC |
| Technics: |
Milling, Machining, Nitriding etc |
| Feature: |
Abrasive and Corrosive |
| Material: |
38crmoala/42crmoala/AISI4140 |
Product Description

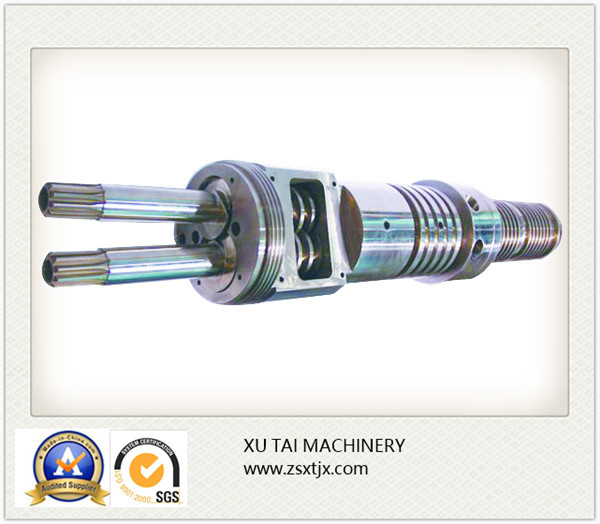

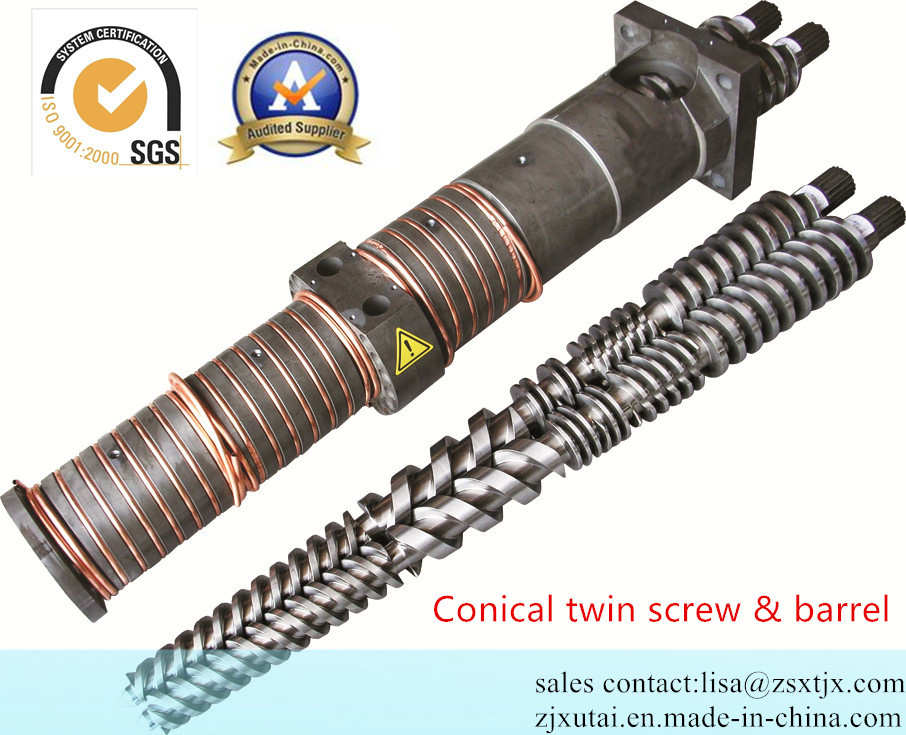

Conical Twin Screws for PVC/PE/PP Exstrusion
Products Introduction
Products Specification:| Ф15/Ф30 | Ф25/Ф55 | Ф35/Ф75 | Ф40/Ф83 | Ф45/Ф90 | Ф45/Ф99 |
| Ф48/Ф112 | Ф48/Ф112 | Ф48/Ф117 | Ф50/Ф105 | Ф50/Ф110 | Ф51/Ф105 |
| Ф51/Ф120 | Ф55/Ф110 | Ф55/Ф125 | Ф58/Ф125 | Ф60/Ф125 | Ф60/Ф129 |
| Ф65/Ф120 | Ф65/Ф132 | Ф68/Ф147 | Ф70/Ф150 | Ф74/Ф156 | Ф74/Ф162 |
| Ф80/Ф143 | Ф80/Ф156 | Ф80/Ф162 | Ф86/Ф177 | Ф92/Ф184 | Ф92/Ф188 |
| Ф95/Ф193 | Ф105/Ф203 | / | / | / | / |
Material:| Raw Material | Processing Requirements |
| 38CrMoAlA,SACM645,42CrMo | Nitriding Treatment |
| 42CrMoAlA,AISI 4140 | Hard Chrome Coated Layer |
| 4Cr5MoSiV1,SKD-61,SKD-11 | Spraying bimetallic alloy and nitriding treatment |
| HPM38,SI36,SUS440,9Cr18MoV | High frequency quenching |
| GHII3 | Nature hard after high temperature |
Technical Index:| Surface Roughness:Ra0.4um | Base Material:38CrMoAlA
Bimetallic Welded on the flight of screw
To prolong service life |
| Straightness:0,015mm/m |
| Hardness of nitriding:HV≥920 |
| Nitriding Depth:0.5-0.8mm |
Screw Types:| Gradual type | Mutant type | Wave type | Barrier type | Pin type |
| Shunt type | Separated type | Vented type | Non vented type | Mixing type |
| Multi head type | Double-head type | Three head type | Double screen type | |
Application:| Plastic material producing: | PVC/PE Wood-plastic /High Calcium(50-300/400)(1/2) |
| Plastic products producing: | sheet/board/pipe/profile |
| Raw material recycling: | PP/PE/ABS/PVC |
Screws for Pipe Extrusion| Model | Motor Power | Screw Diameter | Rotation Speed | Kg/hr |
| XT45/90 | 15KW | 45mm | 30rpm | 100kgs/hr |
| XT50/105 | 18.5KW | 50mm | 30rpm | 120kgs/hr |
| XT55/110 | 22KW | 55mm | 30rpm | 150kgs/hr |
| XT65/132 | 37KW | 65mm | 30rpm | 250kgs/hr |
| XT80/156 | 55KW | 80mm | 25rpm | 450kgs/hr |
| XT92/188 | 110KW | 92mm | 25rpm | 800kgs/hr |
Why XUTAI Screws
-Improved overall dispersion and homogenous melt
-Higher outputs
-Easy purging
-Higher percentage of regrind can be used
-Efficient and cost effective
Company Introduction
XuTai Machine is one of the leading suppliers of screws/barrel for Injection/Blow molding/extruding plastic machine
Located in Jintai town of zhoushan city,industrial base of China where 80% of screws and barrel made.
Since 2000 we started to produce professionally bimetallic parallel/conical twin screws series and have had exported to more than 15 countries and regions.
1)more than 5000M2 workshop and 40skilled experienced workers, 10% QC to insurance high Quality
2)all kinds of lathe,milling,drill,CNC machine and out soucing material and heatreatment

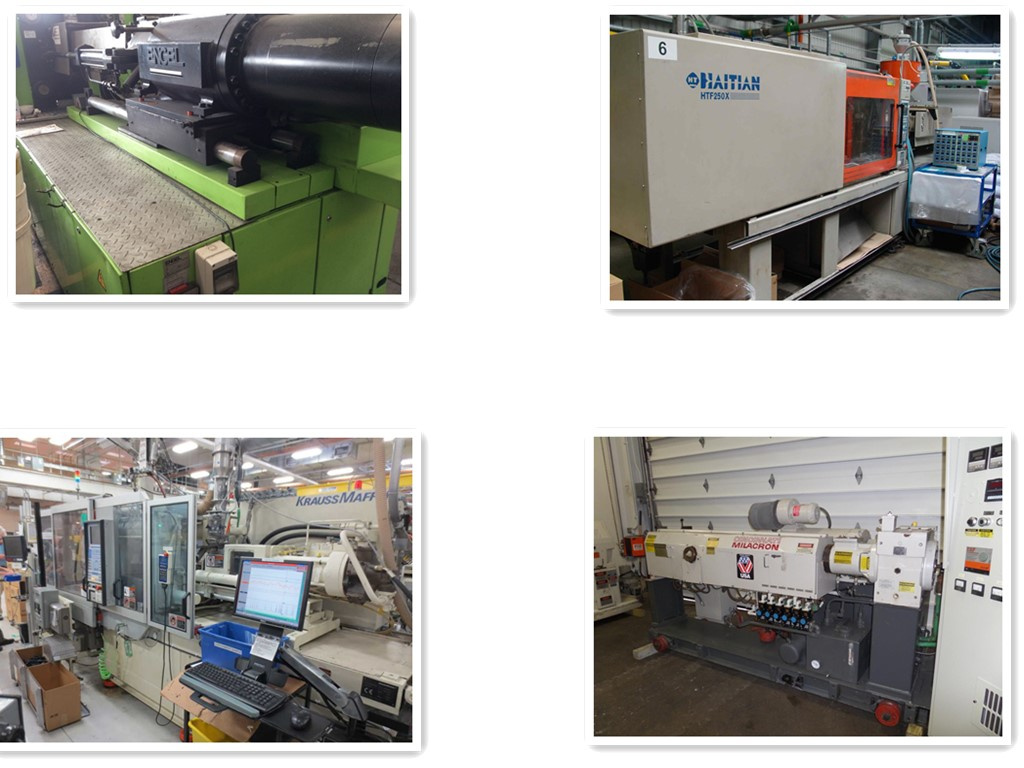

3)2.5hours near by Shanghai port and Ningbo port ,Air Fleight is also avaiable for urgent orderOur main products were used to most famous machine worldwide with good matching and high quality
KRAUSS MAFFEI/CINCINNATI/ENGEL/HAITAI/LK

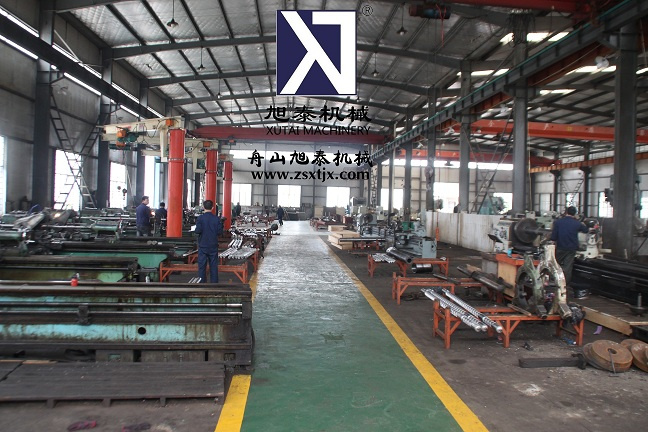

Workeshop show:

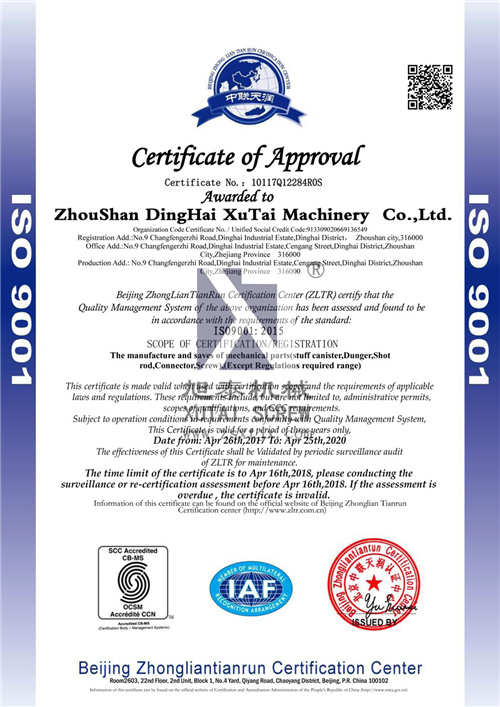

Certification:
ISO9000 AND SGS certification
Exihibiton show
Chinaplast
Welcome all Customers for Inquiry
With more than 12 years specialized screw and barrel producing experience
Zhoushan XuTai Machinery is one of the leading manufacturer of conical twin/parallel twin screws /single screw/injection molding screw/rubber machine/bimetallic screws/planet screw etc.
Located in Zhoushan City, Zhenjiang province, where is the hometown of China screw and barrel, we owned a complete team for designing/producing /selling and service. Quality is controlled from the very beginning of concept to inspection during The whole products' life circle.
Our enterprise has passed ISO9000 and SGS certification. Our aim is to supply not only the good quality products but also best service and solution for worldwide customers
Main Products
--conical twin screw and barrel
--parallel twin screw and barrel
--single screw, extruder screw, barrel
--injection molding machine screw and barrel
--rubber machine screw and barrel
--bimetallic screw and barrel
--planetary screw and barrel
--accessories of injection molding machine screw
--Gear box series
--Extruder machine
Main market
Plastic products machine: PP/PVC/ABS/PE/RUBBER
Food extruder machine: Pet food extruder/meat grinder extruder/ animal food extruder
Main Customers
--German Mado food extruder expert
--GATES Fluid Power Technologies
-AMPHENOL
-Prysmian Gruop
--screws for kraussmaffei/Cincinnati/Haitian/LK /Tongjia etc
