Construction Building Material Scaffold Couplers

Material:	Steel
Type:	Fixed
Structural Style:	Multi-Pole Scaffolding
Framework:	Combined Scaffolding
Supporting Mode:	Projecting Scaffolding
Lapping Form:	Full Scaffolding
Erection Position:	External Scaffolding
Move Method:	Attached Lifting Scaffolding
Scaffolding Part Type:	Scaffolding Couplers
Construction Properties:	Installation Scaffold

Product Description

Product Description

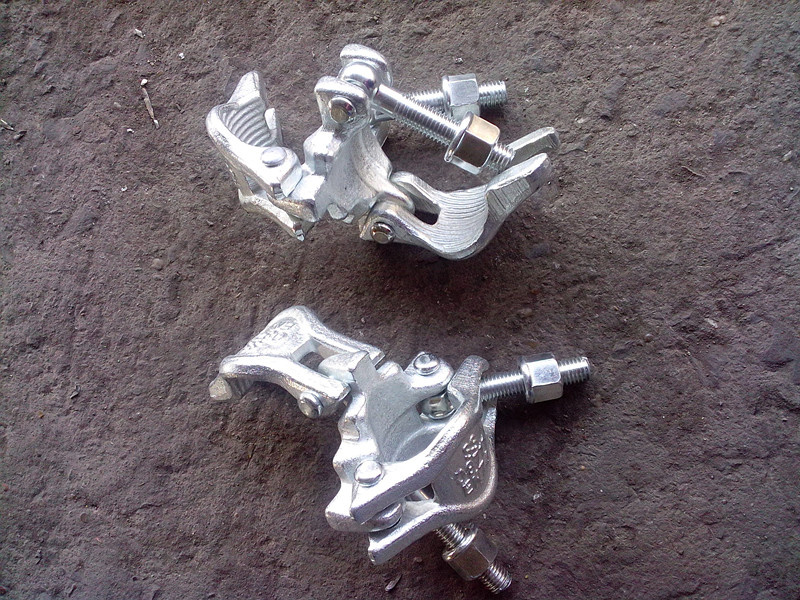

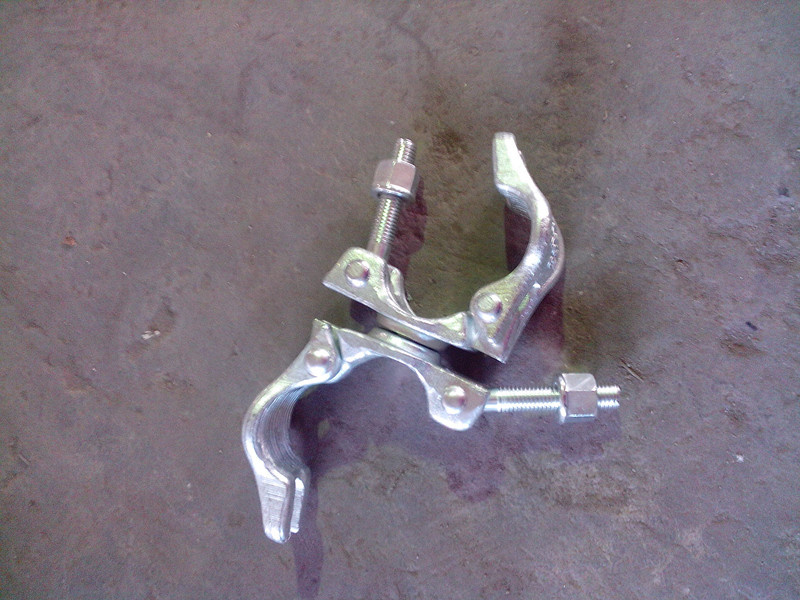

Scaffolding Drop forged double coupler British type:

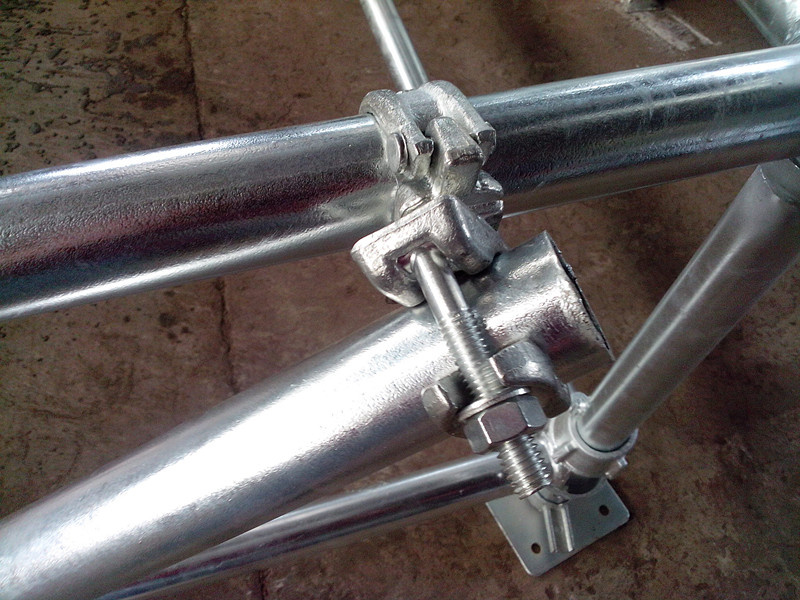

1.Drop forged double coupler British type,which is widely used in global market to connect 48.3mm tubes at 90 degrees.

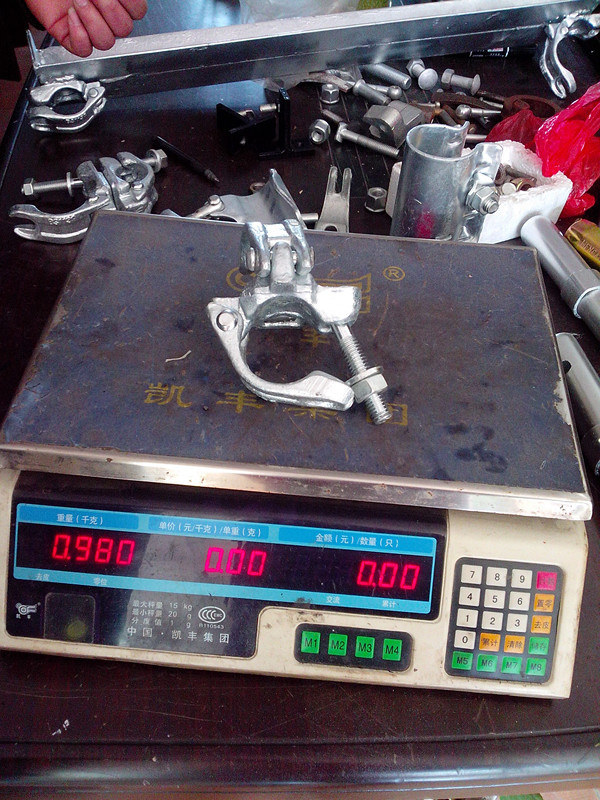

2.Unit weight: 0.97kg
3.Surface finish: electro galvanized,or hot dip galvanized
4.Meeting EN74 and BS1139 Standard
5.Packing: 25pcs in one bag,50 bags are packed on one wood or steel pallet
6.Rich experience in producing all types of couplers,pressed type and drop forged type.We have our own forging line
7.Fast delivery

If you did not find the right coupler from the following list,please email us


No.	Item	Weight (kg)
1	Drop forged fixed coupler British type:48.3x48.3	0.97
2	Drop forged swivel coupler British type:48.3x48.3	1.15
3	Drop forged putlog coupler	0.65

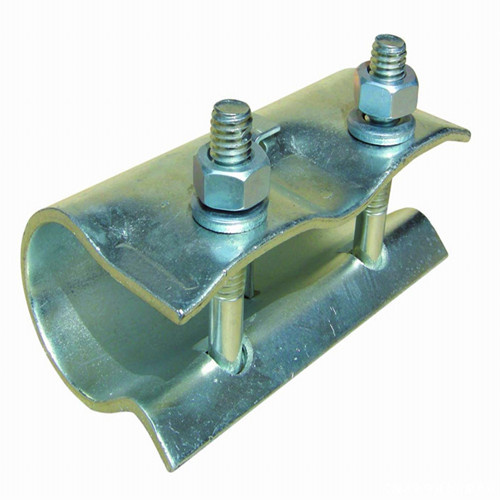

4	Pressed sleeve,end to end connector	1.02
5	Drop forged fixed girder coupler	1.5
6	Drop forged swivel girder coupler	1.6
7	Ladder coupler	0.72
8	Drop forged inner joint pin	1.1

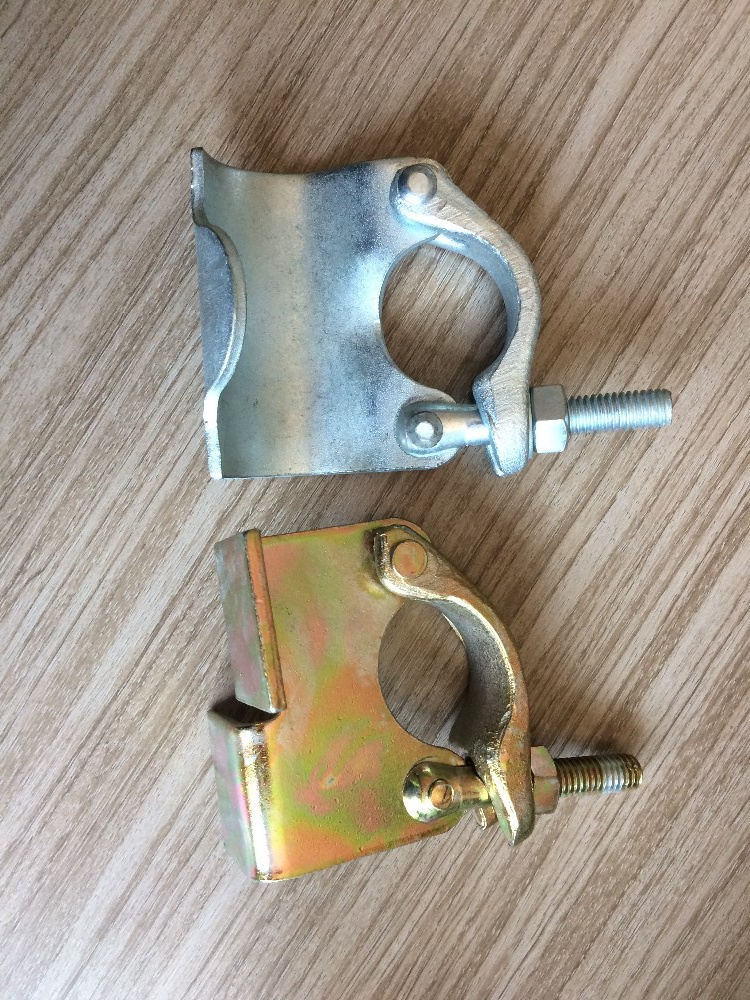

9	Board retaining coupler	0.63
10	Pressed right angle coupler British type	0.85
11	Pressed swivel coupler British type	1.02
12	Pressed putlog coupler	0.63
13	Pressed inner joint pin	0.68
14	Drop forged fixed coupler American type:48.3x48.3	1.65
15	Drop forged swivel coupler American type:48.3x48.3	1.75
16	Drop forged half coupler British type	0.65
17	Drop forged half coupler American type	0.92
18	Drop forged fixed coupler German type:48.3x48.3	1.05
19	Drop forged swivel coupler German type:48.3x48.3	1.25

FAQ

1.---What is your product range?
   ---Ringlock system,frame system,tubes and couplers,cuplock system,props,other scaffolding accessories and metal products.

2.---What is MOQ?
   ---Usually we don't have a MOQ,but it depends on the product you are looking for

3.---Can I request samples?Is it free?
   ---Yes,we can offer free samples on most itmes if it is not too heavy or big

4.---Do you offer OEM service?
   ---Yes

5.---How you do the quality control?
   ---Our strict quality control system ensures all products well made step by step. All the raw materials are bought from professional steel manufacturers, with Mill Test Certificates offered. Our quality control persons inspect and monitor the whole process from raw material, cutting, pressing, welding, matching, surface finish, finishing process, packing, container loading and transportation.

6.---Do you have certificate?
   ---Clients need to pay the cost to do the test from Third Party Testing Agent.Factory certificates can be offered for some products.We have testing machines in the factory,and also working with labs for testing.

7.---What is production time?
   ---Usually it takes 25-30 days for the first container,production goes faster after the first container once all raw materials are ready.The more the faster.Partial shipment can be arranged if requested.

8.---What is your payment term?
   ---T/T is prefered.L/C at sight can be accepted in some area.

9.---What is your after-sale service?
   ---All the after-sale problems will be solved based on mutual friendly communication.
       In case of quantity shortage,the detailed certificates should be sent to our side in seven days after the goods arrive at  your warehouse.In case of quality discrepancy,such as problems caused by raw material,welding,or surface finish,the detailed certificates should be sent to our side.If it is confirmed caused by our side for the above two mentioned situations,the loss will be compensated as the new goods sent to your side in next order.
