Construction Machinery Passenger Hoist Spare Parts Drive Mechanism

Construction Machinery Passenger Hoist Spare Parts Drive Mechanism
Price: US $ 2000-4500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: SC200
Name: Construction Machinery Passenger Hoist Spare PA

Product Description

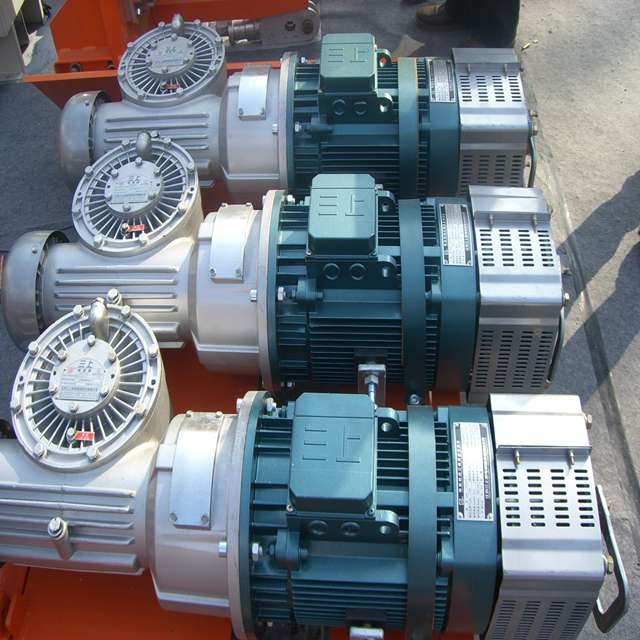

 Construction Machinery Passenger Hoist Spare Parts Drive Mechanism



Technical features :

1.It features compact,small volume and a longitudinal direct-acting driven arrangement to decrease the size of the switchgear effectively.
2.Both manual and motor driven charged operations are available and it is convenience to local or remote operation by the final user .

3.The key parts are subjected to the nitrogenation treatment and they are durable and have high impact strength.The component surface adopt composite zinc plating and the long-term low temperature grease is applied so that the product is able to meet different weather conditions.
4.Both AC and DC power operation are available and it is convenience for the users without DC power supply.




Technical parameters :



ParametersUnitsTechnical parameters
Closing output energyJ95~120
Mechanism closing and opening output angle.36~40
Output lever radiusmm26
Travel switch contact logarithm 2K2B
Motor charged times<12
Handled charged momentN.m<20
Motor  powerW40(AC/DC 220V/110V)
Closing electrical magnet resistance(AC)Ω130(220V)  33(110V)




Closing electrical magnet resistance(DC)Ω56(220V)   10.3(110V)
Opening electrical magnet resistance(AC)Ω105(220V)  33(110V)
Opening  electrical magnet resistance(DC)Ω56(220V)  10.3(110V)
Mechanism enduranceTs20000

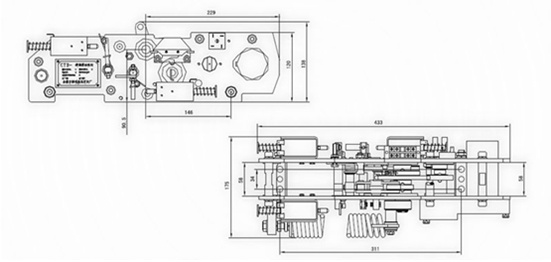

Outline and installation dimension drawing :

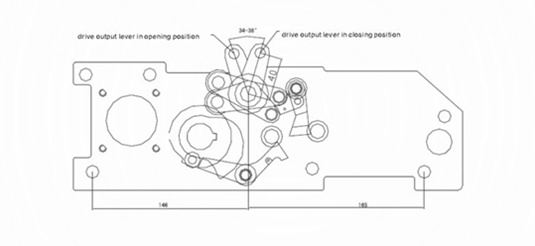

Operating mechanism position state diagram :



FAQ new and contact

Q: Are you trading company or manufacturer ?

A: We are trading company, but we have very good and long term cooperations with many leading manufacturers in tower crane and passenger hoist field in China.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to the product category and quantity.

Q: Do you provide samples ?

A: In this field, we seldom provide samples, but it depands.

Q: What is your terms of payment ?

We do TT most, but we can also do L/C and west union for you.
If you have another question, pls feel free to contact us as below:








SYM HOIST & TOWER CRANE QUIPMENT Co., Ltd located in Shenyang China is one of the biggest supplier and export of tower crane, luffing crane, topless crane, passenger hoist along with the spare parts for them. With 20 years' experience on tower crane rent, installation, repair and reconstruction, the company has more than 50 experienced mechanical and electrical engineer responsible for the installation guide, failure diagnosis, maintainance and reconstruction for the tower crane at the construction site.

Having a long-term and good cooperative relationship with China's most famous manufacturer of tower crane and passenger hoist like YONGMAO, SANYO, Sichuan SCM, Zoomlion, GJJ, BAODA, etc. The company can offer you the best quality original tower crane and passenger hoist with most competitive price.

Also, we supply the best professional services, help customers make the right judgment, also the prompt shipment because of the largest number and most complete tower crane and passenger hoist spare parts inventory.

Our trading partners go all over the world, mainly in South-East Asia (Singapore, Hong Kong, Malaysia, Indonesia, the Philippines, Thailand, South Korea, Vietnam ), Middle East(T Arab emirates, Saudi Arabia, Qatar, Bahrain, Kuwait, Iran), India, Russia, Ukraine, Brazil, etc.
