| Price: | US $ 18-25/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | XMN-006 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | Galvanized Iron Wire |
| Application: | Construction Wire Mesh |
| Hole Shape: | Diamond |
| Weave Technique: | Plain Weave |
| Surface Treatment: | Galvanized |
The popularity of chain-link fence is from its relatively low cost and that the open weave does not obscure sunlight from either side of the fence.
Specifications:
| Height | 4ft, 6ft, 8ft |
| Length | 10ft, 12ft, 14ft, etc |
| Wire diameter | 2.5mm, 2.7mm, 3mm |
| Mesh opening | 50x50mm, 57x57mm, 60x60mm |
| Frame tube outer diameter | 32mm, 33.4mm, 42mm |
| Middle brace outer diameter | 32mm or 25mm |
| Fence panel material | low carbon steel |
| Fence panel surface | hot dipped galvanized |
| Fence base | 762x460mm |
| Fence base material | low carbon steel |
| Fence base surface | hot dipped galvanized or powder coated |

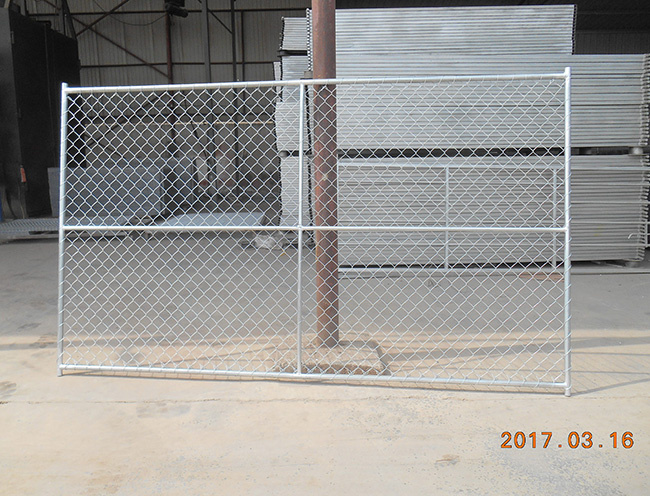

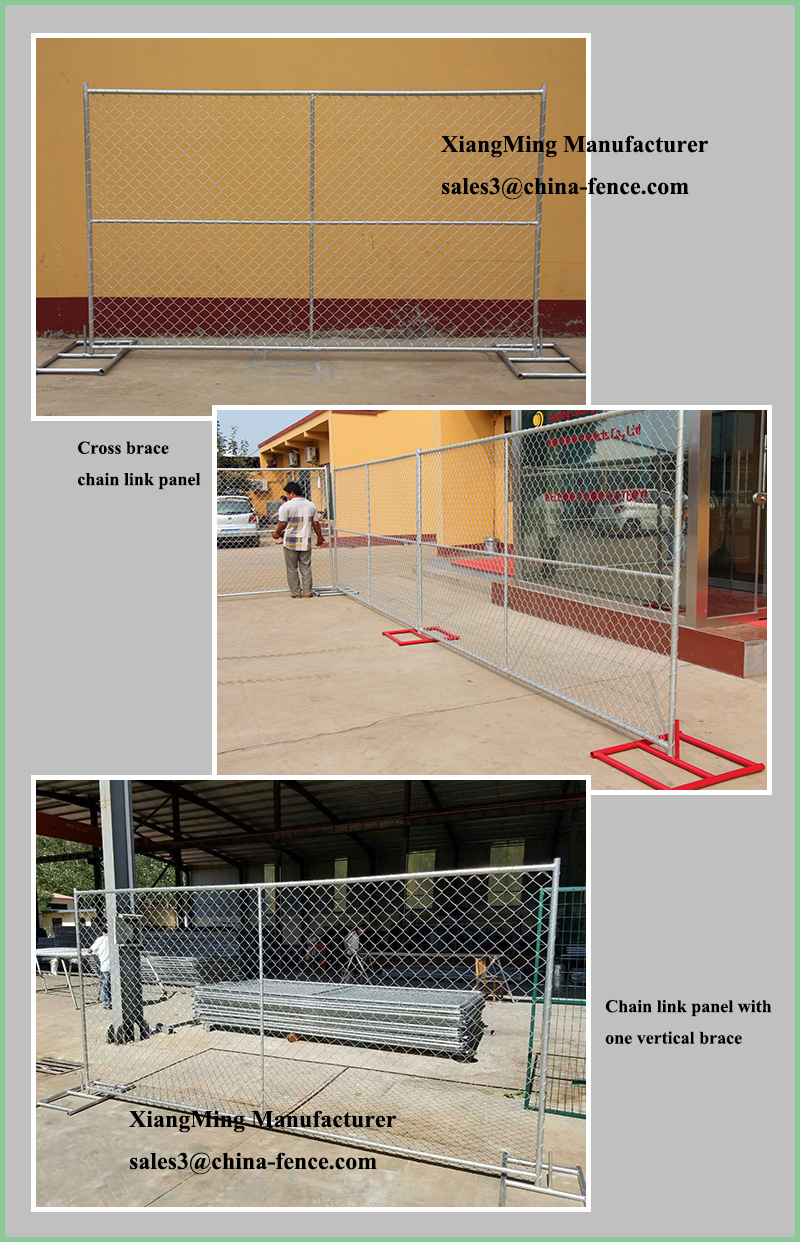

Chain Link Fence Panel

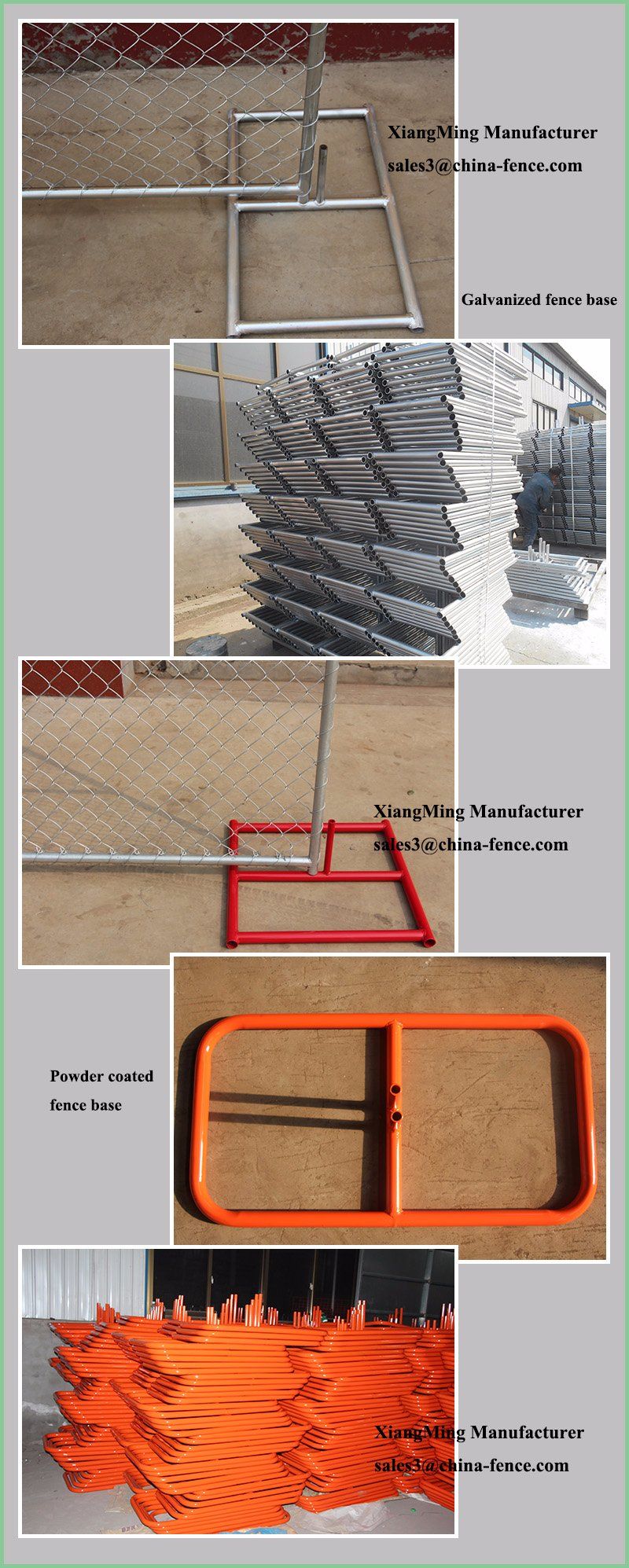

Fence panel base:

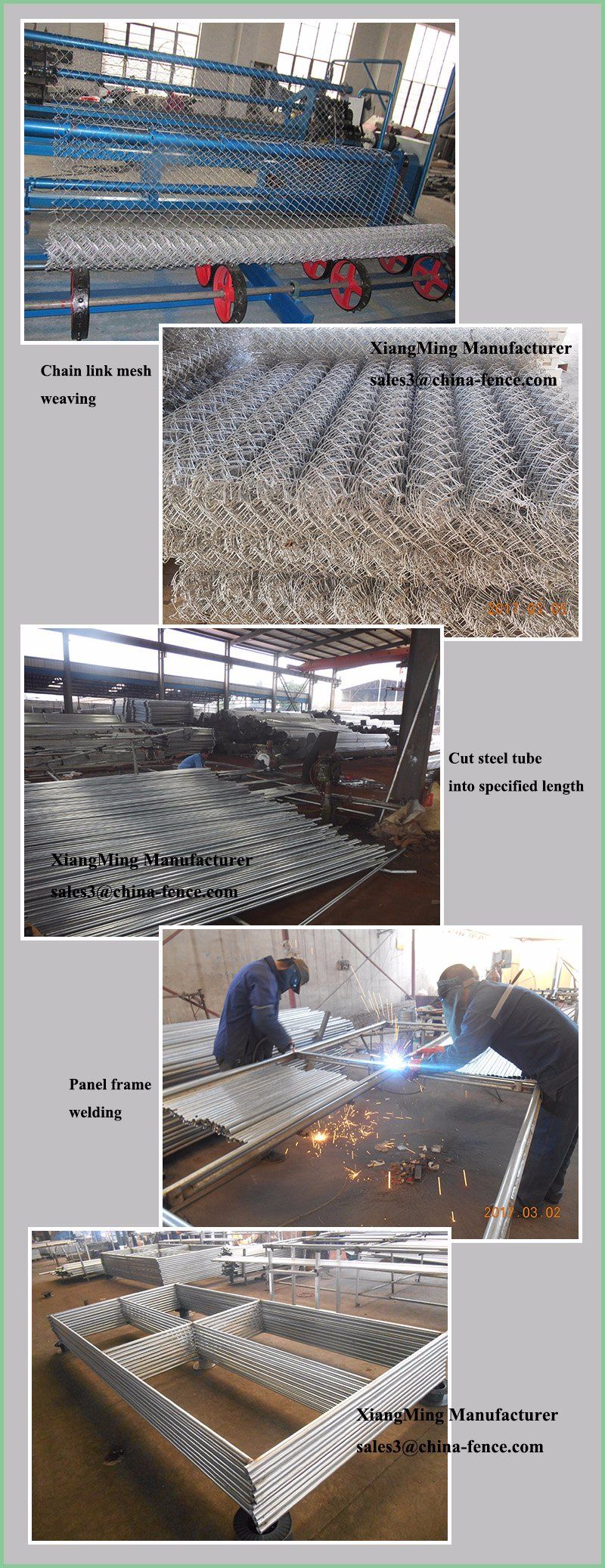

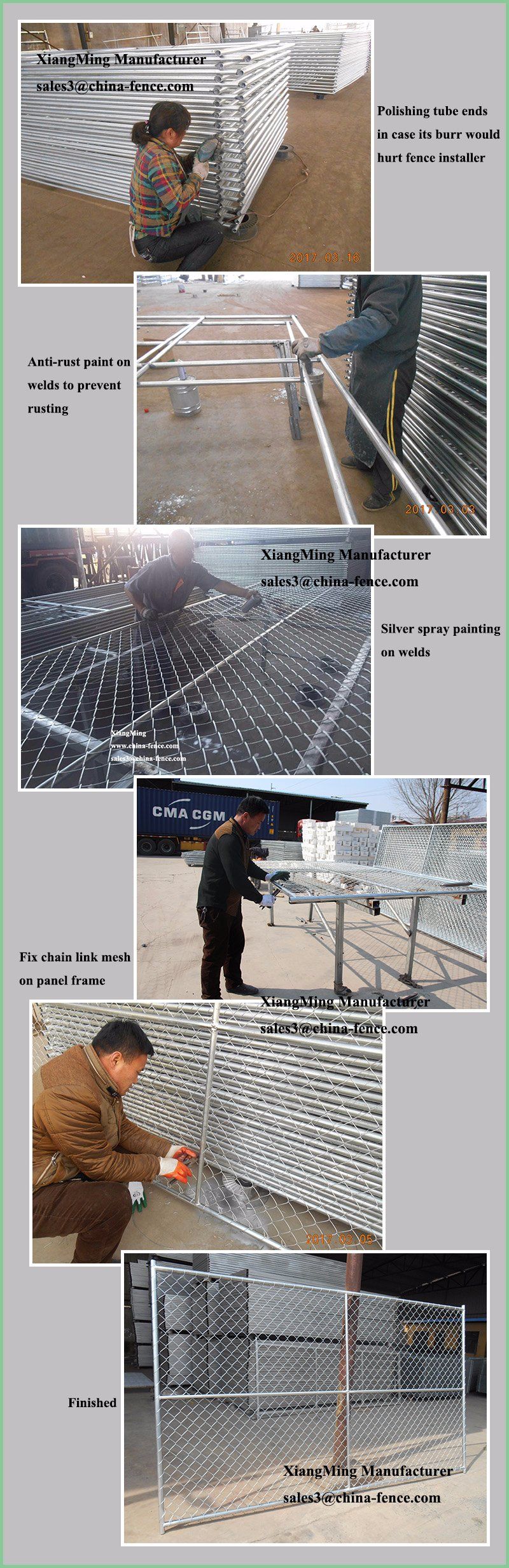

Production Flow:
Pre hot dip galvanized wire drawing--- cut wire and pipes ---wire weave---cut the corners of the mesh---Pre hot dip galvanized pipes welded-polish the welds-paint anti-rust epoxy-spray sliver powder coat on each welds-stacking-packaging

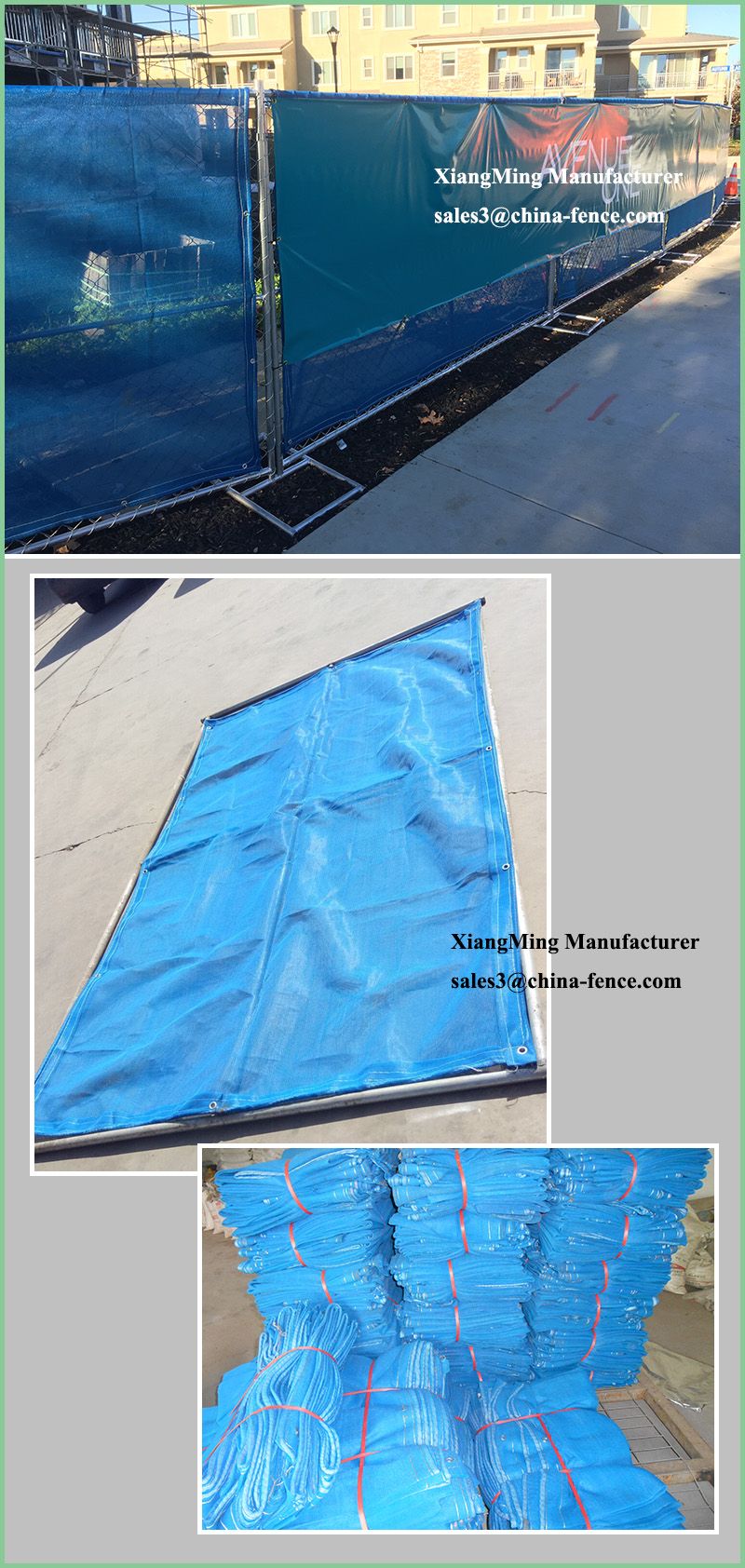

Shade cloth/screen is also available:

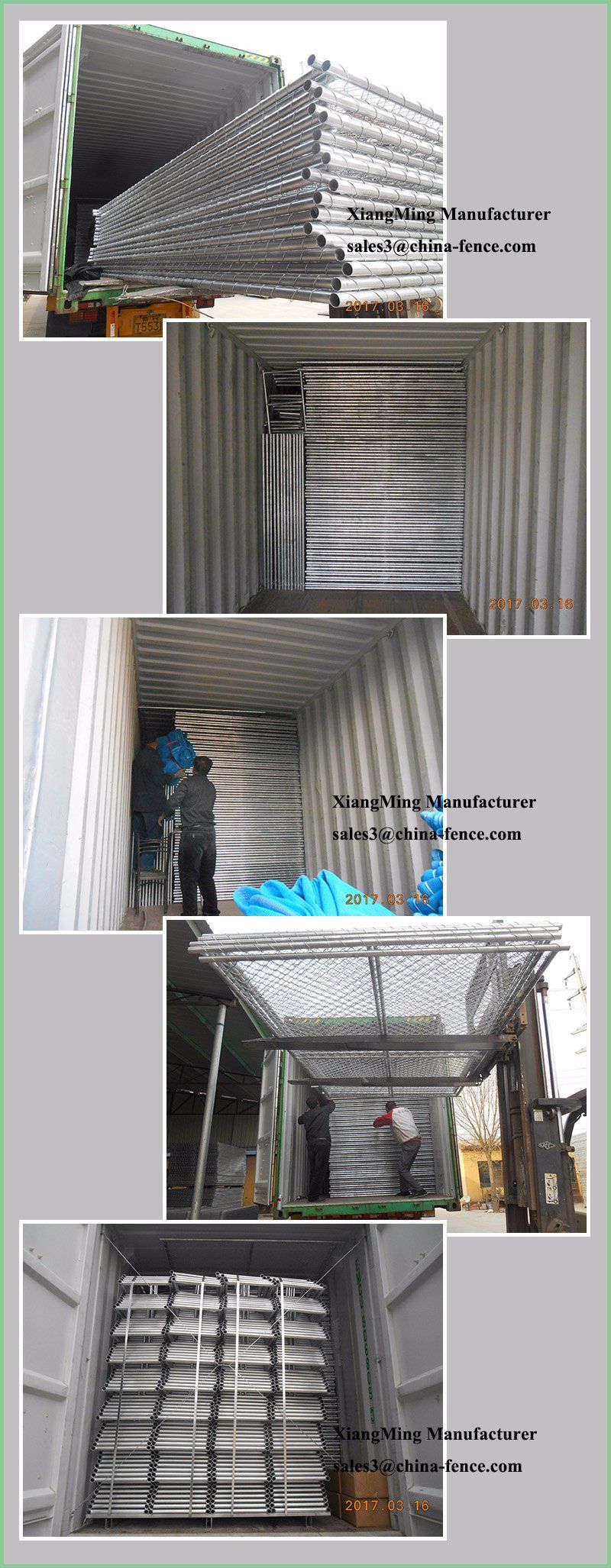

Container loading:
We will make the most use of the container space and load as many as stable panels into it.
In the mean time, panels will be safely and strongly packed to make sure they will be well received by our clients.
Contact us if you are interested.
Anping County XiangMing Wire Mesh Products Co., Ltd
Contact: Ms. Ellen
