| Prod Model: |
TSY-110G, 75G, 55G, 37G, 15G, 11G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type For Cutting Machine: |
Stone Cutting Machine, Granite&Marble Quarry |
| Usage: |
Marble |
| Application: |
Machinery & Hardware |
| Automation: |
Automatic |
| Source Voltage: |
by Customs Requests |
Product Description

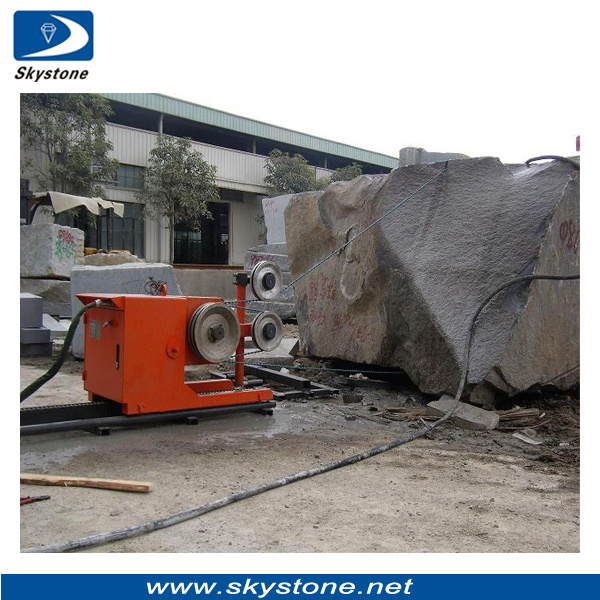

1.Diamond wire saw machine for granite and marble quarry.
2.The inverter of main motor & travel motor is YASKAWA-H1000 (From Japan)with waterproof, dustproof treatment.
3.Most of electrical component are Schneider and Siemens.
4.The brand of main motor and travel motor are WANDER(Chinese Brand, OEM OF SIEMENS).
5.The angle and height of the main flywheel can be adjusted by manual control button.
Remark
1.The wire tension and cutting current is closed loop automatic controlled by PLC and inverter.
2.The cutting process can be automatical controlled accurately.
3.The movement and rotation of the cutting head is driven by motor with position Limitation Protection.
4.Machine protection functions including:wire broken,Machine overload,cutting finished,and others malfunction happened
5.Display an saving with digitization:the value of cutting current,linear speed and moving speed indicated on the panel,and the cutting time can be saved.
6.The machine without phase request.It is needn't to change and distinguish.
Main motor power | 37-55-75-110kw |
| Total power | 40-58.75-78.75-114.5kw |
| Wire tension and cutting current | automatic controled by PLC and inveter |
| Diameter main flywheel | 800mm |
| Lateral movement of cutting head | 1.8 or 2 m |
| Cutting head rotation | 360° |
| Linear wire speed | 0-40 m/s |
| length of rails | 3m*3 |
| Traveling speed | 0-150m/h |
| Workind condition | -15-40 °c humidity < 95% (without dew) |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
