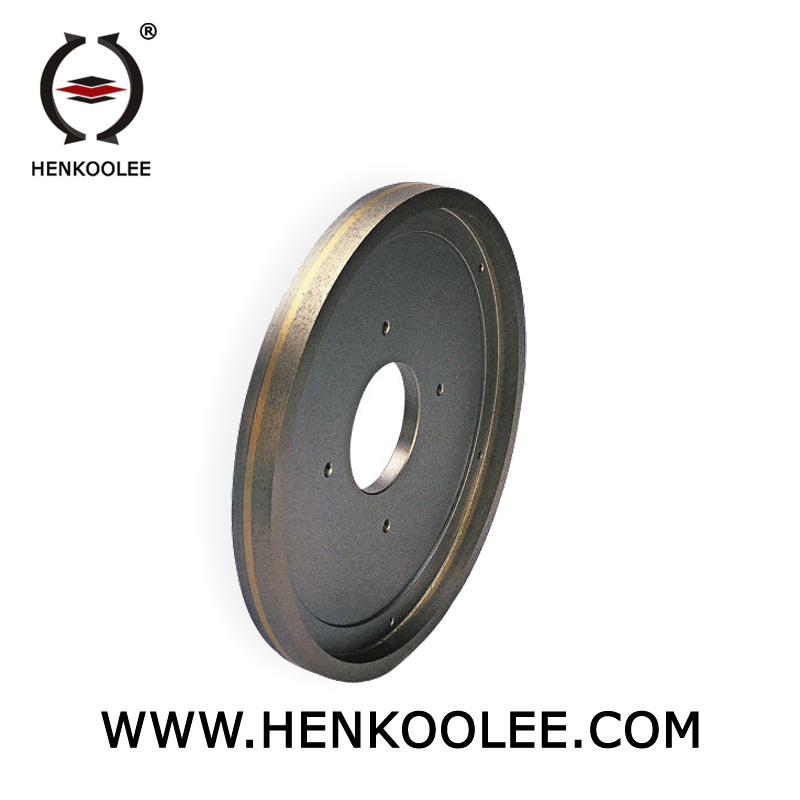

Continuous Rim Resin-Bond Diamond Dry Grinding Wheel
| Price: |
US $ 20-30/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HKL212 |
| Working Conditions: |
Dry |
| Used For: |
Glaze Wall Tiles |
| Long Working Lifetime: |
10-45days |
| Types: |
Cutting Wheel |
| Working Style: |
Surface Grinding |
| Material: |
Resin and Diamond |
| Abrasive: |
Resin and Diamond |
| Shapes: |
Round |
Product Description
DRY SQUARING WHEEL AND CHAMFERING WHEELThe advantage of these products is to make squaring and chamfering without water on ceramic tiles edges,which can achieve the same effect as traditional wet squaring and chamfering way.By the traditional wet squaring and chamfering way. By the traditional wet mode, the tiles body will absorb water and some water will be still remained after drying, so ceramic tiles may become mildew and dyed when storing and transportation. But by dry squaring and chamfering mode,it can prevent effectively above mentioned quality problems, moreover the drying equipments and process become unnecessary, so the power consumption can be lowered, labor cost, drying equipments and related field can be saved.
These products are suibable for make dry squaring and chamfering on glaze wall tiles. Our dry squaring and chamfering wheels are approved for their high grinding and cutting efficiency, excellent effect and stabile performance.CONTINUOUS RIM RESIN-BOND DIAMOND DRY-SQUARING WHEELDry squaring wheel & chamfering wheel is applicable for make dry squaring & chamfering on glaze wall tiles in dry squaring & chamfering line. These products are approved for their high grinding and powerful cutting efficiency, stable performance and long working lifetime etc.Why Choose Our HENKOOLEE?1. A leading factory of diamond tools industry in China
2. Approved the best quality with very competitive price
3. Good sharpness, stable performance, high cutting efficiency and long lifespan
4. Strict quality control system, accept inspection by 3rd party, as ISO9001, ISO14001 and OHSAS18001 systems.
5. We have very experienced R&D engineers and we have strong ability to do ODM projects.
6. Custom design can be meet upon request, small trial order is available in any time, We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.

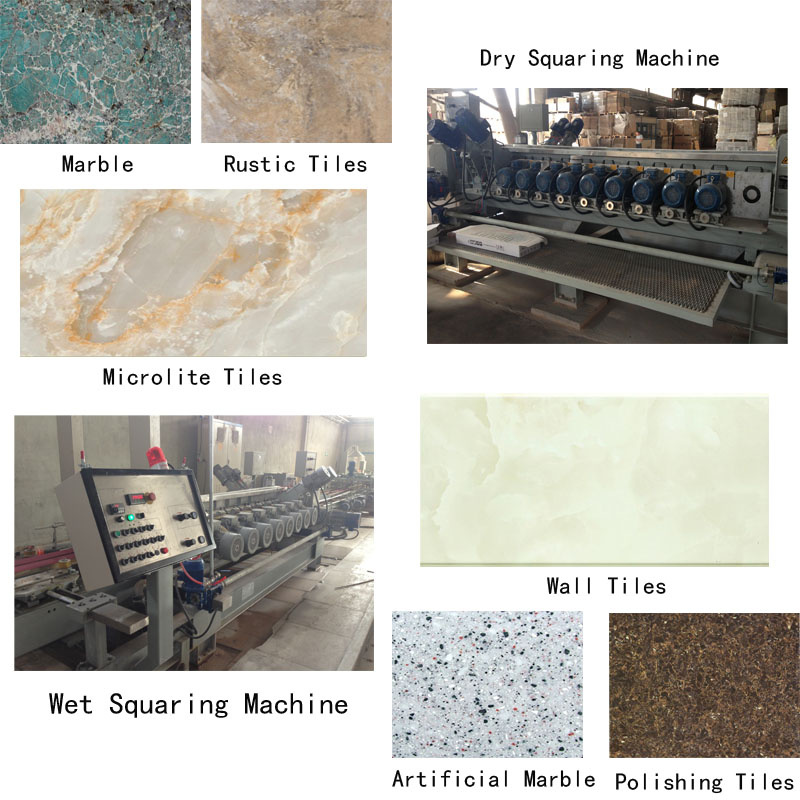

7. Easy communication,HENKOOLEE professional sales team will always answer you in time, besides, friendly and helpful after sales service is always there for you.APPLICATION
MODEL,SPECIFICATIONS AND PARAMETER | DESCRIPTION | DIMENSION
(MM)
DxWxH | GRIT | USER FOR |
| SEGMENTED METAL-BOND DIAMOND DRY-SQUARING WHEEL | Φ200x8X12
Φ250x8X12
Φ300x10x14
| D301(50#)
D251(60#)
D212(70#) | ROUGH GRINDING |
| CONTINUOUS RIM METAL-BOND DIAMOND DRY-SQUARING WHEEL | Φ150x6X12
Φ200x10X12
Φ250x10X12
Φ300x12X15
Φ300x30X10 | D181(80#)
D151(100#) | MEDIUM AND FINE GRINDING |
| CONTINUOUS RIM RESIN-BOND DIAMOND DRY-SQUARING WHEEL | Φ200x25x15
Φ250x40x15
Φ300x40x15 | D181(80#)
D151(100#)
D126(120#) | FINE GRINDING |
RESIN-BOND DIAMOND DRY-CHAMFERING WHEEL
(ROTATION LEFT/RIGHT) | Y3/Φ125
Φ130x30x20 | D76(200#)
D64(240#)
D54(270#) | CHAMFERING |
RESIN-BOND SILCON CARBIDE DRY-CHAMFERING WHEEL
(ROTATION LEFT/RIGHT) | Y3/Φ125 | D107(150#)
D91(180#)
D64(240#) | CHAMFERING |
RESIN-BOND DIAMOND DRY-CHAMFERING WHEEL
(ALUMINUM BODY) | Φ130x30x20
Φ130x40x20 | D76(200#)
D64(240#)
D54(270#) | CHAMFERING |
REMARK:Other specifications are available on requirement.
Procedure
HENKOOLEE TRADING LIMITED mainly engaged in exporting machinery & consumable products of ceramic tile produce process. We have an expert team, who can be consultant for new ceramic plant design, machinery technology modification of existed production line, all of them have more than 10 years experience in this ceramic field.
Since 2008 till today, we are doing business mostly with Indian ceramic factories, during this period, we keep choosing best suppliers of China for our Indian friends, however, every ceramic factory has the difference, we take the responsibility to look for the proper supplier for clients need. Fortunately, our clients satisfy the machinery manufacturers we suggested in these years, so mostly these manufacturers became fixed suppliers, and due to this reason, clients became our good friends gradually, the cooperation between our three parties goes very well.
Our company aim: Quality is the first, based on solving problems for clients as our friends, try our best to do top service and low down the produce cost. In the future, we will stick to our aim, adhere the principle of doing all work sincerely & seriously. Let's forge ahead, business scale is continually expanding!
