| Prod Model: |
1200MM |
| Name: |
Conveyor Belts Splicing Press |
| Certification: |
ISO,BV,Ce |
| Temperature Regulating Range (ºC): |
0-200 |
| Timing Adjustment Range: |
0-99min |
| Voltage: |
380V |
| Work Press: |
0---1.8MPa |
| Power: |
15.5kw |
| Color: |
as Your Requirements |
| Type: |
Bj Series Combined Type Conveyor Belts Joint Vulc |
Product Description
conveyor belt splicing machine
1. Technical parameter
| NO | Name | A=1200mm | Notes |
| 1 | Tape joint vulcanizing machine | 1 set | |
| 2 | Type
| BJ-1200×830 | |
| 3 | Sulfide tape width | 1200 | |
| 4 | Vulcanizing machine work press (Mpa) | 1.0-3.0 Mpa(adjustable) | |
| 5 | Vulcanizing temperature | 145ºC | |
| 6 | Surface temperature difference (ºC) | ±2ºC | |
| 7 | Heating up time(Normal atmospheric temperature 145ºC) | ≤15min | |
| 8 | Temperature regulating range (ºC) | 0-200ºC | |
| 9 | Timing adjustment range | 0-99min | |
10
| Sulfide board size | 1420*830mm | |
| 11 | weight | 850kg | |
| 12 | Voltage | 380V | |
| 13 | Work press | 0---1.8mpa | |
| 14 | Power | 15.5kw | |

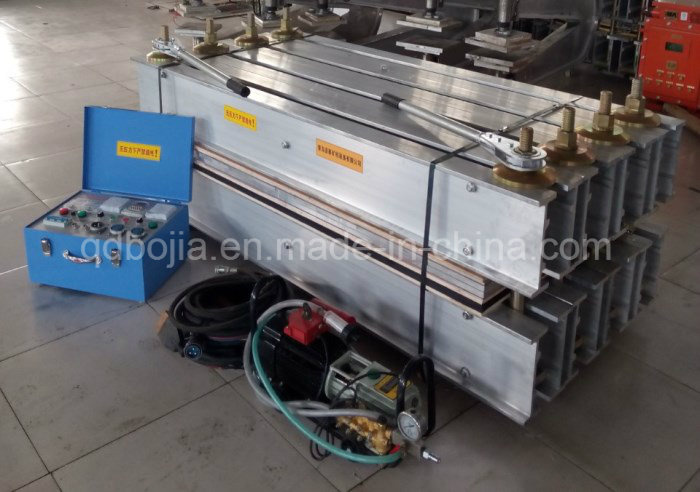

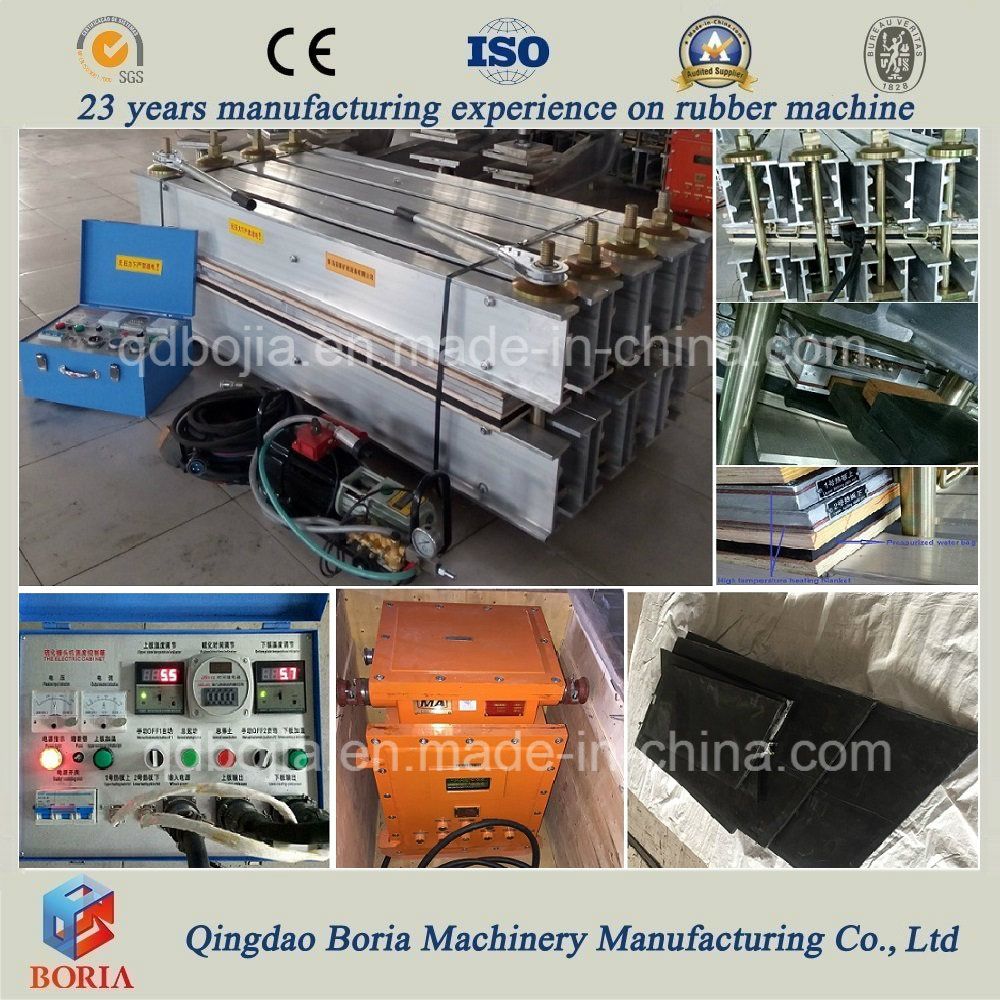

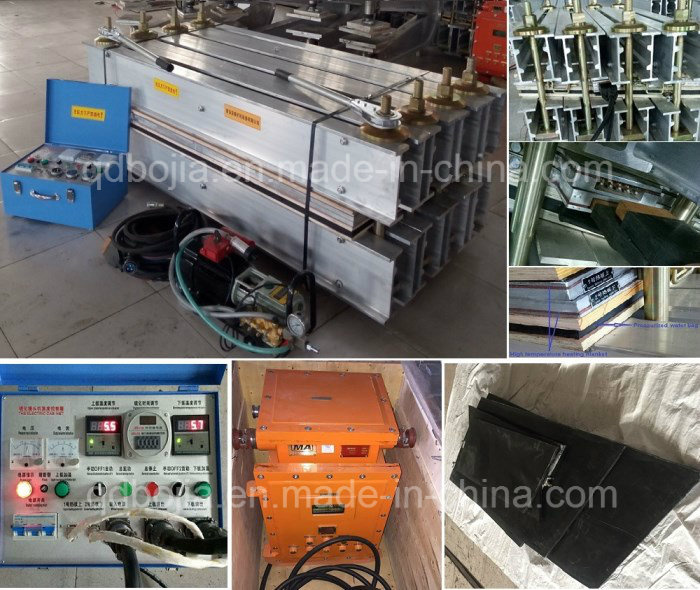

2. Random accessories:
1) Top and bottom heating plate:2 pcs(1420×830mm)(tickness25mm);
2) Pressure water bag: 1set(1420×830mm);
3) press plate: 1set(1420×830mm);
4) Heat insulation board: 2set(1420×830mm);
5) Pressurized beam: 8 group;
6) The large bar: 8 set;
7) Control box: 1set(All using CHINT electric);
8) Input line: 1set(Combined air plugP40);
9) Output line: 2set(Combined air plugP40);
10) Sensors: 2set(Internal burial)
11) Electric pressure pump:1set;
12) High pressure water pipe:1 root;
13) Ratchet wrench:2 bundle.
3. Technical description:
1) Qingdao Bojia Machinery Manufacturing Co. production of curing machine, heating plate and pressure beam all with high strength aluminum alloy production.
2) Heating system is the latest research and development of new products - "Bojia" card vulcanizing machine heating blanket, vulcanizing machine heating blanket is a domestic initiative, hot plate heating fast, uniform temperature, the quality of Canada's technical level, because the blanket is sealed, Will not be caused by damp and leakage phenomenon, effectively avoiding the risk of personal electrical shock and other problems.
3) Pressure device is our newly developed high-tech products "was" brand pressure vulcanizing machine bag at the leading level in the same industry, it has the advantages of light weight, uniform pressure, high pressure under repeated use without pressure relief, Water Leakage phenomenon.
4) BOJIA brand vulcanizing machine control box,The components using Chint and SIEMENS appliances, from heating to cooling insulation, all automatic control.
If you interested in our products mentioned above, kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
Our Services
Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
In the process of production, we will take photos and send to customers for their track the progress.
Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
We supply overseas engineer service and help to train your workers to operate the machine.
FAQ
1. Delivery time of the rubber machines?
This is specially designed machine according to your specific requirement.
From engineer designing to production completion, it needs about 25 to 35 days.
2. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production.
Every machine will be fully assembled and carefully tested before shipment.
3. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation.
Small machine usually takes within 2~3 days.
Big plant usually takes about 30 days.
5. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order.
The core of our company culture is innovation, quality, integrity and efficiency. Also we have had much good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show you're the user around us.
6. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Liuting airport.
We will pick up you at the airport.
Qingdao Bojia Machinery Manufacturing Co., Ltd changed officially its name from a state-owned machinery company in October 2007, is a professional manufacturer in rubber machine field of China with high-tech technology. Our factory is located in Jiaonan County of Qingdao, which is very near from Qingdao Port and Qingdao steel factory. To a great extent, it is saving the logistics cost. We have ISO9001: 2008, BV. And if you need other certifications, we will make it for you according to your requirements. Our customers spread all over the world, such as the United States, Germany, Mexico, Colombia, Canada, Singapore, Malaysia, Australia, Korea, Japan, India, Russia etc.
There's experienced engineers and outstanding technical teams in our factory. We could make a professional design specially for you. We often communicate with the customers and technology authority departments of rubber industry, constantly to improve and update our products which could meet the requirements of the customers. And we also could design and manufacture various non-standard products according to users requirements.
Our main products including: Rubber kneader, rubber mixing mill, rubber sheet cooling machine (batch off cooler), all kinds of rubber vulcanizing press machine (semiautomatic and full automatic), rubber extruder, waste tire recycling production line (rubber powder production line and tire retreading equipment) etc.
In order to provide better service and wonderful machines, we will do everything that we could do for each customer.
1. Our company's machines must pass inspection of 3-7 hours of load test operating before they leave the factory, in order to save customers' time and expense of equipment commissioning. And we will send the video to the customers to check. And we also support customers to visit our factory to check the test operating on site if it's convenient for the customers.
2. We provide one year's guarantee and once the equipment damage during this time we supply free of charge until the problems are solved.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete pre-sale service and after-sales service.
5. Complaints and suggestions please email to us. Thank you.
