Conveyor Support Roller Frame Bracket
| Price: |
US $ 10-80/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HD-F-015 |
| Lifetime: |
More Than 30000 Hours |
| Color: |
Per Customer's Request |
| Conveyor Type: |
Dtii Dtii(a) Dt75 |
| Certificate: |
ISO9001, SGS |
| Surface Treatment: |
Painting |
Product Description

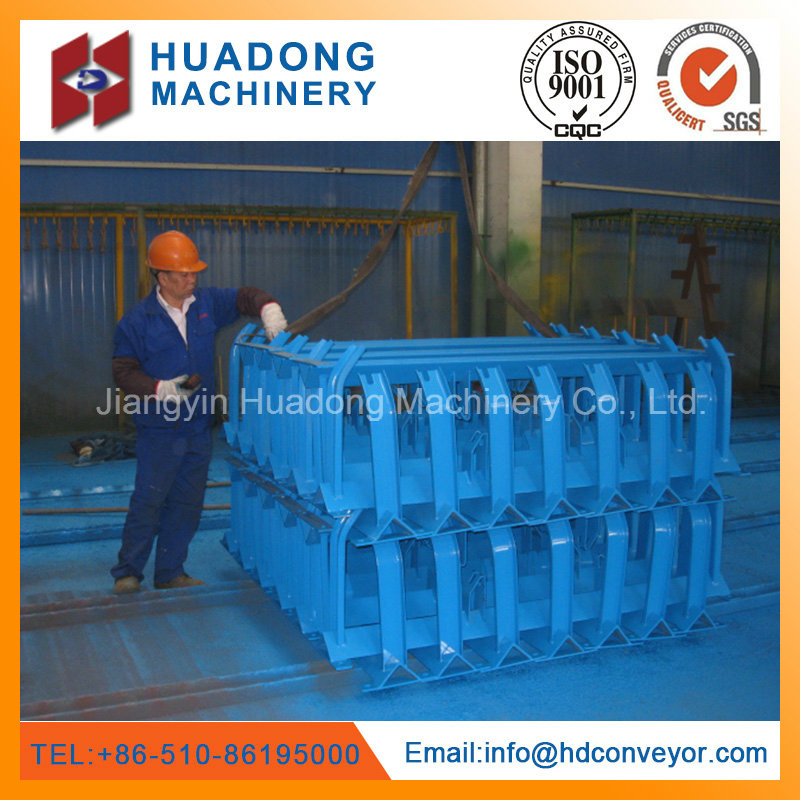

conveyor support roller frame bracketDescription of Conveyor Roller Bracket:
Roller frame is designed to provide minimum gap between rollers, and give extra protection to conveyor belt.
Details:
1 Standard: GB, ISO, CEMA, DIN, JIS
2 Base Material: Q235, Q345 steel, stainless steel, angle steel, channel steel, steel pipe, or according to customer's requirements.
3 Welding: Mixed gas shielded arc welding
4 Surface treatment: Spraying, ordinary painting, hot dipped galvanized
5 Conveyor types: DTII, DTIIA, DT75 etc
6 Belt width: from 300 to 2000mm
Advantages:
Our precision-engineered idler roller frames are specially designed to reduce the vibration and noise associated with system. These sturdy frames are fabricated from finest grade of metals that are resistant to corrosion.
All frames are inspected prior to commencing the welding run to confirm accuracy of major dimensions. Selected frames are removed from the productions run at intervals and subjected to full dimension checks and weld quality inspection.
Certificate( Safety certificates, Patents and ISO etc)
Numbers of frame types are available such as:

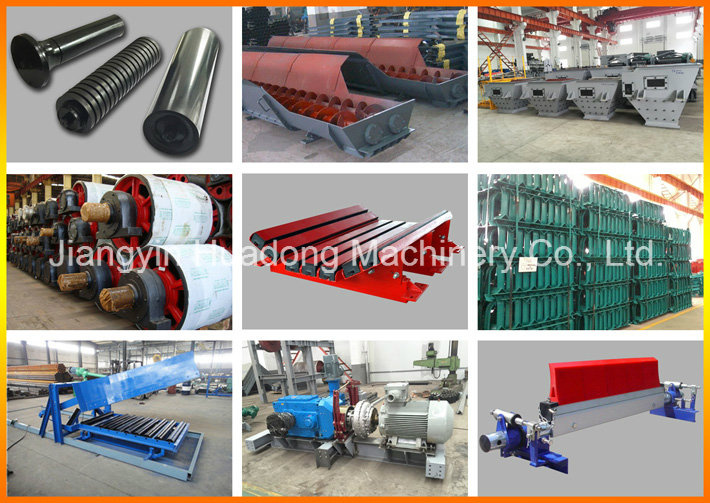

Fixed trough - inline or offset; Rolled trough - inline or offset, fied vee return; Flat return; Retractable impact sets; Adjustable impact sets; Training sets; Suspended; Pipe transoms for belt protection; Belt training assemblies; Inverted angleRelated products:

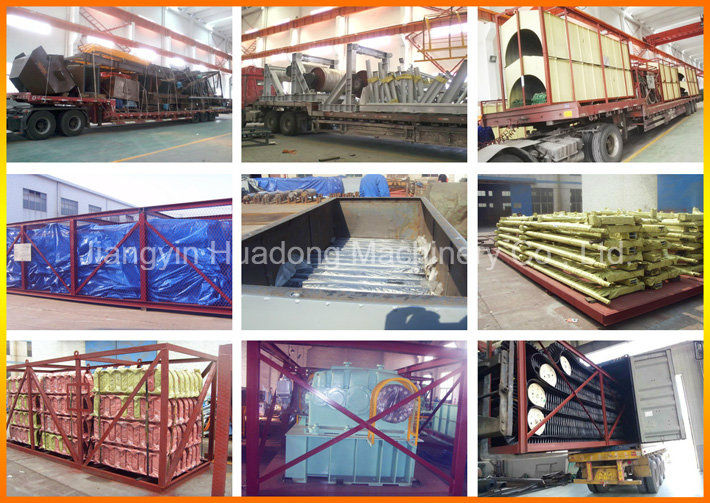

Packaging & Shipping:
Packaging: standard wooden package box, or as per your requirements
Loading Port: Jiangyin, Zhangjianggang, Shanghai, or negotiated port.
MOQ: 50 pcs
Capacity: 20,000 pcs per month
Lead time: generally, within 30-45 days, according to the order quantity as well.
Application:
1) harbor & port,
2) chemical industry,
3) metal & metallurgy,
4) coal, mining, quarry etc,
5) electric power,
6) fertilizer, salt, sugar and pulp paper etc,
7) building material and other industries.

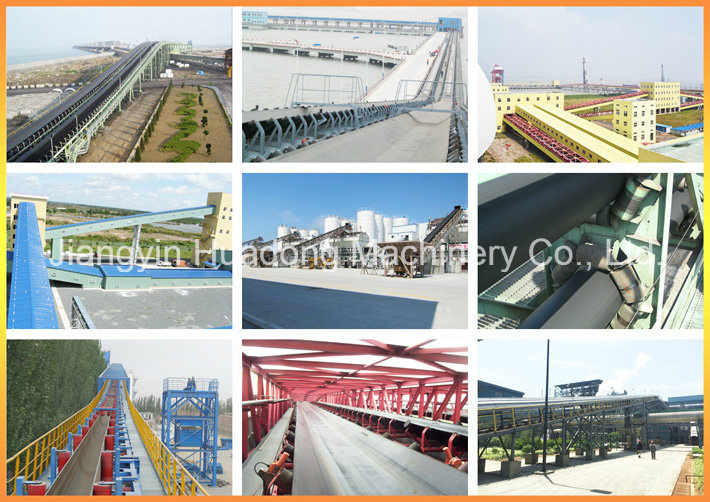

Some overseas projects:| 1 | RH/LF Furnace Project of Korea Hyundai | December 2007 | DTII-type, B=1000 belt conveyor | 3 Units |
| 2 | Secondary material, iron alloy input equipment of Korea Hyundai | January 2008 | DTII-type, B=650/1200 belt conveyor | 8 Units |
| B1200 Discharging carriage | 2 Units |
| 3 | India VSP 2*3200M3 pulverized coal injection system | October 2008 | DTII-type, B=1200 belt conveyor | 1 Unit |
| B1200 electric bilateral plow unloader | 2 Units |
| 4 | Tunisia Phosphate Project | June 2009 | DTII-type, B=1000/1200 belt conveyor | 2 Units |
| 5 | Vietnam Fertilizer Plant | February
2010 | DTII-type, B=650 ~ 1200 belt conveyor | 32 Units |
| Electric discharging carriage | 1 Unit |
| 6 | Belt Conveyor and Belt Feeder Used in Vietnam Nitrogen Expansion Project | April 2012 | DTII-type, B=650 ~ 1200 belt conveyor | 27 Units |
| 7 | Zambia Luanshya Slag Flotation Reconstruction Project | September 2013 | DTII-type, B=800 belt conveyor | 5 Sets |
| DJC1200 corrugated sidewall conveyor | 1 Set |
| 8 | Sintering, Blast Furnace and Raw Material Yard in Ironmaking System Engineering of Indonesia Iron & Steel Co., Ltd (feeding and turning system, crushing system) | December 2013 | B=650 ~ 1000 belt conveyor | 66 Units |
| B800 plow discharging device | 1 Unit |
| B800 discharging carriage | 4 Units |
General company introduction:
Founded in June 2000, Jiangyin Huadong Machinery Co., Ltd is located in National High-Tech Zone of Jiangyin City, Jiangsu Province. The company is a private joint-stock enterprise specialized in research, development and manufacturing of conveying machinery and conveyor accessories.
Our company's main products include DT75, DTII, DTII(A), DX and other types of series belt conveyors; DJ series corrugated sidewall belt conveyors; GD series tubular belt conveyors; long-distance curve belt conveyors and U-type belt conveyors. Currently, the maximum belt width of products manufactured by the company is 2,000mm.
The company is not only engaged in product research, development and manufacturing, but also undertakes turnkey engineering about design, manufacture, installation, commissioning and other systems.
FAQ for the customer:
Q: What are our main products?
A: Our company's main products include DT75, DTII, DTII(A), DX and other types of series belt conveyors, DJ series corrugated sidewall belt conveyors, GD series tubular belt conveyors, long-distance curve belt conveyors, U-type belt conveyors and conveyor components & parts.
Q: Where is our company's location?
A:We are in Jiangyin City, Jiangsu Province. It is about 2.5 hours through high-speed road from Shanghai Pudong International airport to our company.
Q:How is our customer service?
A: Our whole team is connected together to work for customer's order. Our sales department is in charge of order negotiation and keep track for order progress; our technical department provide technical parameters to customer, design and make drawings for further production; our production and quality department strictly control product quality, to provide excellent conveyor products; and our after sales department works for providing guide, installation, commissioning and maintenance service.
Q:What is the payment condition?
A. Both TT and L/C are acceptable, other conditions are negotiable.

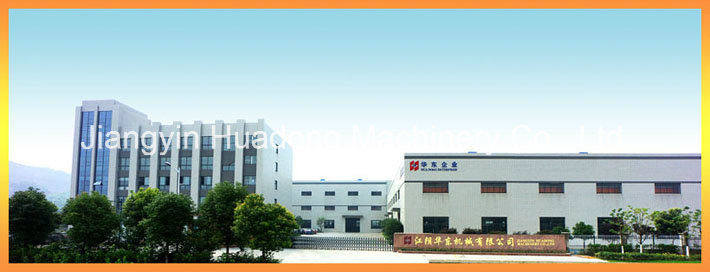

Founded in June 2000, Jiangyin Huadong Machinery Co., Ltd. is located in National High-Tech Zone of Jiangyin City, Jiangsu Province. The company is a private joint-stock enterprise specialized in research, development and manufacturing of conveying machinery and equipment. Our company covers an area of 50, 000 square meters and owns fixed assets of RMB250 million.
With the support of the government, the company set up High-Lift Conveyor Engineering Research Center and built extensive technical exchange and cooperation with Taiyuan University of Science and Technology, Northeastern University, Beijing Iron & Steel Design Institute, Beijing Materials Handling Research Institute, Germany ContiTech GmbH, UK SBS Co., Ltd, Germany Koch GmbH and other companies. In addition, the company has won 22 national patents in the product development process. The company undertaken the project of vertical conveying device on main belt equipment for feeding blast furnace from BaoSteel Group to create 1400mm bandwidth, 90° Lifting angle and 110m vertical lifting height, breaking foreign import monopoly, filling domestic gap in such sector and becoming the most excellent technical performance in Asia.

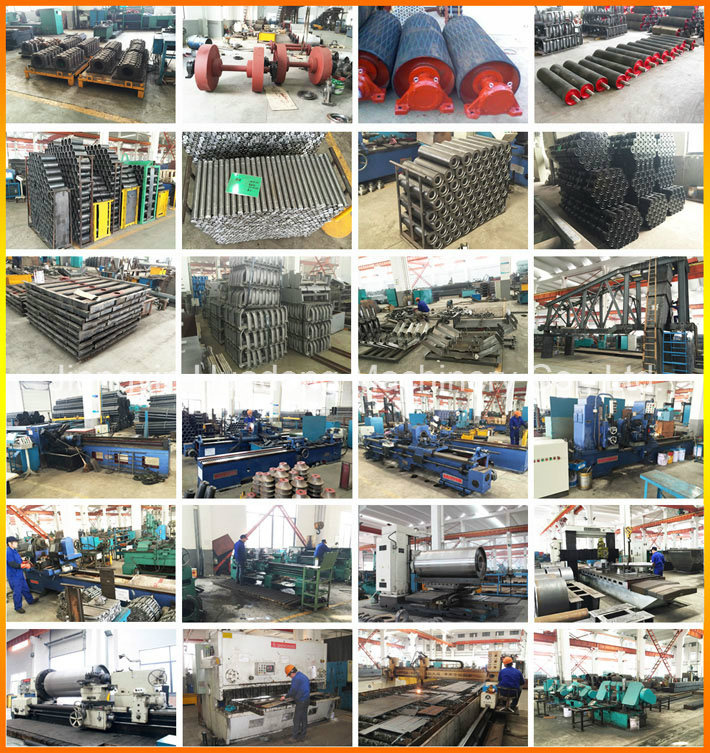

The company has strong technical force and advanced technology assembly. In addition to traditional processing equipment, the company owns domestic first-class drum and roller production lines. Roller production uses a technology of Panasonic to complete the whole process in A Line from raw materials to finished roller, so as to ensure product quality, improve production efficiency and reduce the labor intensity of workers on the site. The company also has complete testing equipment. Roller must pass five tests and inspections in accordance with national relevant standards prior to storage in warehouse. Depending on perfect quality assurance system, the company has obtained ISO9001 quality management system certification.
The company's main products include DT75, DTII, DTII(A), DX and other types of series belt conveyors; DJ series corrugated sidewall belt conveyors; GD series tubular belt conveyors; Long-distance curve belt conveyors and U-type belt conveyors. Currently, the maximum belt width of products manufactured by the company is 2, 000mm. The company's products are widely used in port, chemical, underground, coal, metallurgy, electric power, building material and other industries. The company's products are not only sold in the whole country, but also exported to Korea, Japan, Russia, Iran, Vietnam, Saudi Arabia, India, Tunisia and other countries and regions. The company not only engages in product research, development and manufacturing, but also undertakes turnkey engineering about design, manufacture, installation, commissioning and other systems.
Quality creates brilliance, design highlights strength. Over the years, the company has built a good image and won wide praises from customers in conveyor industry by relying on high-quality products and excellent services.
