| Prod Model: |
COP34 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue |
| Application: |
Down The Hole Drilling. Coal Mining |
| Brand: |
Bestlink |
| Model: |
Cop34 |
Product Description

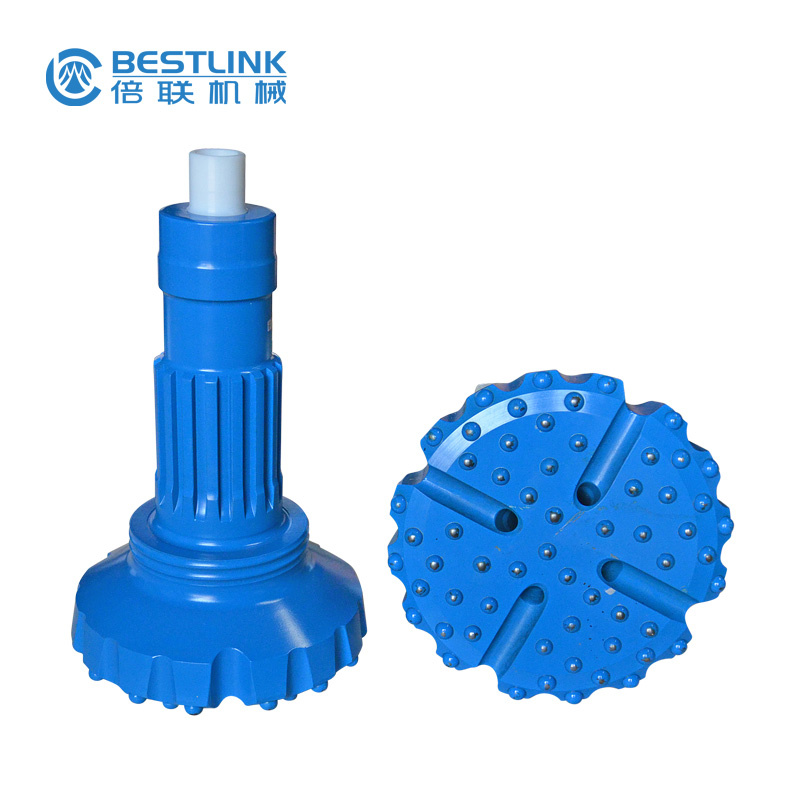

1. High and low air pressure down-the-hole drill bits
2. Low air pressure holeDia.: 65-220mm
3. High air pressure hole Dia.: 85-305mm
4. Face type: Drop center/concave/convex/double gauge/flat
5. Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts since 1980.
2. We have advanced technology and equipment.
3. Our technician has more than 25 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA,
Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
| Some BITS for referance |
| Hammer: COP 32 |
| Diameter mm | Part No. | Buttons x Button diam(Gauge outer, Gauge inner, Centre, Cone) | Gauge buttons angle o (Outer, Inner, Cone) | Flushing holes (No. x size mm) | Weight approx. kg | Foot valve Part No. |
| Flat front, HD |
| 85 | 100-5085-39,24-20 | 8x11, - ,6x11, - | 35, -, - | 2 | 4.5 | |
| 90 | 100-5090-39,24-20 | 8x11, - ,7x11, - | 35, -, - | 2 | 4.7 |
| 100 | 100-5100-39,24-20 | 8x11, - ,7x11, - | 35, -, - | 2 | 4.9 |
| SpeedBit |
| 85 | 100-5085-39-55,24-20 | 8x11, - ,6x11, - | 35 | 2 | 4.5 | |
| 90 | 100-5090-39-55,24-20 | 8x11, - ,7x11, - | 35 | 2 | 4.7 |
| 100 | 100-5100-39-55,24-20 | 8x11, - ,7x11, - | 35 | 2 | 4.9 |
| Convex front, Ballistic |
| 85 | 100-5085-39-61,24-20 | 7x11, 4x11, 2x11, - | 40, 20, - | 2 | 4.3 | |
| 90 | 100-5090-39-61,24-20 | 7x11, 4x11, 2x11, - | 40, 20, - | 2 | 4.5 |
| 100 | 100-5100-39-61,24-20 | 7x11, 4x11, 2x11, - | 40, 20, - | 2 | 4.7 |
| | | | | | | |
| | | | | | | |
| Hammer: Bulroc 3 |
| Diameter mm | Part No. | Buttons x Button diam(Gauge outer, Gauge inner, Centre, Cone) | Gauge buttons angle o (Outer, Inner, Cone) | Flushing holes (No. x size mm) | Weight approx. kg | Foot valve Part No. |
| Convex front, Ballistic |
| | 100-5090-45-61,24-20 | 7x11, 4x11, 2x11, - | 40, 20, - | 2 | 4 | |
| | | | | | | |
| | | | | | | |
| Hammer: COP 34, 34Q |
| Diameter mm | Part No. | Buttons x Button diam(Gauge outer, Gauge inner, Centre, Cone) | Gauge buttons angle o (Outer, Inner, Cone) | Flushing holes (No. x size mm) | Weight approx. kg | Foot valve Part No. |
| Flat front, HD |
| 90 | 100-5090-31,24-20* | 8x12.7, - ,7x11, - | 35, - , - | 2 | 5.8 | 9279 |
| 92 | 100-5092-31,24-20 | 8x12.7, - ,7x11, - | 35, - , - | 2 | 5.8 | 9279 |
| 95 | 100-5095-31,24-20 | 8x12.7, - ,7x11, - | 35, - , - | 2 | 5.9 | 9279 |
| 100 | 100-5100-31,24-20 | 8x12.7, - ,7x12.7, - | 35, - , - | 2 | 6.1 | 9279 |
| 105 | 100-5105-31,24-20 | 8x14.5, - ,7x12.7, - | 35, - , - | 2 | 6.3 | 9279 |
| SpeedBit |
| 92 | 100-5092-31-55,24-20 | 8x12.7, - ,7x11, - | 35 | 2 | 5.8 | 9279 |
| 95 | 100-5095-31-55,24-20 | 8x12.7, - ,7x11, - | 35 | 2 | 5.9 | 9279 |
| 100 | 100-5100-31-55,24-20 | 8x12.7, - ,7x12.7, - | 35 | 2 | 6.1 | 9279 |
| 105 | 100-5105-31-55,24-20 | 8x14.5, - ,7x12.7, - | 35 | 2 | 6.3 | 9279 |
| Convex front, Ballistic |
| 92 | 100-5092-31-61,24-20 | 7x12.7, 4x12.7, 2x12.7, - | 40, 20, - | 2 | 5.8 | |
| 95 | 100-5095-31-61,24-20 | 7x12.7, 4x12.7, 2x12.7, - | 45, 30, - | 2 | 5.9 |
| 100 | 100-5100-31-61,24-20 | 7x12.7, 4x12.7, 2x12.7, - | 45, 30, - | 2 | 6.1 |
| 105 | 100-5105-31-61,24-20 | 7x14.5, 4x14.5, 2x14.5, - | 45, 30, - | 2 | 6.3 |
| | | | | | | |
| | | | | | | |
| Hammer: COP 42 |
| Diameter mm | Part No. | Buttons x Button diam(Gauge outer, Gauge inner, Centre, Cone) | Gauge buttons angle o (Outer, Inner, Cone) | Flushing holes (No. x size mm) | Weight approx. kg | Foot valve Part No. |
| Flat front, HD |
| 105 | 100-5105-60,24-20 | 8x14.5, 7x12.7, - | 35 | 2 | 7.5 | |
| 110 | 100-5110-60,24-20 | 8x14.5, 7x12.7, - | 35 | 2 | 8.2 |
| 115 | 100-5115-60,24-20 | 8x14.5, 8x12.7, - | 35 | 2 | 8.4 |
| 130 | 100-5130-60,24-20 | 8x14.5, 10x12.7, - | 35 | 2 | 9.3 |
| 140 | 100-5140-60-1218,08-20 | 8x14.5, 9x12.7, - | 35 | 2 | 9.3 |
| SpeedBit |
| 105 | 100-5105-60-55,24-20 | 8x14.5, - ,7x12.7, - | 35 | 2 | 7.5 | |
| 115 | 100-5115-60-55,24-20 | 8x14.5, - ,8x12.7, - | 35 | 2 | 8.4 |
| Convex front, Ballistic |
| 105 | 100-5105-60-61,24-20 | 7x14.5, 4x14.5, 2x14.5, - | 40, 20, - | 2 | 7.5 | |
| 110 | 100-5110-60-61,24-20 | 7x14.5, 4x14.5, 2x14.5, - | 40, 20, - | 2 | 7.8 |
| 115 | 100-5115-60-61,24-20 | 7x14.5, 4x14.5, 3x14.5, - | 40, 20, - | 2 | 8 |
| 130 | 100-5130-60-61,24-20 | 9x12.7, 6x12.7, 5x12.7, - | 40, 20, - | 2 | 9 |
| | | | | | | |
| | | | | | | |
| Hammer: COP 44,440 Ingers oil-Rand DHD 340A, DH4, Minroc 4 valveless, Compair Holman VOL 400 |
| Diameter mm | Part No. | Buttons x Button diam(Gauge outer, Gauge inner, Centre, Cone) | Gauge buttons angle o (Outer, Inner, Cone) | Flushing holes (No. x size mm) | Weight approx. kg | Foot valve Part No. |
| Flat front, HD |
| 105 | 100-5105-34,24-20 | 8x14.5, - ,7x12.7, - | 35, - , - | 2 | 8.6 | |
| 110 | 100-5110-34,24-20 | 8x14.5, - ,7x12.7, - | 35, - , - | 2 | 8.7 |
| 115 | 100-5115-34,24-20 | 8x14.5, - ,8x12.7, - | 35, - , - | 2 | 9 |
| 125 | 100-5125-34,24-20 | 8x14.5, - ,10x12.7, - | 35, - , - | 2 | 10.5 |
| 130 | 100-5130-34,24-20* | 8x14.5, - ,10x12.7, - | 35, - , - | 2 | 11 |
| 140 | 100-5140-34-1218,08-20* | 8x16.0, - ,9x14.5, - | 35, - , - | 2 | 11.5 |
| | | | | | | |
| | | | | | | |
| Hammer: COP 44,440 Cont. |
| Diameter mm | Part No. | Buttons x Button diam(Gauge outer, Gauge inner, Centre, Cone) | Gauge buttons angle o (Outer, Inner, Cone) | Flushing holes (No. x size mm) | Weight approx. kg | Foot valve Part No. |
| SpeedBit |
| 110 | 100-5110-34-55,24-20 | 8x14.5, - ,7x12.7, - | 35, - , - | 2 | 8.7 | 9237 |
| 115 | 100-5115-34-55,24-20 | 8x14.5, - ,8x12.7, - | 35, - , - | 2 | 9 | 9237 |
| 125 | 100-5125-34-55,24-20 | 8x14.5, - ,10x12.7, - | 35, - , - | 2 | 10.5 | 9237 |
| 130 | 100-5130-34-55,24-20 | 8x14.5, - ,10x12.7, - | 35, - , - | 2 | 11 | 9237 |
| Convex front, Ballistic |
| 105 | 100-5105-34-61,24-20 | 7x14.5 4x14.5 2x14.5, - | 40, 20, - | 2 | 8.2 | 9237 |
| 110 | 100-5110-34-61,24-20 | 7x14.5 4x14.5 2x14.5, - | 40, 20, - | 2 | 8.4 | 9237 |
| 115 | 100-5115-34-61,24-20 | 7x14.5 4x14.5 3x14.5, - | 40, 20, - | 2 | 8.5 | 9237 |
| 115 | 100-5115-34-2234,08-20 | 8x12.7 4x12.7 3x12.7, - | 45, 30, - | 2 | 9 | 9237 |
| 125 | 100-5125-34-61,24-20 | 9x12.7 6x12.7 5x12.7, - | 40, 20, - | 3 | 9.1 | 9237 |
| 130 | 100-5130-34-61,24-20* | 9x12.7 6x12.7 5x12.7, - | 40, 20, - | 3 | 9.3 | 9237 |
| Reaming bit for 104-115 mm pilot holes |
| 165 | 100-5165-34-9102,08-20 | 14x16 | 35 | 2 | 15.9 | 9237
|
