| Prod Model: |
COP42 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Prodrill |
| Model Number: |
Button Bits |
| Machine Type: |
Drilling Tool |
| Processing: |
Forging |
| Color: |
Red, Black, Yellow, White |
| Type: |
Drill Bit |
| Material: |
Carbide |

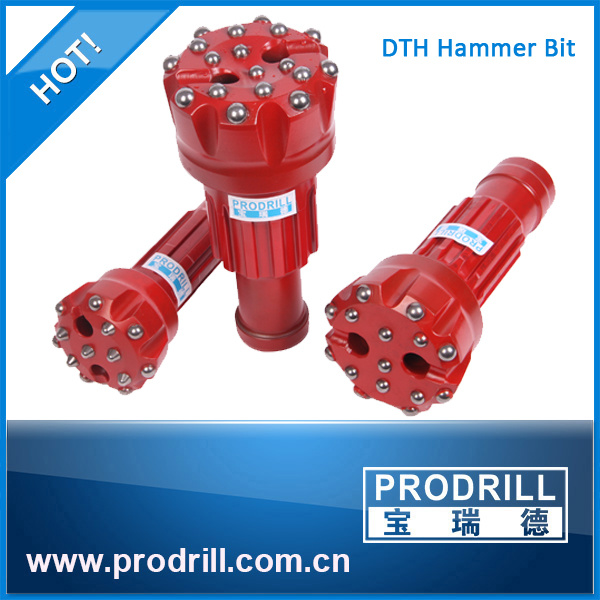

Product Description
(1) Made from premium quality nickel-alloy steel 25SiMnCrNi2MoVA
for increased durability and wear characteristics, and YK 05 tungsten
carbide as same grade as internationally well-known brand
(2) Apply "hot (thermal) -insertion" processing procedure to
insert the buttons as same as internationally well-known brand,
(3) Entire CNC processing procedure ensure the quality consistency and reliable.
(4) Military grade requirements of heat-treatment guarantee durability,
Specific heat treatment standards and special "stress relief" processes ensure
consistent performance.
(5) Designed for maximum performance and hole cleaning ability and high penetration rate.
Pro Drill DTH bits are interchangeable with Atlas Copco's COP32 34 44 54 64 84,
Ingersoll-Rand 's DHD3.5,DHD3.5HD, DHD 340A , DHD350R, DHD 360, DHD380
QL40, QL50 , QL60, QL80. COP32,44, Mission80,SD8,10, Mincon,Mach, Numa
| Specification: | Diameter: (mm) | Weight: (kg) |
| Low air pressure DTH bits CIR type | 68 ~ 200 | 2.6 ~ 48 |
| Middle air pressure BR & COP type | 76 ~ 110 | 3.8 ~ 15 |
| 3 inch high Air pressure DTH bits | 85 / 90 / 95 / 100 / 105 | 4.2 ~ 5.5 |
| 4 inch high Air pressure DTH bits | 105 / 110 / 115 / 120 / 127 | 9 ~ 12 |
| 5 inch high Air pressure DTH bits | 133 / 140 / 146 / 152 / 165 | 15 ~ 18.5 |
| 6 inch high Air pressure DTH bits | 152 / 165 / 178 / 190 / 203 | 26 ~ 36 |
| 8 inch high Air pressure DTH bits | 195 / 203 / 216 / 254 / 305 | 33 ~ 95 |
Main Products:
1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters
Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
.
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
