| Prod Model: |
BJ2100 |
| Main Material: |
Stainless Steel, Aluminium Alloy |
| Color: |
Slivery |
| Applicate: |
for Surgery Use |
| Certificate: |
Ce, FDA, ISO |
| Packing: |
Sterilized Case or Carton Case |
| Type: |
Saw |
| Application: |
Orthopedic |
| Material: |
Steel |
| Feature: |
Reusable |
| Certification: |
ISO13485 |
| Group: |
Adult |

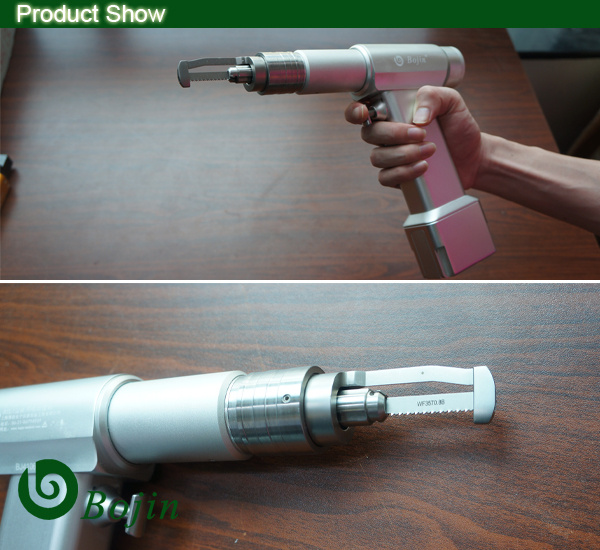

Product Description
Application:
For application in knee joint surgery and hip surgery operated by robot.
With the perfect shape of ergonomic design, whole unit is autoclavable, motor is imported, low noise, steadily and quickly cutting, no damage for soft tissue, long service life, be warranty for 1 year.
Specification:
Output power
95W
Speed(r. P. M)
/
Oscillations (osc/min)
0-16000
Torque(Nm)
/
Operation(V) voltage
14.4
Sterilization
155° C
Swings (° )
/
Noise(dB)
≤ 70
Company Information
Company Information
| Basic Information |
| Company Name | Shanghai Bojin Medical Instrument Co., Ltd. |
| Business Type | Manufacturer exporter |
| Product/Service | Surgical Power Tools & Accessories/ Portable X-Ray Fluoroscopy Instrument |
| Number of Employees | 101 - 200 People |
| Brand Names | Bojin |
| Year Established | 1993 |
| Factory Size (Sq.meters) | 3000-5000 square meters |
| Factory Location | No. 125, Longpan Road, Jiading Dist,Shanghai,China |
| QA/QC Responsibility | In House |
| Number of R&D Staff | 5 - 10 People |
| Nnmber of Engineers staff | 5-10 |
| Monthly Capacity | 500 to 999 Pieces |
Standard Configuration:
1. One handpiece
2. One battery
3. One charger
4. One saw blade
5. One Aseptic battery transfer ring
6. One Operating manual
7. One Guarantee Card
Warranty:
The handpiece guarantees for one year, the battery and other fast consumption items guarantee for 3 months.
Advantages:
1. Our whole power tool can be autoclavable.
2. We can autoclavable for 135 ° C (Improved type ≤ 155 ° C ), with 1.6Mpa, in this way the bacilli and virus which can not killed bythe suffocating will be killed.
3. We use environment friendly nickel-metal hydride battery.
4. The machine has very low noise.
5. Our products has 1 year warranty period.
Notes:
1. Sterilize temperature ≤ 135 ° C (Improved type ≤ 155 ° C ), if the temperature is over 135 ° C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm, acetabulum reaming drill with big torque, rpm is around 300, canulate drill is used with nail or K wire, rpm is around 600.
3. The battery need to be get out of the pwer tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
4. The battery cannot be sterilized, it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur, then we should make it dry.
6. The battery space in the handpiece of the tool should not have any water, after sterilization.
7. The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be attrite, we suggest each blade only use for 1 surgery.
