| Prod Model: |
HFP200 |
| Power Engine: |
Kubota D1105.T, 23.5kw/3000rpm |
| Maximum Torque: |
400n.M |
| Maximum Rotation Speed: |
1300rpm |
| Average Speed: |
150m/Min |

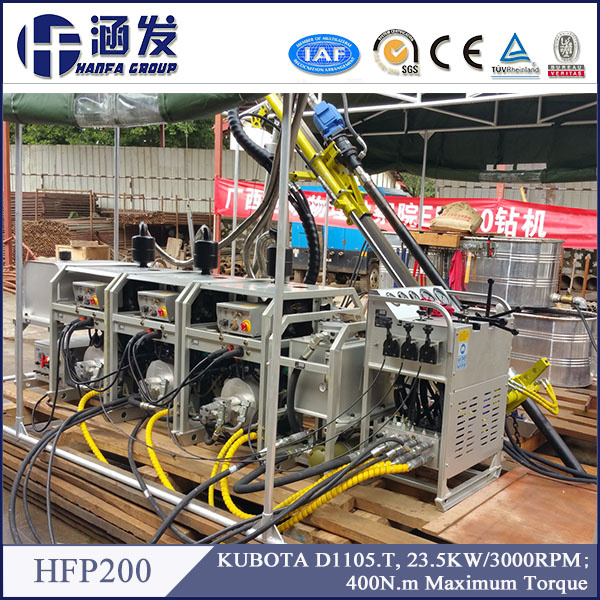

Product Description
core sample drilling machine/geological sample machine
Fields of Application
HFP200 is widely used in mineral exploration, infrastructure construction (i.e.railway, road and bridge, etc.), hydraulic and hydropower project, tunnelexploration and geographical investigation. It works particularly well in areaswith complex geographic characteristics such as mountainous regions, forestsand plateaus. It is the ideal drilling rig when operating in hard-to-accessareas within a depth of 200 meters, executing small projects, conductinginitial investigations and working on tight schedules.
Key Characteristics
1.Light weight -Modulized design with the heaviest pieceweighing only 120kg
2.Aviationaluminum materials used for more than 90% of the framework
3.Fast - Easy to relocate with thecapability of being assembled/disassembled within only 20 minutes
4.Thin wall rods, low resistance,and speed penetration
5.Excellent - Long stroke cylinder, easier to control than the chain
6.Global leading brands ensuring stability andreliability
7.Cost-efficient - No road construction; No infrastructure construction; Time saving
Hydraulic coring and drilling; No drilling tower; Energy saving
Environmentally friendly;Worry-free
Low consumption;Cost saving
HFP200 High lights
The key issue regardingthe traditional portable and vertical drilling machines, when executingprojects with a depth of 200 meters, is the balance of light weight and efficiency. With its light weight, easy assembling/dissembling capability andhigh efficiency, HFP200 is your best new choice.
Technical Data
| Drilling depth capacity | HQ/NTW/BTW | 30/100/200m |
| Hole Diameter | Rod Length 1.0m | 96/75.7/60mm |
| Core Diameter | | 63.5/56/42mm |
| Power engine | KUBOTA D1105.T, 23.5KW/3000RPM |
| Hydraulic system | American Parker valve,water cooler |
| Maximum pressure 20Mpa/max,Maxium flow 54L/min |
| Top drive rotation head | Maximum torque | 400N.m |
| Maximum rotation speed | 1300rpm |
| Feed travel | 1.27m |
| Pull/Thrust | 33KN/24KN(Single cylinder) |
| Winch | Average speed | 150m/min |
| Lift | 600kg |
| Were Diameter | 5mm |
| Were accommodation | 240m |
| Mast | Height of the mast on 90 degree | 3.8m |
| Drilling angle | 45º-90º(standard ) |
| 0º-90º(option ) |
| Size and weight | Platform area/Module quantity | 3m×3m/6 piece |
| Gross/Maximum module | 605kg/120kg |
Production ability
We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client's recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
Customers visit our factory
With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients' visits and our clients' on-the-site operation.
About the product Packing
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80, HF150E, HF150, HF200, HF30: Wooden case
HF-3, HF-4, HFDX-6. HF-8, HFT200, HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
Quality guarantee
Our products has been authorized and certified by TUV and ISO9001: 2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory
