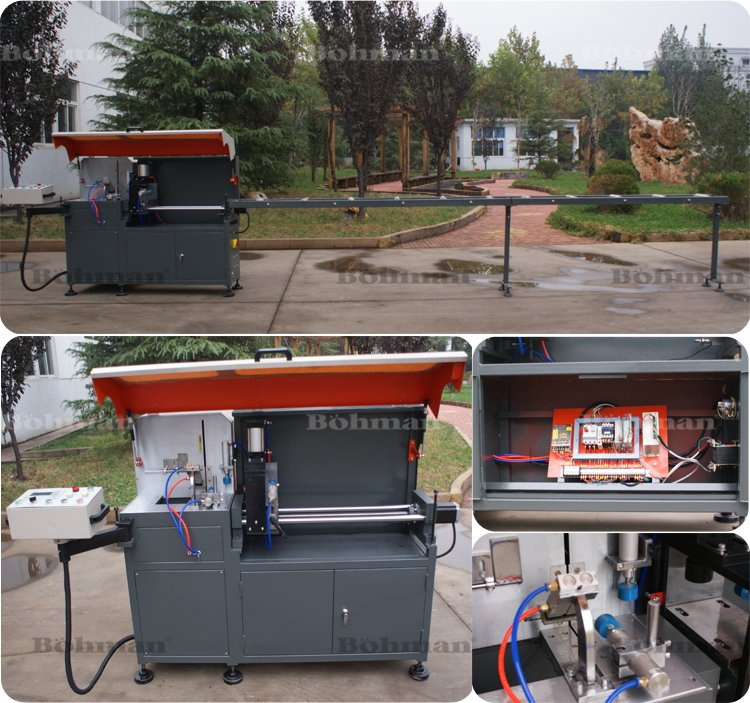

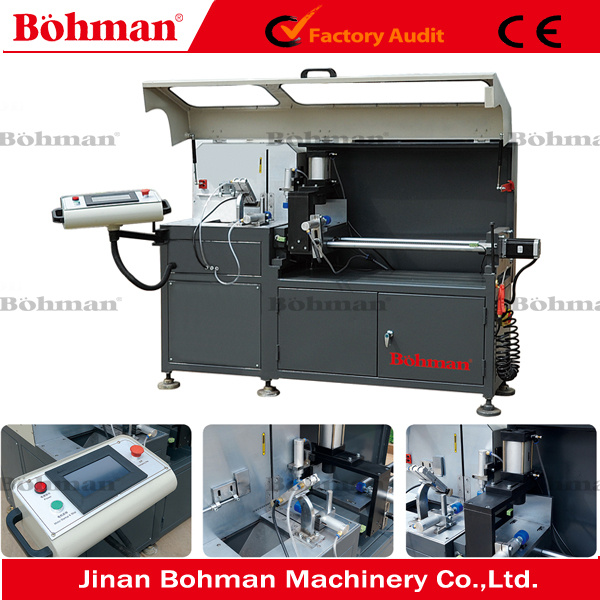

Production Name: Auto Aluminum Corner Connector Cutting Saw
Features: ♦ It has features of easy operation reliable performance advanced technique and convenient maintenance. ♦ Used for cutting of the corner profiles for aluminum doors and windows. ♦Only one time clamping,can achieve 6 meters corner section bar continuous Cutting. ♦The use of imported control system.Control system adopts the man-machine interface,high automation degree. ♦ Imported carbide saw blade is of high cutting speed, accurate processing and high efficiency. ♦Feed motion using linear motion bearing small movement resistance of high precision. ♦Feeding machanism of automatic feeding system is stable and reliable with high efficiency. ♦Work clamping,cutting and uses the pneumatic control system,convenient operation,safety and reliability ,high productivity.
Technical Parameters:
Power Supply
380V 50Hz
Cutting Motor Power
3.2kw
Motor Rotary Speed
2800r/min
Operation Air Pressure
0.5-0.8mpa
Auto-feeding Length
5-700mm
Air Consumption
80l/min
Cutting Speed
0-3m/min
Blade Specification
Ø500*Ø30*4.4 mm
Cutting width*height
135*300
Outside Dimension
1680*1650*1200mm
Weight
800kg
Jinan Bohman Machinery Co., Ltd., located in West-high Speed Railway Station, Jinan City, Shandong Province, is a high-tech enterprise specialized in the research, manufacture and sale of aluminum-plastic door & window production equipment, high and medium grades of insulating glass production equipment and CNC router. Our products sell very well in China and are exported to many foreign countries and regions. We have many experienced technical engineers and experts who have been worked in this industry for many years. We are familiar with the situation of this industry at home and abroad. We have mastered the latest technique of the similar equipment, and have got strong ability of product research and technique support.
Based on the modern technique, we have produced all kinds of aluminum-plastic door & window production equipment and high and medium grade insulating glass production equipment, with modern technology and stable performance. Our main products are saw cutting equipment, milling equipment, angle seam cleaning equipment, angle joint equipment, various specifications of vertical insulating glass production lines, glass curtain wall production lines, LJT butyl coating machines, GT03 bicomponent rubber spreading machines, compound sealing spacer insulating glass production lines and all kinds of auxiliary equipment.
By virtue of specialized production, good quality and excellent after-sales service, Bohman has got wide recognition and praise from customers at home and abroad. Since the establishment of our company, we have taken "being an honest enterprise, producing the best equipment" as our tenet and taken the quality of our products as the lifeline of our enterprise. We also focus on the research and development of energy saving and environmentally friendly products, try to make the best equipment for manufacturing aluminum-plastic doors & windows and insulating glass and make Bohman a world famous brand.
