Corrguated Box Die Cutter Machine

Corrguated Box Die Cutter Machine
Price: US $ 7500-15000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: ML-1300-1400-1500
Inner Chase Size: 1300*920mm
Max.Rule Length: Less Than 40m
Speed: 16 Strokes/Min
Imprinting Type: Platen
Placing Form Of Template: Vertical
Die Cutting Tool: Steel Blade
Automatic Grade: Semi-Automatic
Application: Earthquake Products

Product Description

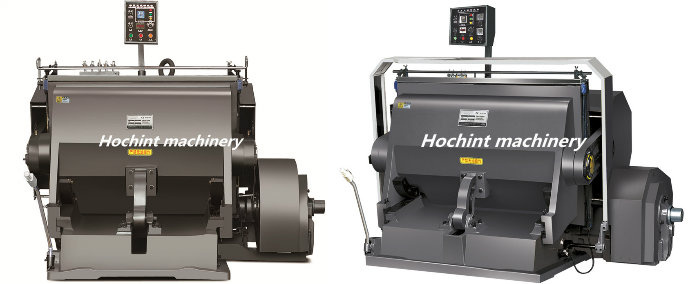

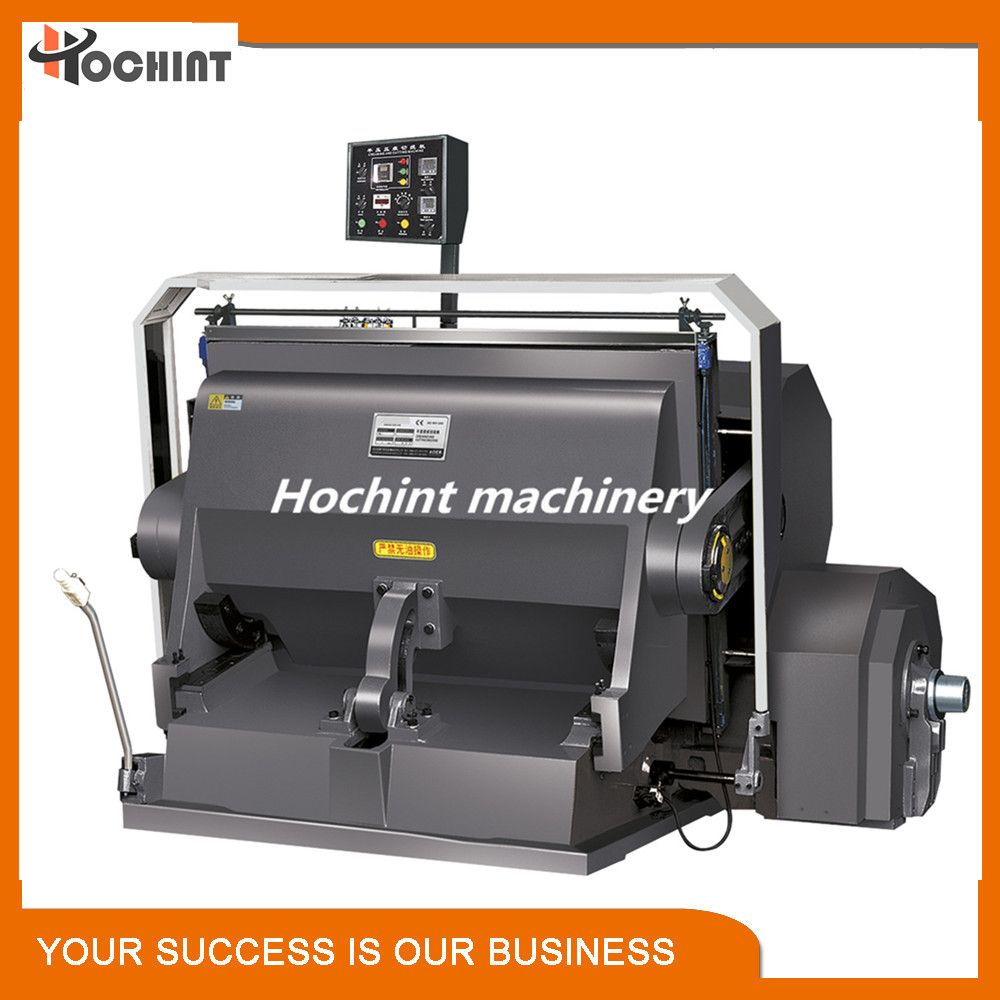

ML-1300-1400-1500 Creasing and die Cutting Machin

Brief introduction

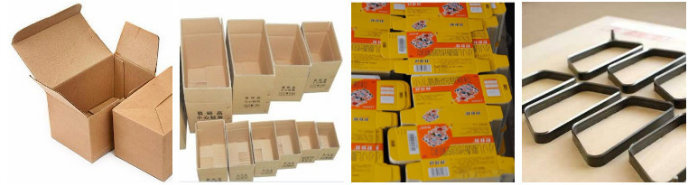

ML-1300-1400-1500 manual vertical die cutting machine is used for die cutting and creasing various paper, paperboard, corrugated board, plastic sheet (like PVC, PP), with functions of single pressing & cutting, continuous pressing & cutting and open time-delay, time delay range is adjustable.
It is equipped with central lubrication system and automatic oil pump. The body of machine is made of high strength casting iron. The torque of flywheel is big with higher force of press.
According to the customer's different requirements, it can be equipped with infrared control device, CE safety guard device, heating plate (for die cutting plastic sheet), pneumatic clutch or frequency convertor (speed adjustment).
Standard configuration
Stainless steel plate; automatic central lubrication device (automatic oil pump)
Optional configuration
CE safe guard; Infrared ray device; Schneider or Siemens electric; NTN/NSK bearing; ABB motor;


Technical parameters
ModelInner Chase Size(mm)Speed
strokes/min
Max.Rule Length(m)Motor PowerWeight(t)Overall Dimensions(mm)
ML750750*52026±2<152.2kw2.01350×1500×1600
ML930930*67023±2<254kw3.01650×1850×1650
ML10401040*72023±2<304kw3.51750×2000×1650
ML11001100*80020±2<324kw4.51950×2100×1750
ML12001200*82020±2<354kw4.82000×2100×1750
ML13001300*92016±2<405.5kw6.22350×2100×1700
ML14001400*100015±2<455.5kw6.82450×2100×1800
ML15001500*105014±2<485.5kw7.52550×2100×1800
ML16001600*125013±2<5011kw122780×2300×2400
ML18001800*130013±2<6011kw142980×2300×2500
ML20002000*140013±2<6515kw163180×2400×2580
ML22002200*140013±2<7015kw183380×2400×2580
ML25002500*140011±3<8022kw203680×2400×2580
ML28002800×160011±3<8530kw224000×2400×2580
ML30003000×160011±3<9030kw244200×2400×2580
Features
1.Sliding bearings are made of high quality alloy cooper, thus to get effect of anti-friction and shake reducing.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged, moving-bed can be opened to its optimum.
7.Safety system is reliable.
8.It can equip inner and outer movable frame and central lubrication device.

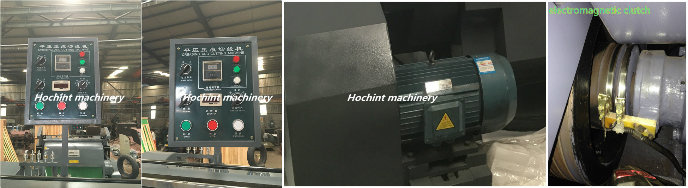

Configuration features

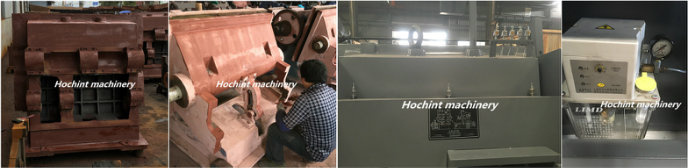

1. The body of the machine adopts high strength casting iron made by resin sand casting.
2. Lubrication system and automatic oil pump.

3. Control panel, with functions of single pressing & cutting, continuous pressing & cutting and open time-delay, time delay range is adjustable.

4. Single-disc electromagnetic clutch moves fast and reliable.

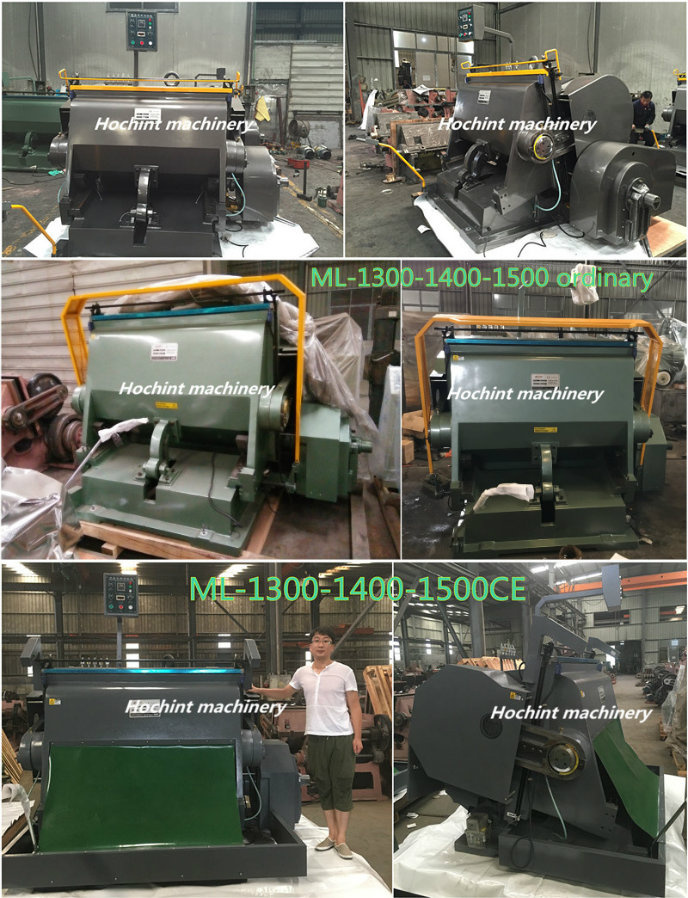

Machine display
According to the customer's different requirements, it can be equipped with infrared control device, CE safety guard device, heating plate (for die cutting plastic sheet),automatic oil pump or manual oil pimp,pneumatic clutch or frequency convertor (speed adjustment).

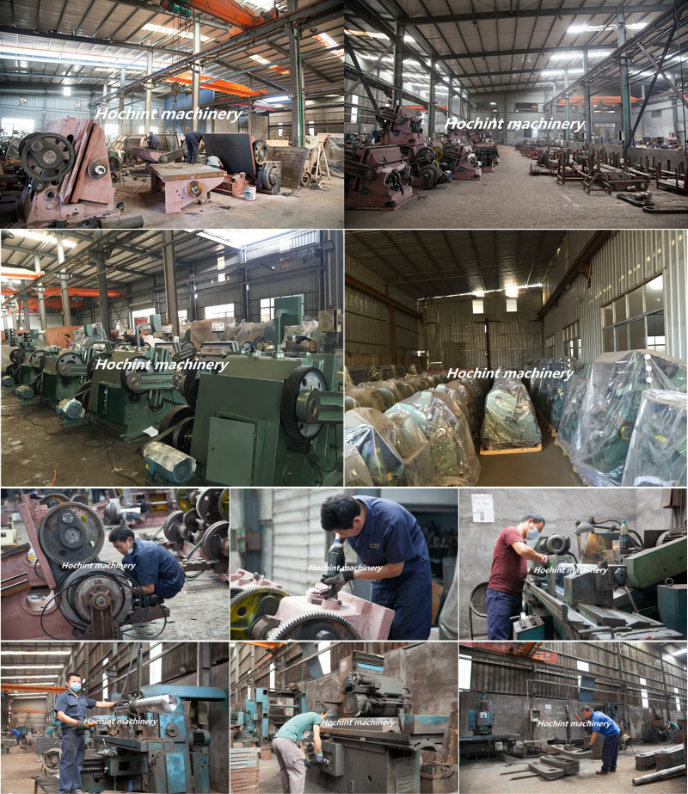

Workshop

Pre-sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Warranty
Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
All our machines have CE certificates and passed ISO9001-2008

Welcom you visit our factory to test machine by yourself!

Ruian Hochint Xinxing Machinery Co., Ltd is a professional manufacturer of paper products equipment, who is committed to the sheet-fed printing surface processing equipment, and strives to produce stable quality, high efficiency and energy saving and simple operation automatic equipment;

Ruian Hochint Xinxing Machinery Co., Ltd has been developing successfully multi-function machine with high efficiency and energy-saving design concept of the products are:

Automatic vertical type film laminating machine, automatic thermal laminating machine, semi auto vertical type film laminating machine, semi auto thermal laminating machine, water base laminating machine, UV coating machine, paper calender machine, etc.
