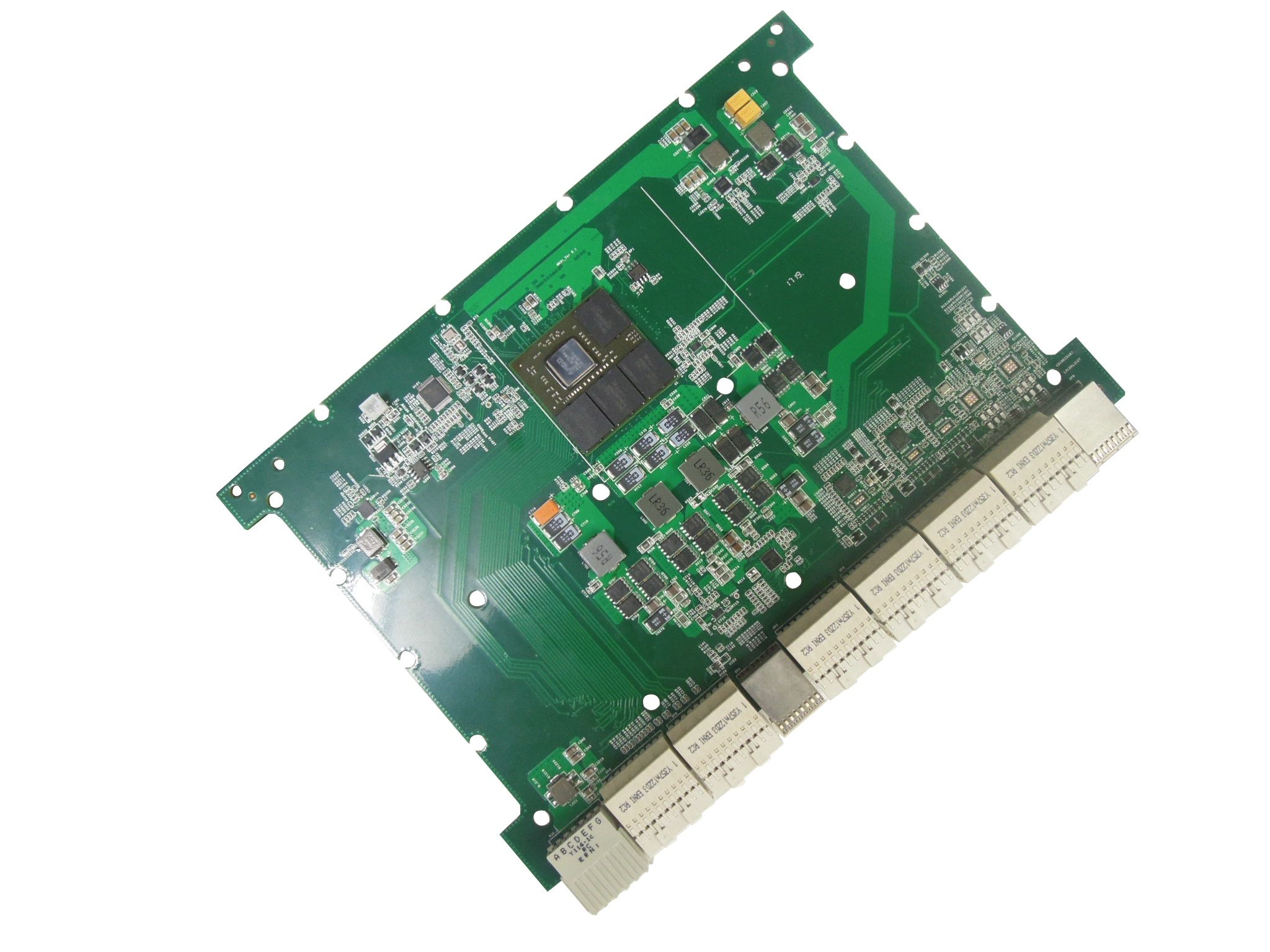

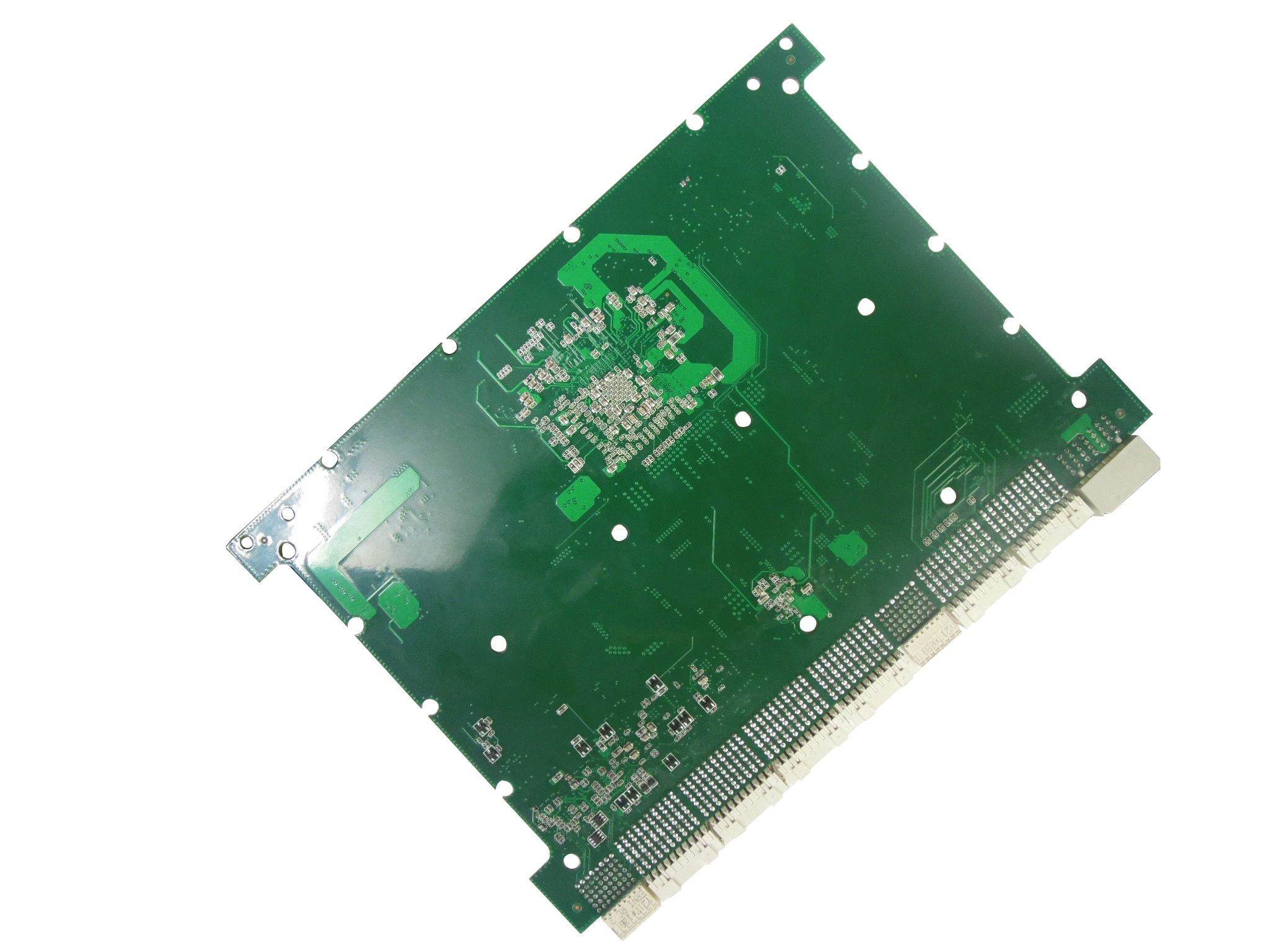

Cpci E6760 Mxm Graphic Card with Design of Dimension 6u, Embedded Chipset, Used in Military/Aerospace Industry

Cpci E6760 Mxm Graphic Card with Design of Dimension 6u, Embedded Chipset, Used in Military/Aerospace Industry
Price: US $ 640-660/Piece
Min Order: 500/Piece
Pay Type: T/T
Prod Model: CPCIe E6760
Shader Processing Units: 480 Shaders
Engine Clock: 600MHz
Power Consumption: 42W
Operating Temperature: 0ºC~55ºC
Unified Video Decoder: Uvd3 for H.264, Vc-1, MPEG-2,MPEG-4 Part 2 Decode
Supported Technologies: Opengl 4.1,Opencl1.1,Directx11,Shader Model 5.0
Graphics Card: Dedicated Graphics Card
Video Memory Type: DDR5
Chip: AMD
Memory Bus: 128 Bit
3D API: DirectX 11
Video Memory Capacity: 1g
Interface Type: Cpcie
Output Type: Cpcie
Bus Standard: Cpcie
Heat Dispatch Method: Option

Product Description

Stability is our ultimate demand .
We will try our best to ensure the stability of the system and the stability of the assembly.


1. Full-time RD is responsible for line, Layout and debug .Be different from ordinary trader/imitation solution outsourcing.

2. Integrate GPU resources and provide CPU and GPU solutions.

3. Rigorously use material and requires high quality (PCB layer number, power supply IC), reduce repair and avoid random instability.





Model

CPCIe E6760

Chip

AMD Embedded E6760 40nm

Memory

1GB GDDR5 128bit

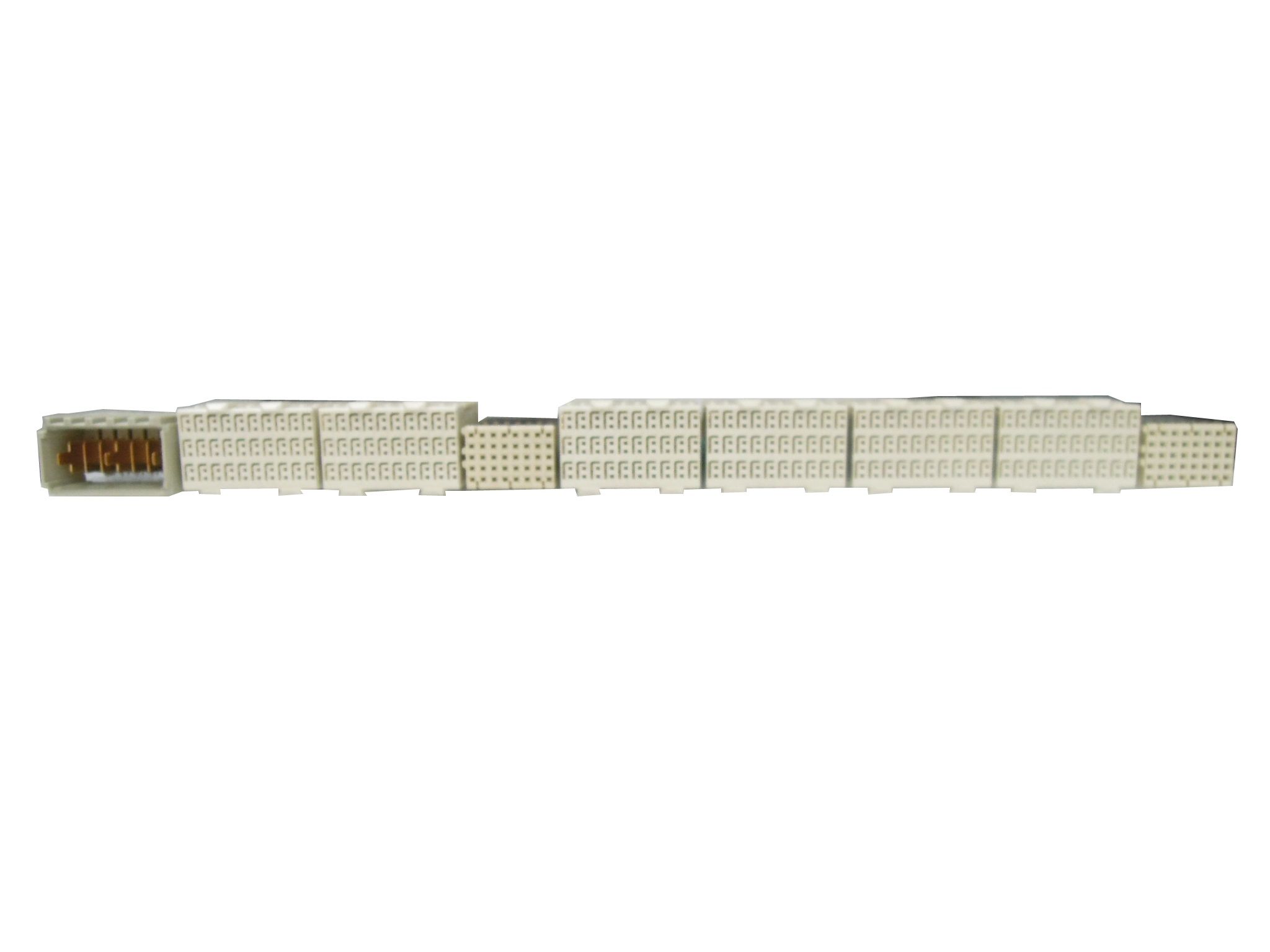

Connect

ERNI254018*1 PCS

ERNI973028*6 PCS

ERNI204975*2 PCS

Shader Processing Units

480 Shaders

Engine Clock

600MHz

Memory Clock

800MHz/3.2Gbps

Board Dimensions

6U (160x233mm)

Power Consumption

42W

Operating Temperature

0ºC~55ºC

Unified Video Decoder

UVD3 for H.264, VC-1, MPEG-2,MPEG-4 part 2 decode

Supported Technologies

OpenGL 4.1,OpenCL1.1,DirectX11,Shader Model 5.0










Our company is a collection research and development, production and sales as one of the high-tech enterprises. Factories existing more than 500 employees, our factory is AMD demonstrated through the factory, and AMD has many years of cooperation. We mainly to research and development, production and sales of AMD, Intel motherboards, computer-based digital products. All of our boards are made of high quality materials and fine manufacturing process. We will pass the QC rigorous test: Performance, compatibility, stability, power supply adaptability, high temperature and electromagnetic compatibility are strictly tested, The factory pass rate of 100%. Over the past few years, Shenzhen ZRT Technology Co., Ltd. is mainly engaged in export business, I Division in 2006 to enter the domestic market, we will be high quality, low price and perfect after-sales service for the majority of computers Lovers service; We will make good efforts, forge ahead to develop and produce a series of inexpensive products. In order to better develop the domestic market, welcome to the majority of PC dealers and our cooperation and common development.
