Crane Conductor Bar System Enclosed Power Rail Trolley
| Price: |
US $ 3/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
HXTS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current: |
50A-300A |
| Max. Voltage: |
660V |
| Conductor Quantity: |
3-16 |
| Housing: |
PVC, Aluminum Alloy |
| Type: |
Enclosed |
| Application: |
Cranes,Monorails,Electric Hoists,Ele |
| Conductor Material: |
99.99% Electrolytic Copper |
| Insulation: |
PVC |
| Color: |
Orange, Green |
| Standard Length: |
4m |

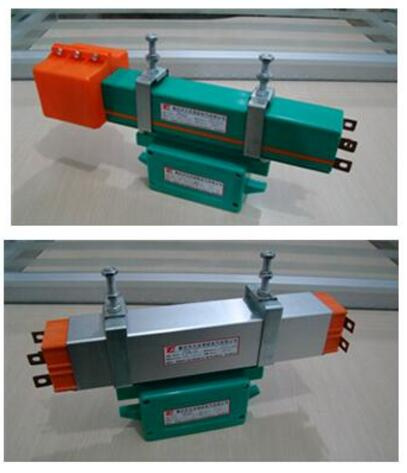

Product Description
*Advantages& Features
-Compact design, save space, easy to install and maintenance
-Stable performence and high conductivity.
-Flexible, Insulated and Safety
- With Aluminum alloy protection, corrosion resisting and long life.
*Specifications
-Number of poles: 3, 4, 5
-Rated Current: 50A, 80A, 120A, 140A, 210A
-Conductor material: Electrolytic copper
-Standard length: 4m
*Technical parameters | S/N | Type | Model No. | Number Of Pole | Cross Section(mm) | Rated Current |
| 1 | HXTS-4-10/50 | 68TS57410 | 4 | 10 | 50 |
| 2 | HXTS-3-10/50 | 68TS57310 | 3 | 10 | 50 |
| 3 | HXTS-4-16/80 | 68TS57416 | 4 | 16 | 80 |
| 4 | HXTS-3-20/100 | 68TS57320 | 3 | 20 | 100 |
| 5 | HXTS-4-35/140 | 68TS57435 | 4 | 35 | 140 |
| 6 | HXTS-3-50/170 | 68TS64350 | 3 | 50 | 170 |
| 7 | HXTS-4-50/170 | 68TS64450 | 4 | 50 | 170 |
| 8 | HXTS-4-25/120 | 68TS57425 | 4 | 25 | 120 |
| 9 | HXTS-4-70/210 | 68TS64470 | 4 | 70 | 210 |
| 10 | HXTS-3-10/50 | 68TS57310 | 3 | 10 | 50 |
| 11 | HXTS-3-95/300 | 68TS75395 | 3 | 95 | 300 |
| 12 | HXTL-4-16/80 | 68TL66416 | 4 | 16 | 80 |
| 13 | HXTL-5-10/50 | 68TL66510 | 5 | 10 | 50 |
| 14 | HXTL-3-10/50 | 68TL66310 | 3 | 10 | 50 |
| 15 | HXTL-3-20/100 | 68TL66320 | 3 | 20 | 100 |
| 16 | HXTL-4-20/100 | 68TL66420 | 4 | 20 | 100 |
| 17 | HXTL-4-35/140 | 68TL66435 | 4 | 35 | 140 |
| 18 | HXTL-3-50/170 | 68TL66350 | 3 | 50 | 170 |
| 19 | HXTL-4-50/170 | 68TL66450 | 4 | 50 | 170 |
| 20 | HXTL-4-10/50 | 68TL66410 | 4 | 10 | 50 |
| 21 | HXTL-4-70/210 | 68TL66470 | 4 | 70 | 210 |
| 22 | HXTL-3-25/120 | 68TL66325 | 3 | 25 | 120 |
| 23 | HXTL-3-95/300 | 68TL66395 | 3 | 95 | 300 |
1. Conductor rail: 4m/piece
2. End Feeder: one piece for one line
3. Sliding Hanger: Max. distance 1.3m
4. Fixing Support: Max. distance 1.3m
5. Line Feed/Middle Feeder: one piece each line
6. Hanger Clamp: Max. distance 1.3m
7. Joint Cover: one piece each 4m
8. End Cap: piece one line
9. Current Collector
10. Current collector holder/Tow Arm

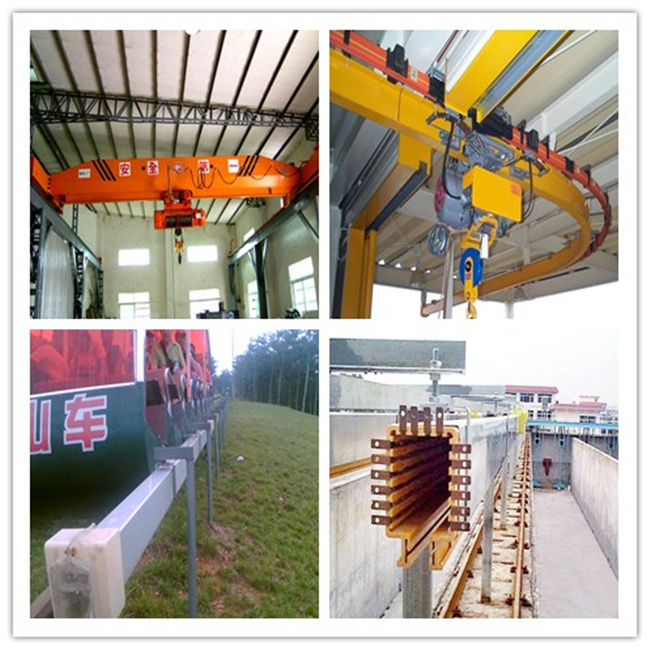

*Application range
If you are any needs or other qustions ,please contact us freely
Chongqing Tianbao Conductor Busbar Electrical Co., Ltd is located in Chongqing, which is a fast developing city and one of four municipalities directly under the central government with convenient transportation.
Established in 2001 and been involved in the field for over ten years. Tianbao is a professional enterprise in researching and developing the electrical products abd engineering. Our company has long been adhering to the development strategy of importing technology, integrated innovation, independent research and cooperative research new products.
The main products include: Conductor rail system, bus duct system, cable festoon system, cable tray, drag chain and related accessories. We have helped many customers to solve the mobile powerr supply for crane, electric hoist, as well as factory, high building power distribution.
For low capacity, both PVC and aluminum alloy enclosed ocnductor system available. For heavy load, the insulated copper and aluminum conductor system can reach 150-3000 AMP. The AMP range for the copper and aluminum busway system is from 25-6300, excellent replacement for cable, providing lighting and power for factory and buildings.
