Crane Hardware Accessories Lifting Clamp

Name: Crane Hardware Accessories Lifting Clamp
Brand: tool-buy.com
SKU: 789679605
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	US $ 15/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Hangzhou Dele Electrical Co., Ltd.

Showroom Product Company Profile

Prod Model:	QC
Material:	Stainless Steel
Usage:	Glass Clamp
Standard:	Standard
Structure:	D
Brand:	Dele

Product Description

Suitable for swing of all kinds of single metal panel,CE certificate accquired
In a test of the rated load,lifting operations alone,or two supporting the use
lifting clamp features:

1. Designed for use as pairs only for horizontal plate lifting

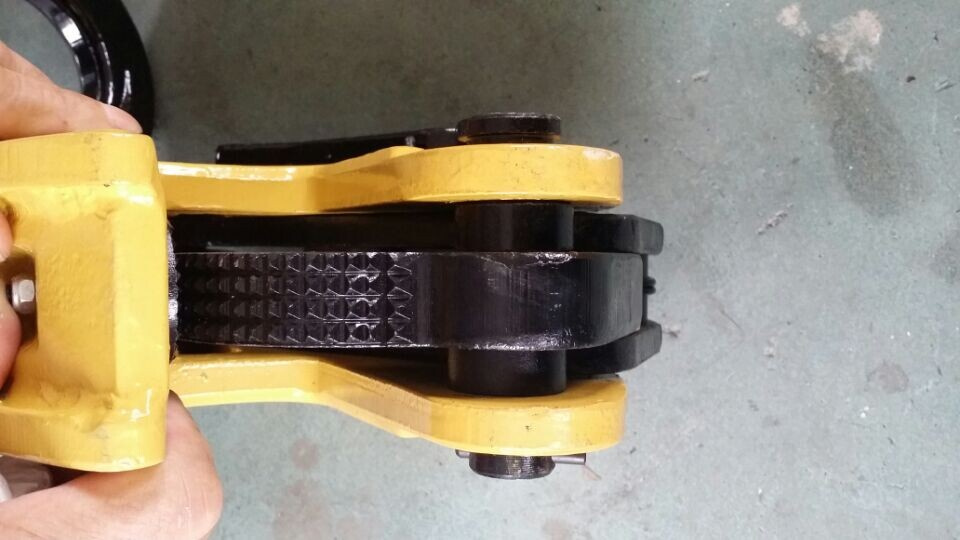

2. Toothed Cam Toe ensures maximum grip & hold
3. Standard Jaw Apertures allow for wide range of plate thickness
4. Equipped with lifting shackle
5. Easy to replace wear parts.

MODEL		0.5T	1T	2T	3T	5T
Capacity(t)		500	1000	2000	3000	5000
Running test load(KN)		7.35	14.7	29.4	44.1	73.5
Max.Jaw Opening(mm)		15	20	25	30	50

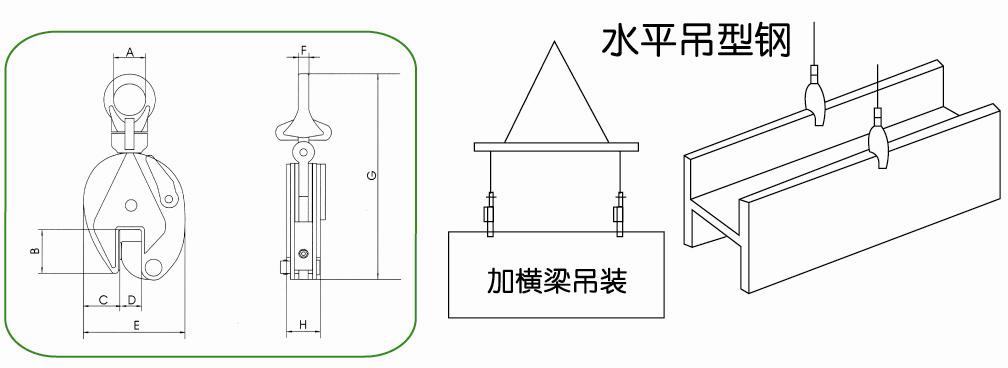

Dimensions(mm)	A	30	48	68	74	80
	B	43	63	76	85	90
	C	34.5	51	59	56	65
	D	0-17	0-22	0-27	0-32	0-52
	E	103	138	164	193	240
	F	10	12	16	20	22
	G	212	294	370	418	450
	H	36	50	52	78	88
Net Weight(kg)		2	4.8	6.8	15	23
Volume(cm)		23511.5	37716	3889	451122	461122
