| Prod Model: |
D680 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drill Diameter: |
92-200mm |
| Drill Depth: |
40m |
| High Elastic Shaft: |
Germany Centa Brand |
| Diesel Engine: |
Global-Warranty Cummins Brand |
| Gear Pump: |
America Permco Brand |
| Walking Motor: |
Korea Jesung Brand |
| Mining Object: |
Metallic and Non-Metallic Ore Excavator |
| Usage: |
Ore |
| Power Type: |
Diesel |
| Type: |
Rotary Drilling Rig |
| Condition: |
New |
Product Description

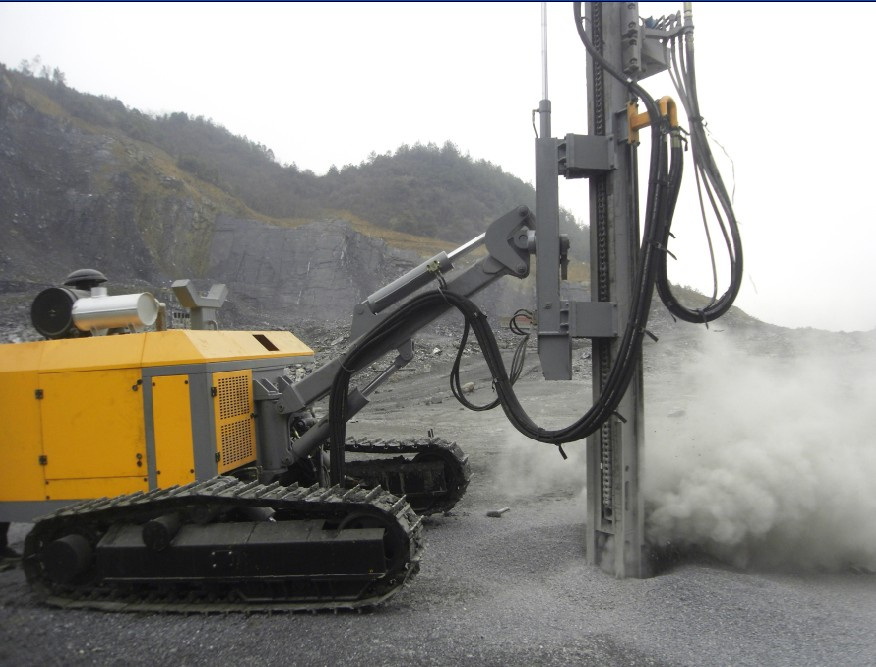

Crawler type Rock Hammer Drill
The main features of the machine:
Simple structure, low fuel consumption and easy maintenance. The hydraulic system is equipped with reliable, with excellent operating performance, high strength and high torque propulsion beam turret, can work in a variety of rock conditions comfortable, easy to deal with sticking.
Advantages:
Hydraulic system
High standard configuration, drilling speed, low fuel consumption per meter. Slewing mechanism can be optimized to promote adjusted according to different mining, drilling and blasting can reduce the cost of increased row spacing and pitch at the same time.
Engine:
Cummins turbocharged engine choice for cold hypoxic zone. Warranty and timely service.
Air filter:
Dry perfect high flow air filter and oil bath air filter combination, to ensure clean air inhaled diesel. Safe, reliable, easy to clean.
Note:
This drilling rig should combine High pressure Air Compressor to use,
We are professional manufacturer for both drilling rig and air compressor,
So we could provide customers full euipments.
|
Item |
Parameter |
Unit |
|
Rock hardness |
f=6-20 |
|
|
Recommend hole diameter |
92-200 |
mm |
|
Maximum hole depth |
40 |
m |
|
Air consumption |
14-21 |
m³/min |
|
Working pressure |
10-24 |
Bar |
|
Drill pipe Specification |
76*3000;89*3000 |
mm |
|
Lift power |
25 |
KN |
|
Rotary torque |
3500 |
N*m |
|
Rotary speed range |
0-120 |
rpm |
|
Rotary stroke |
4200 |
mm |
|
Walking speed |
2-3 |
km/h |
|
Climbing ability |
30° |
|
|
Tracked swing angle |
±10° |
|
|
Dimension |
6100*2250*2500 |
mm |
|
Weight |
6 |
t |
DENAIR Group is a Sino-German joint venture enterprise and is considered as one of the leading manufacturer of air compressor products in Shanghai, China. Founded in 1998, with over 400 employees. Our goal is to provide exceptional customer service coupled with quality products and energy saving solutions.
DENAIR's primary businesses focus in following key areas:
Oil-injected rotary screw compressors (Fixed speed and variable speed; High, normal and low pressure)
Portable screw air compressors (Diesel-powered and electric motor powered)
Oil free air compressors (Scroll type, dry type, water-lubricated type)
High pressure piston air compressors (Oil-injected and oil free)
Air treatment equipment (Air dryers, air filters and air receiver tank)
Vacuum pump
Organic Rankine Cycle for waste heat recovery
At DENAIR, we earn our customers' trust and satisfaction by manufacturing the superior quality compressed air products for all industries. All of our products are designed for reliable performance, easy maintenance, and maximum energy efficiency. DENAIR has been exporting to more than 90 countries across the globe. We have sales representatives who can speak English, Spanish, French, Russian and Arabic, which makes it easier for our clients from all over the world to interact and negotiate with us.
DENAIR continuously innovates product development and management to meet customers' demand. The powerful enterprise culture and continuous innovation make DENAIR improved rapidly to reach the business principle "Energy Saving First, Mutual Value Shared". DENAIR's mission is to be a world-renowned high-end brand, with sustainable development, constantly improving its own value and sharing with our customers and staff. Committed to offer our customers a silent and energy-saving manufactured products.
