| Prod Model: |
WSDDB-S1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Drilling |
| Manufacturing Arts: |
Sinter |
| Kind: |
Stone Sawing Machine |
| Application: |
for Drilling All Kinds of Concrete |
| Design: |
Turbo Segment |
| Diameter: |
18-38mm |
| Feature: |
Can Drill Concrete with Steel |
| Delivery Time: |
3-7days |
| Package Type: |
Paper Carton |
Product Description
Features:
1. Fast drilling speed
2. Long service life
3. Efficient performance
4. Special designed steel body
5. Mature segment bond and high welding strength
6. No breakage of segments
Application:
1. Granite
2. Marble
3. Green concrete
4. Tile
5. Ashalt
6. Reinforced concrete
Machinery: Hand held drill, drilling machine

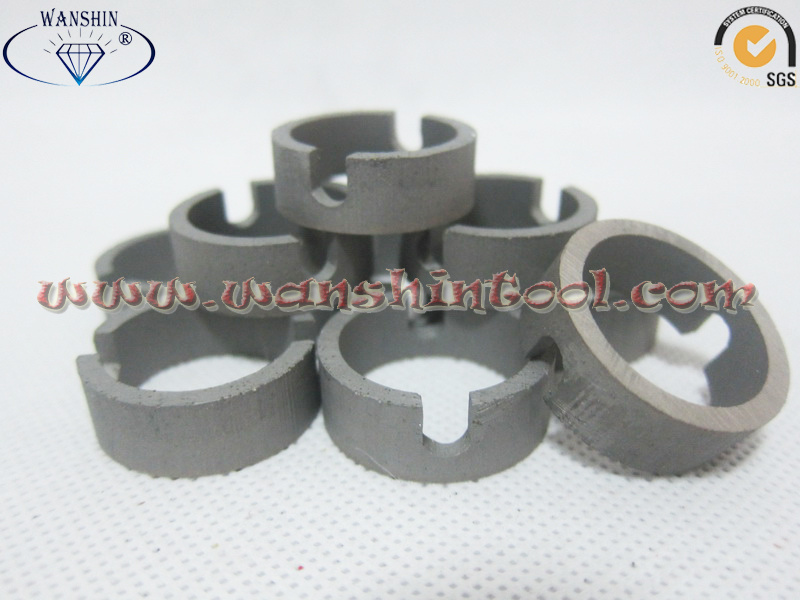

| Diamter | Segment No. | Segment Size |
| 13.3(1/2") |
Continue Rim | 13.3x3.2x10 |
| 16.5 (5/8") | 16.5x3.2x10 |
| 19.7(3/4") | 19.7x3.2x10 |
| 22.9(7/8") | 22.9x3.2x10 |
| 26(1") | 26x3.2x10 |
| 29.2(1-1/8") | 29.2x3.2x10 |
| 32.4(1-1/4") | 32.4x3.2x10 |
| 35.6(1-3/8") | 35.6x3.2x10 |
| 38.7(1-1/2") | 38.7x3.2x10 |
| 41.9(1-5/8") | 41.9x3.2x10 |
| 45(1-3/4") | 45x3.2x10 |
| 48.3(1-7/8") | 48.3x3.2x10 |
| 51(2") | 4 | 25.4x3.6x12-V |
| 64(2.5") | 6 | 25.4x3.6x12-V |
| 76(3") | 7 | 25.4x3.6x12-V |
| 89(3.5") | 8 | 25.4x3.8x12-V |
| 102(4") | 10 | 25.4x4.0x12-V |
| 115(4.5") | 11 | 25.4x4.0x12-V |
| 127(5") | 12 | 25.4x4.0x12-V |
| 152(6") | 14 | 25.4x4.2x12-V |
| 178(7") | 15 | 25.4x4.4x12-V |
| 204(8") | 16 | 25.4x4.4x12-V |
| 225(9") | 17 | 25.4x5.1x12-V |
| 254(10") | 18 | 25.4x5.1x12-V |
| 305(12") | 20 | 25.4x5.1x12-V |
| 356(14") | 22 | 25.4x5.1x12-V |
Wanshin Diamond Tool Co., Ltd is a professional manufacturer and exporter of various types of diamond tools. Our company is located in the city of Nan' An_the biggest stone base in China.
With over 20 years experience in the researching and manufacturing of stone tools, over 5 years in the vacuum brazed diamond tools, our products are widely accepted by many customers all over the world. Our main products include the following series:
1. Cutting tools: Diamond saw blade, diamond segments, diamond gang saw, diamond wire saws, diamond drill bits, construction cutting saw blades, etc;
2. Vacuum Brazed Diamond Tools: Such as vacuum brazed drill bits for tiles, porcelain, ceramics;
3. Stone Engraving Tools
4. Polishing&Grinding Tools: Such as diamond polishing pads, diamond cup wheels, metal grinding discs, resin grinding discs, concrete floor polishing pads, etc;
5. Electroplated Diamond Tools: Such as wet drill bits, CBN plated diamond wheels, grinding pins, etc
All of our products are inspected under a strict quality control system before it goes to customers' Hands.
Now our products are exported USA, UK, Germany, Australia, Iran, Peru, Mexico, Brazil, South Africa, Cyprus, Egypt, Poland, etc.
Our principle is helping you get the best solutions for your limitations in the processing of stones and many other materials. We sincerely welcome to you to join us, we can supply you the constantly good quality products, the best after sale service.
