| Prod Model: |
HT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Coating: |
Chrome |
| Material: |
Copper |
| Type: |
Billet Casting |
| Application: |
Steel Melting |
Product Description
Copper Mould Tube for CCM
1. Simple introduction of copper mould tube
Copper mould tube is a kind of used for cast steel continuous casting machine accessories, molten steel casting directly inside the crystallizer copper tube, in the copper tube pulling billet continuous cooling molding, in order to solve the working process of the copper pipe and the cooling problem of solidified shell sometimes touching and sometimes isolated. Copper mould tube material requirement is good thermal conductivity, recrystallization high temperature, thermal fatigue, high strength, good abrasion resistance, long service life.
2. Specification of copper mould tube
Specification of copper mould tube | 60*60; 70*70; 80*80; 90*90; 95*95; 100*100; 110*110; 120*120; 130*130 |
| 135*135; 140*140; 143*143; 150*150; 160*160; 165*165; 180*180; 200*200; |
| 220*220; 100*170; 130*240; 150*225; 160*235; 165*225; 175*225; 180*200; |
| 180*220; 200*240 |
| φ100;φ120;φ150;φ160;φ180;φ210;φ230;φ250;φ300; |
| φ400;φ510;φ600 |
| Length of coppe tube | 660;700;750;780;790;800;810;812;850;900;1000 |
| Radius of continuoue casting | 2500;3500;4000;4700;5000;5250;6000;6500;7000;7500;8000;9000;11000;12000; |
| Copper tube type | Single tapered tubes; Double tapered tube ; Multi dimension ; Parabola;Raised Face ;Diamond-type |
| Special specification | Straight type; Funneltype;Circular type;Super-huge type;(Customized according to customer's requirements) |

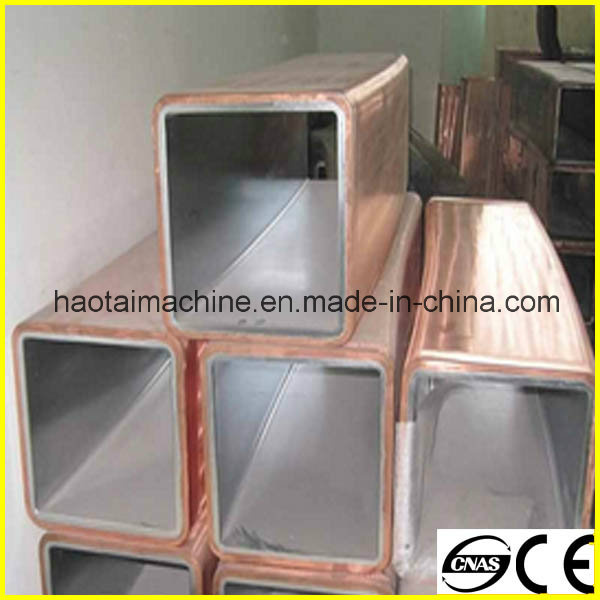

3.product showcase:
