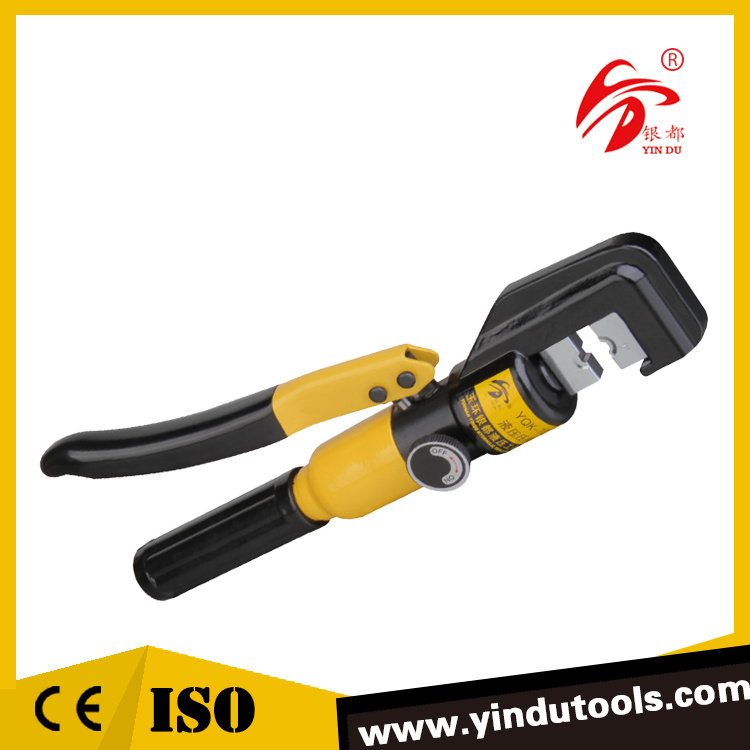

Cu 4-70 Hydraulic Crimping Tools (YQK-70)
Price: |
US $ 15-16.5/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
YQK-70 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

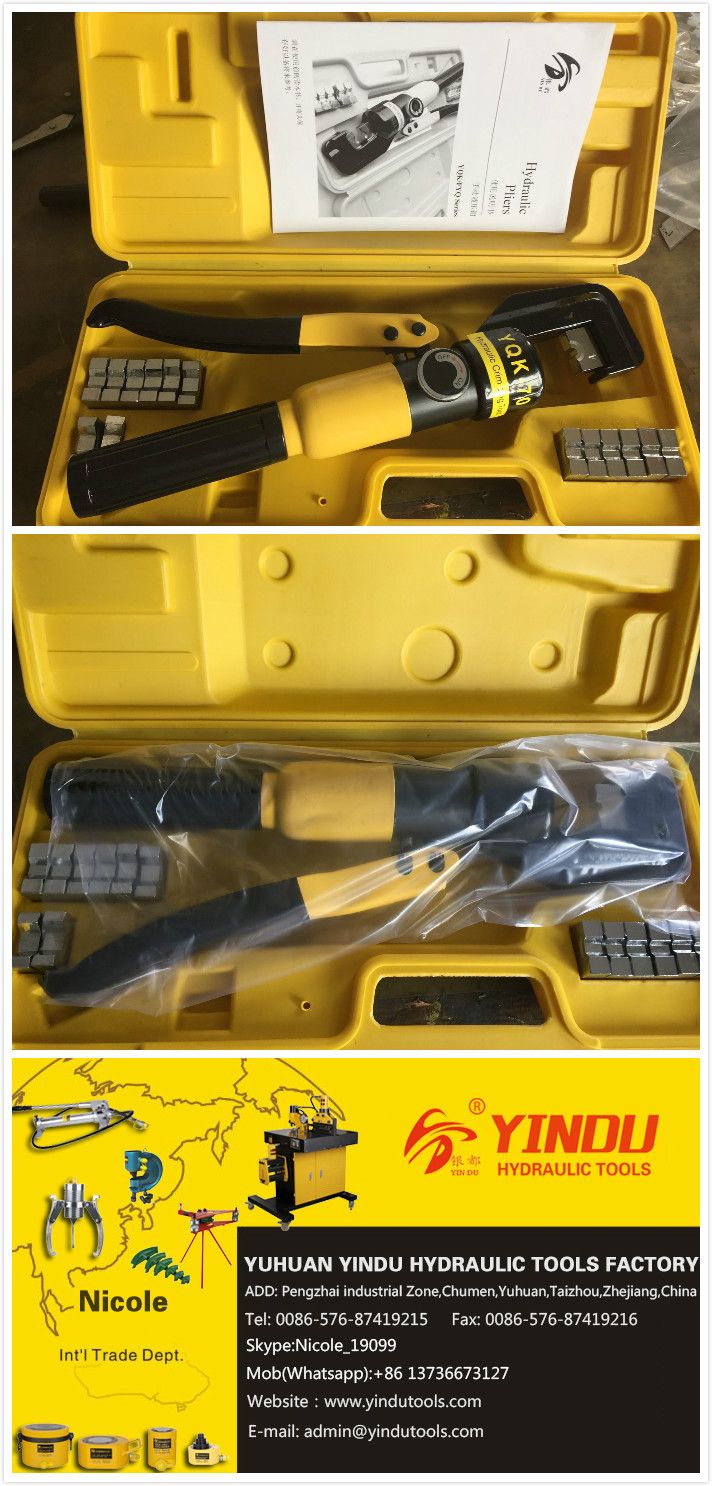

Hydraulic crimping tools YQK-70Hydraulic crimping tools YQK-70 |
Output | 6T |
Ram stroke | 10mm |
Crimping range | Cu4-70mm² |
Standard dies | 4,6,10,16,25,35,50,70mm² |
Length | 310mm |
Weight | 2.8KG |
Package | plastic box |
Features&functions:
1. It is designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that its uneasy to break out and turn hot.
2. Open cut design for convenient operation.
3. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finished with energy saving and time shorten.
4. The head could be rotated 180 degree freely for narrow space working.
5. Fitted with safety valve, when pressure reaches to limited
Max, Value, pressure release automatically to prevent over pressure.
6. Fiberglass insulated handles to prevent accidental electric hitting.
7. Packing case is made from robust integral plastic box.
Yuhuan Yindu Hydrauic Tools Factory, a tools manufcturer established in 1986, has become the market leader for hydraulic crimping tool, hydraulic punch tools, hydraulic bending tools, hydraulic cutting tools, hydraulic hand pumps, hydraulic electric pump, hydraulic busbar processing machines, hydraulic cable cutters, steel wire rope cable grip, Mechanical hole puncher, hydraulic punching driver, hydraulic puller, hydraulic pipe bender and so on. Under more than 20 years hard work, we have created the brand "YINDU". For us it stands to reason that all our products comply with the highest quality requirements and represent the latest innovations.
We are ISO 9001: 2000 certified and gain CE certification. Modern Computer Aided Design and production facilities provide great potential for development and design performance. Continuous innovative development of our product range guarantees top efficiency. We strive daily for customer satisfaction. Experienced staff, modern and fast means of communication and proved logistics are our basis. We look very much forward to a further trustful and successful cooperation.
