| Prod Model: |
Q50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Q50 Price |
| Ratio: |
1000:1 |
| Weight: |
550g |
| Color: |
Blue |
| Range: |
0-1200A |
| Output Signal: |
0-5A AC |
| Output Lead: |
2.5m Cable |
| Class: |
0.1 |
| Usage: |
Energy Meter Calibration |
| Jaw: |
50mm |
| Application: |
Instruments |
Product Description

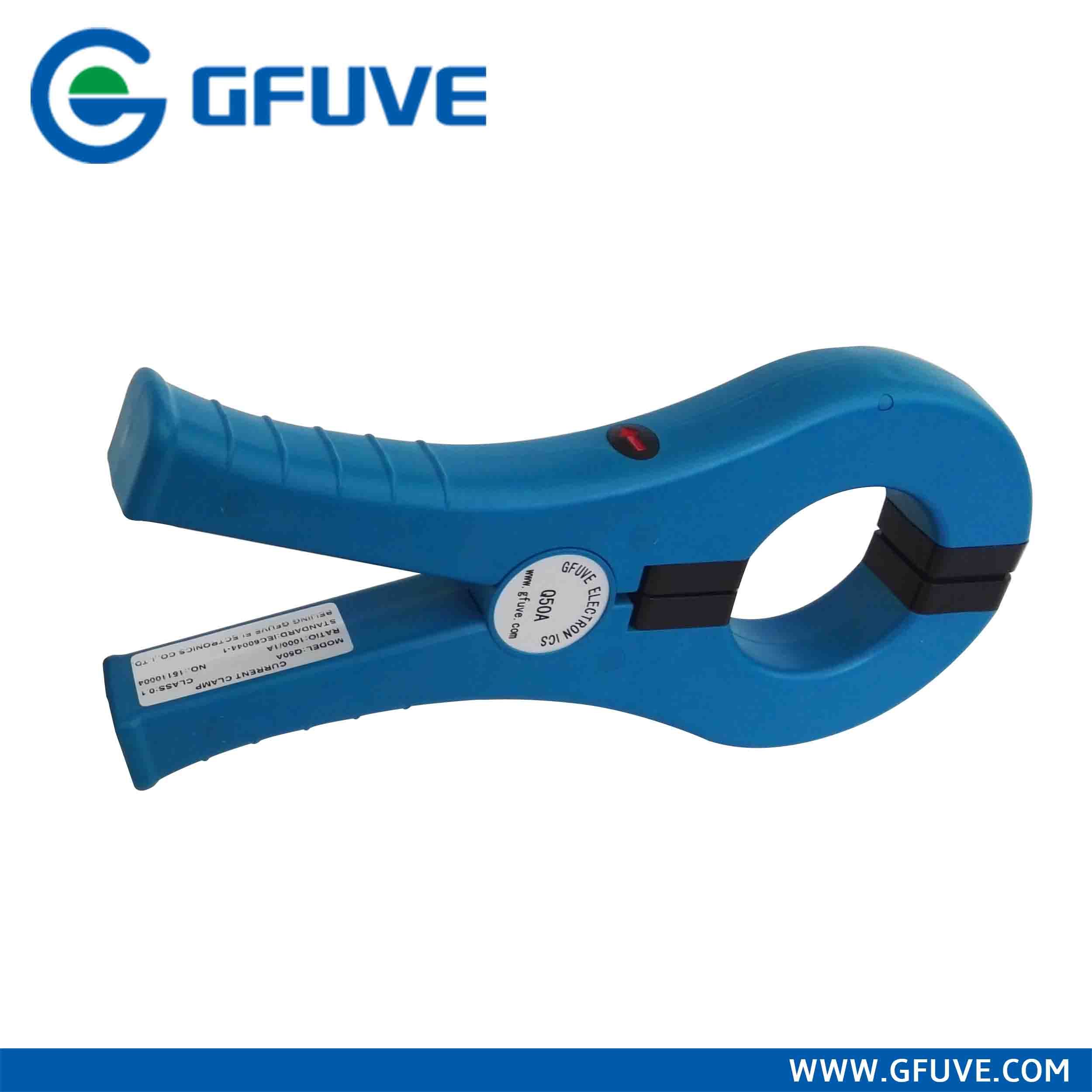

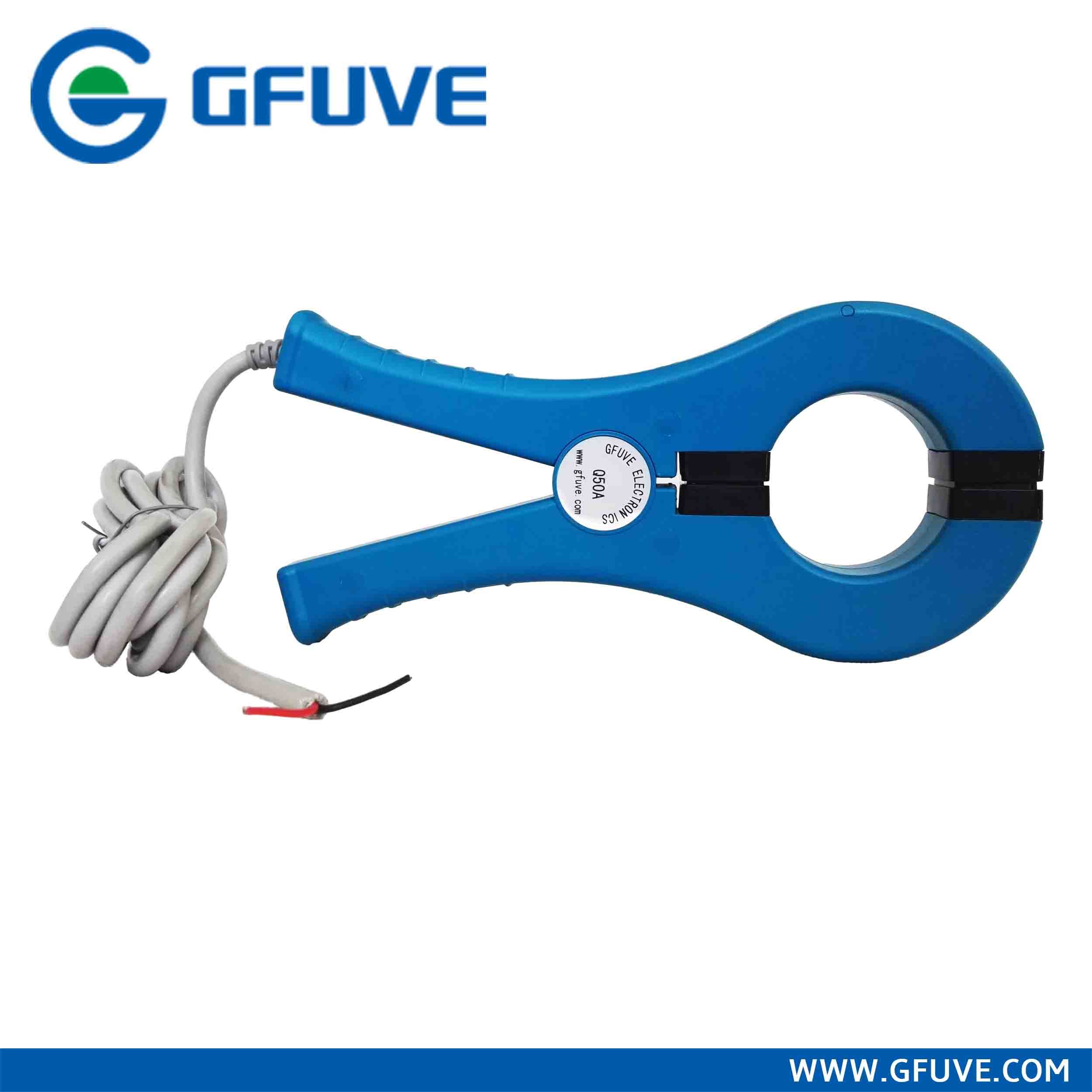

Q50A RATIO CUSTOMISED WIDE MEASURING RANGE CURRENT transformer clamp q50 price
The model Q50 current transformer clamp is designed for fast and easy measure the current in industrial and power environment, it has wide range of current measurement.current clamp q50 price is cheaper than CA current clamp, low phase shift, high precision 0.1% and good quality!
FEATURES
Suitable for 1000A cable online measurement
Holding wire diameter: φ50mm
Dimension: 101mm×219mm×26mm
Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
PARAMETERS
Electrical parametersMechanical parameters
|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2%, 0.5% |
| Primary current | 0 - 1000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 1200A |
| Over voltage category | CAT III 600V |
| Output signal | 500mA,1A,5A AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output(2.5m) |
|
| Dimensions (L x W x H) (mm) | 102.9 x 219.6 x 28 |
| Weight (g) | 550 |
| Holding wire diameter (mm) | φ50 |
| Max. jaw opening (mm) | 50 |
| Jaw Color | Blue |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
