| Prod Model: |
RKM-1269 |
| Size: |
Customized, OEM |
| Application: |
Iron and Steel Factories, Steel Plant etc. |
| Material: |
9crsi, 6crw2si, T8, Cr12MOV, H11, H13, Hmb, Tungst |
| Process: |
Cutting Hot-Rolling Thick Billet, Thick Steel Plat |
| Type: |
Slitting Line |
| Certification: |
CE |
Product Description
Operational Progress:
Steel-making-Blanking-Forging Steel-Rough Progressing-Heat Treatment-Finishing- Testing
Other Information
Renke, as a machine knife maker in China,can provide comprehensive range of straight knives for both hot rolling and cold rolling applications.

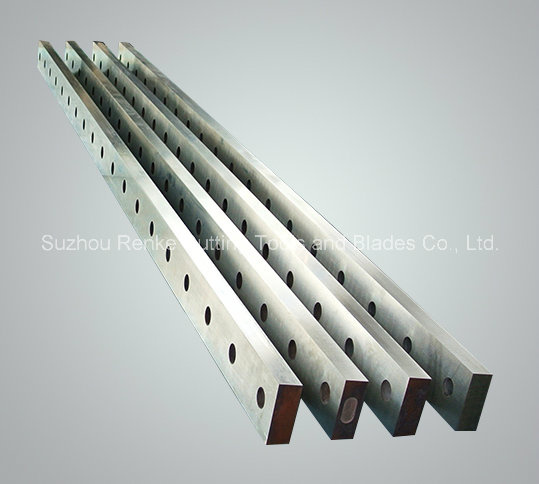

1.Straight Knives for Hot Rolling Applications:
Renke machine knives for hot rolling applications, which include shear baldes, are usually made of high quality steels, like nikel alloy.

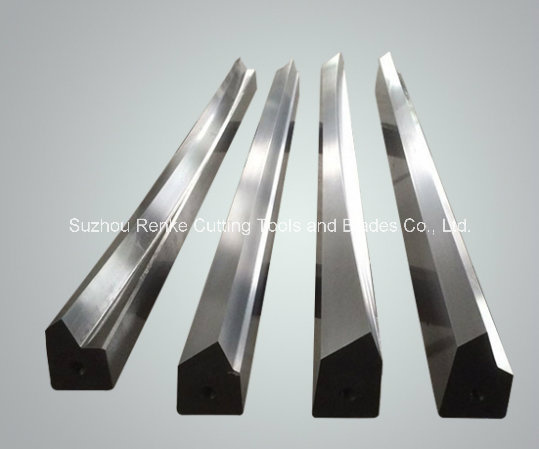

2.Straight Knives for Cold Rolling Applications:
Medium quality and high quality alloy tool steel and heavy-duty powder metallurgy steel are usually adopted for making straight knives for cold rolling applications.Shear knives for plate shearing machines with different sizes and specifications are all available to satisfy customers' different cutting needs.
List of Material
|
| GB | DIN | JIS | ASTM | ISO |
| 9CrSi | 90CrSi5 | - | - | - |
| 6CrW2Si | 60WCrV7 | - | - | 60WCrV2 |
| 7Cr7Mo2V2Si | - | - | - | - |
| Cr12MoV | X165CrMoV12 | SKD11 | - | - |
| Cr12Mo1V1 | X155CrVMo12-1 | - | D2 | 160CrMoV12 |
| W18Cr4V | S18-0-1 | SKH2 | T1 | HS18-0-1 |
| W6Mo5Cr4V2 | S6-5-2 | SKH51 | M2 | HS6-5-2 |
| 4Cr5MoSiV1 | X40CrMOV5-1 | SKD61 | H13 | 40CrMoV5 |
| T8 | C80W2 | SK6 | W1A-8 | TC80 |
| 42CrMo | 42CrMo4 | SCM440 | 4140 | 42CrMo4 |
Standard Dimensions and Specifications| Dimension(mm) | Material | HRC | Tolerance (mm) | Ra |
| Pitch hole | Straightness |
| 508×70×22 |
9CrSi
H13K
SKD11
6CrW2Si
Cr12MoV
W18Cr4V
SKH-51
|
HRC
60~63
| ±0.30
| 0.30/100 | Ra1.6 |
| 508×80×25 |
| 510×80×25 |
| 540×70×22 |
| 600×80×25 |
| 610×100×32 |
| 630×100×30 |
| 810×80×25 |
| 1016×70×22 |
| 1245×80×25 |
| 1300×80×25 |
| 2032×70×22 |
| 2050×90×25 | 0.20/1000 |
Production Range:
| From Application |
| Blade for cutting thin film | Blade for cutting plastic |
| Blade for cutting paper | Blade for cutting leather |
| Blade for cutting Rubber | Blade for cutting metal |
| Blade for cutting wood | Blade for printing& ink |
| Blade for cutting fiber | Blade for cutting Cardboard |
| Blade for cutting food | Blade for cutting Electrical material |
| Press Brake Tooling | Press brake Dies |
| From Shape |
| Circular Saw Blade | Rectangular knife |
| Teeth Type Knife | Repand Type Knife |
| Sharp-nosed Type knife | Strip steel blades |
| Trapezoid blades | Special blades |
| From Material |
| Carbide blade | Ceramic blade |
| Carbon steel knife | HSS blades |
| TCT tipped blade | Stainless steel blades
|
Our Features:
Material |
Aluminum, Tungsten carbide, Mild steel ,Stainless steel, Chrome steel,
Cold rolled sheet, High Speed Steel, Bearing steel, brass, Copper, Bronze,
Chrome copper, Mold steel ,SKH51,SKD11,SKS7,SK2,Cr12Mov,H13,9CrSi,
6CrW2SiW6Mo5Cr4V2,YG8,YT15,P20,K30 etc.
|
Surface Treatment |
Plated nickel, copper, zinc .etc. and anodized (Anodic oxidation can accord with
MIL - A - 8625 Type II standards) Hard Anodizing, owder coated, polished, sand
blasted, chemical surface treatment. As customer's request |
Our Advantages:
1. We are factory providing all kinds of cutting blades, also can manufacture according to your drawing.
2. Low MOQ (1pc is even acceptable in some special conditions)
3. Offering free and quick prototyping (normally 1 week)
4. A series of secondary service available, like casting; forging; welding; heat treatment etc.
5. Top quality guaranteed by skilled workers, managing system and status of facilities.
6. Customized size and spec /OEM available
7. Near Ningbo and Shanghai, convenient transportation
Our Mission
Quality & Service: our always have been providing our clients with great quality products and superior customer service.
Quick LeadTime: We're dedicated to providing the quickest turnaround times and work very hard to ensure that all of your deadlines are met.
Unbeatable Prices We continuously strive to find ways to reduce our production costs, and pass the savings over to you!
Suzhou Renke Cutting Tools and Blades Co., Ltd. Has been a leading company in China in manufacturing and marketing various kinds of cutting tools and blades, incl. Trimmers, slitters, reamers, milling cutters, cutter dies, drill bits, CNC cutters and holders, sheeters, which are widely used in paper&packaging, woodworking, food, tobacco, metal processing, electroinics, plastics, rubber, testiles and more industries.
Our products are not only sold in China, but also exported to USA, Italy, Iran, Australia, Switzerland and etc. We welcome you to browse our webiste and e-mail us with any questions and/or inquiries. We are sure that you will find our prices competitive, our quality excellent, and our services the best in the industry. Based on this we hope you will give Suzhou Renke Cutting Tools and Blades Co., Ltd. The oppotunity to quote you on your needs.
Specs: Standardized, or OEM;
Materials: 9CrSi, 6CrW2Si, T8, Cr12MOV, H11, H13, HMB, tungsten, solid carbide,
Cermets, Polycrystalline diamond, W18Cr4V and more high quality and durability
Materials;
Service: Repair of cutter dies, technical consulting and on-line support, specs inquiry
