| Prod Model: |
huazuan324324 |
| Application: |
for Granite, Marble, Concrete and Construcion |
| Segment Height: |
8/10mm |
| Segment Thickness: |
3.5/4.0/4.5/5.0mm |
| Thread Cap: |
1-1/4-7", 5/8-11", M14 etc |
| Diameter Of Drill Bit: |
27-250mm |
| Raw Material: |
Diamond, Cobalt Powder |
| Production Process: |
Hot Press, Cold Press of Segment |
| Welding Technology: |
High Frequency Welding, Laser Welding |
| Diamond Hardness: |
80 |
Product Description
Hot selling wet diamond core bit for stone and concrete
Description:Product name | Diamond Core Drill Bit For Reinforce Concrete/Stone |
Brand | Huazuan or OEM |
Types | Core drill bit |
Compose | Segment + core bit matrix |
Diameter | 1-20" |
Working length | 120,160,370,450mm,other length is available upon request. |
Thread | 1 1/4-7;5/8-11,M14,m16,m22,other thread is available upon request. |
Machine | Drilling machine |
Application | Drilling reinforced concrete, natural stones, bricks, blocks & Rock |
Quality Control | 1. Strict Raw material inspection 2. Professional formula 3. Production process control(PDCA+7S Principle) 4. Do some cutting testing to sure the using function 5. Products pass ISO9001 and SGS inspection |
MOQ | 8PCS for each size |
Payment term | TT,Western union,Paypal etc |
Package | As customers' requirement. |
Delivery | 7-10 days after receiving the payment. |
Certification | ISO9001 and SGS Product quality control. |
Main market | India,Iran,Turkey,Spain,Italy,Germany,England,USA,Canada,Egypt etc. |

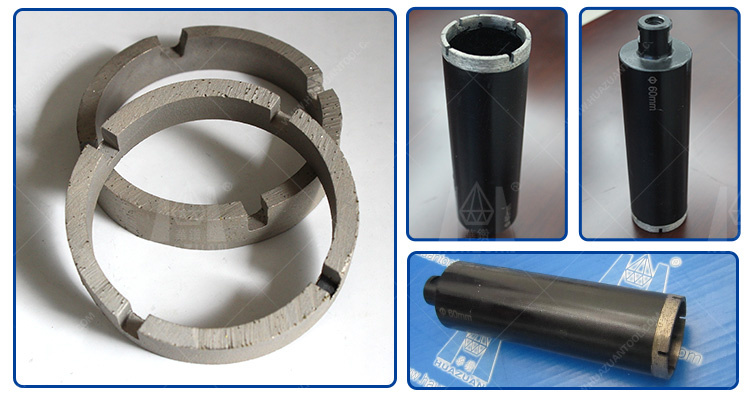

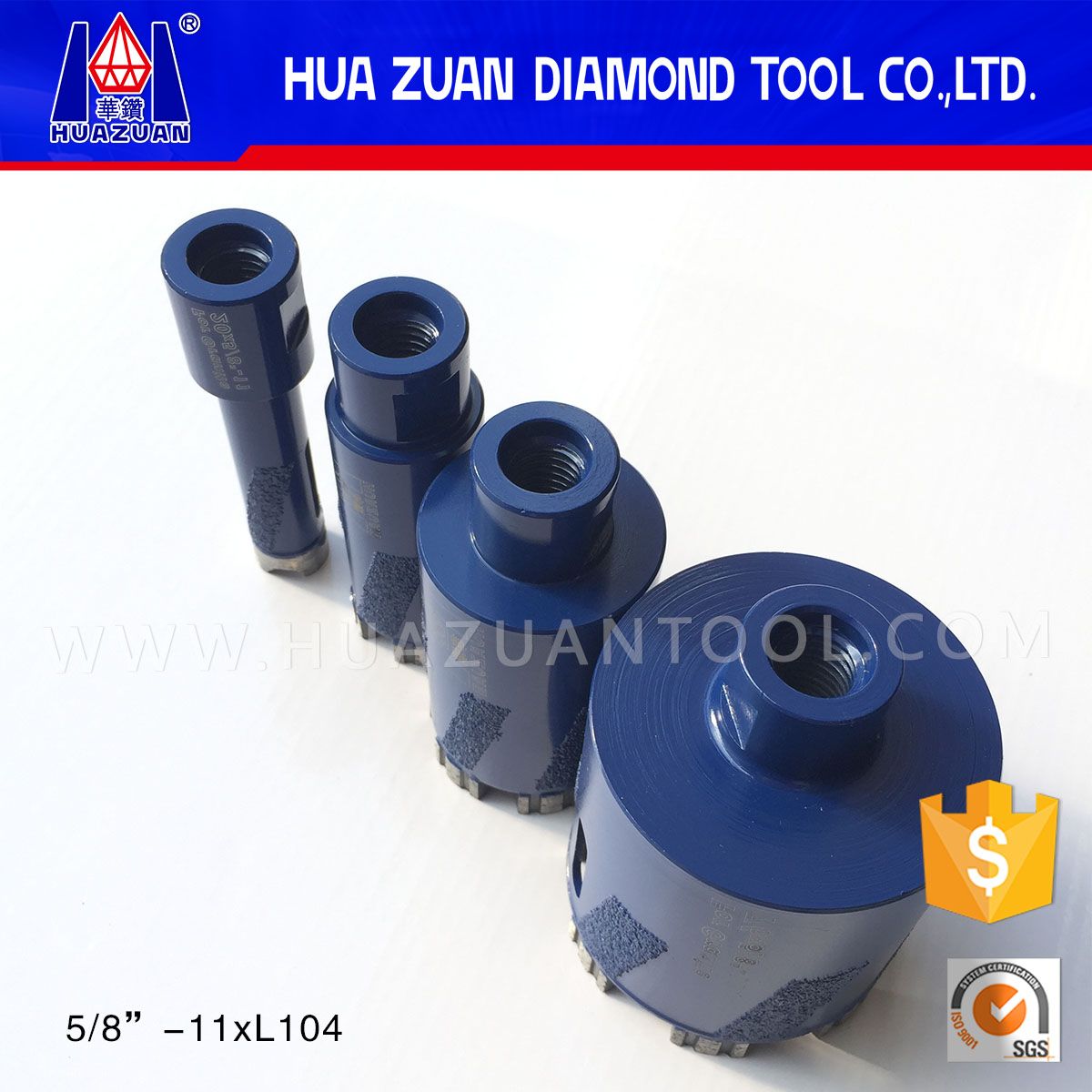

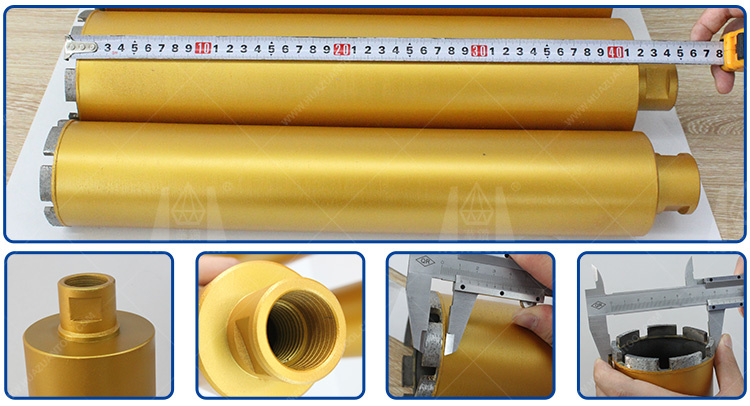

Product Photo:
For diameters 10mm to 38mm we use high quality 10mm high quality crown (ring) diamond segments - This helps for an easy start-up when hand held drilling.For diameters 40mm to 500mm we use high quality 10mm high diamond segments with castellated tips to insure an easy start-up and fast opening of the segment.Usually customers will choosing the thread of 1-1/4-7.

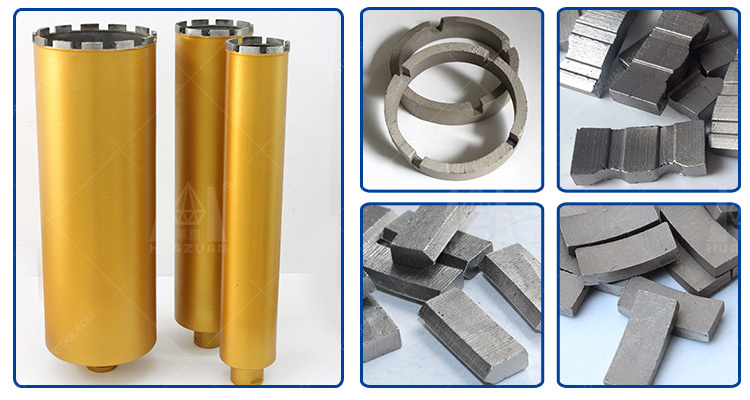

Diamond Segments- All our diamond segments have well designed bond systems combined with high concentrations of top quality synthetic diamonds to provide trouble-free drilling through a variety of applications
- Segments type:1)crown type; 2) turbo type; 3)roof type 4)straight type for you choose.
Steel Barrel
- All our barrels are made using top quality steel and are guaranteed to run true
