Custom Engraving Metal Engraving Tools for Metal Mold Processing
| Price: |
US $ 16300-16500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TSL42S |
| Work Stroke Of X/Y/Z: |
420mm×420mm×150mm |
| Spindle: |
Jiangsu Hanqi: Φ100/220V/2.7kw/24000rpm |
| Servo Motor: |
2.2kw |
| Control System: |
Shanghai Weihong Nk300bx/Taiwan Syntec 21mA |
| Maximum Cutting Speed: |
6m/Min |
Product Description

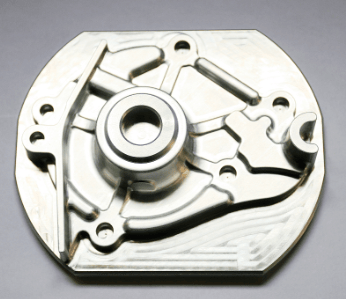

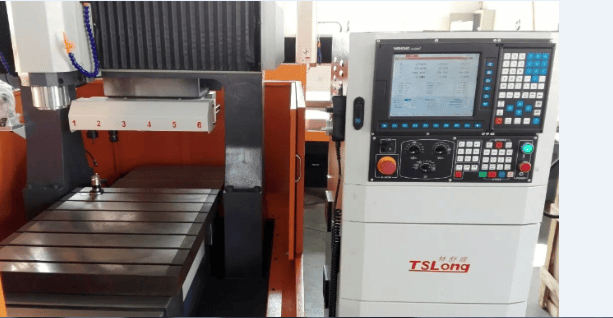

Characteristics and applicationsTSL 42S full mask carving machine body,column beam base are integrally cast,good rigidity,good stability.With imported servo system and high precision transmission assembly,processing of high precision,stable operation.Industrial control system integrated design,convenient operation,strong function.The machine adopts the precision sheet metal parts of the scope of protection,the appearance is mord beautiful,more effectively maintain the loaction of environmental health and safety.Suitable for bronzing processing,copper,aluminum and other products procesing,metal mold processing.
TSL42S custom engraving metal engraving tools for metal mold processing
1.Main parameter:Model | 42S(full cover) |
| Drive system | AC servo |
X/Y/Z motion positioning accuracy | ±0.012/300mm |
| X/Y/Z repeat positioning precision | ±0.008mm |
Idle fast movement speed | 12m/min |
| Maximum cutting speed | 6m/min |
Maximum tool diameter | 12mm |
| Spindle power/speed | 2.2kw / 7000~24000rpm |
Working stroke | 420x420x150 mm |
| Table size | 540x440 mm |
Outline dimenstions | 1670x1370x2000 mm |
| Weight | 0.9T |
The height of the space | 240mm |
| Motor power | 2.2kw |
Bangladesh customers to our company site acceptance machine tools
Description:
The company headquarters and production base located in "China smart" city - changzhou city, jiangsu province economic development zone, is a high-tech private joint-stock enterprise, as the national science and technology innovation fund projects to undertake unit.
Our company focus on all kinds of high precision multi-function carved machine, engraving and milling machine and the development and application of metal drilling and tapping machine. The company has a professionala research and development team, mature manufacturing process control, and has a strict quality control system and perfect pre-sales, after-sales service system, has passed ISO9001 and 3 c certification, a number of products obtained national patent for invention or utility model patents.
My company's products sell well in domestic jade crafts, seal, hardware parts, automobile and motorcycle accessories, electronic instrumentation, measuring tool, denture, metal mold, fixture and other industries and fields, depth cooperation with the domestic many large enterprises, listed companies, colleges and vocational colleges, exported to southeast Asia, the Middle East, Africa and other regions and countries.
Main products:
1, TSL100120, 80100, 8080, 6060, such as heavy-weigh knife library series engraving and milling machine;
2, TSL6080, 6060, 5080, 5060, 4242, 4040, 3030, such as light-weigh libraries/four axis series of carved machine;
3, measuring tool (Vernier caliper) or hardware industry small screw drilling and tapping machine series;
4, TSL3020 vertical/horizontal series denture processing machine (tooth die engraving machine);
5, formulated in accordance with user requirements process solution, custom all kinds of CNC engraving machine or product processing required for automatic tooling fixture, etc.;
6, D scanner and 3D printer sales and application.
Product main features:

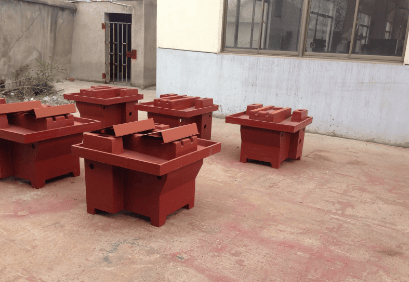

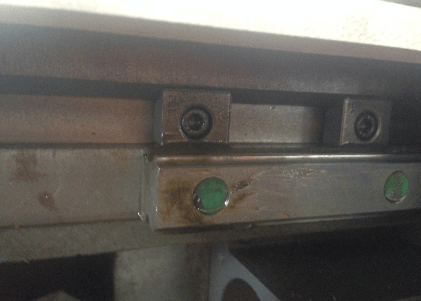

Structure of HT250/300 casting, two sections of the design, lathe bed and frame for the box structure, longmen for U the whole structure, the secondary tempering and outdoor natural aging for a long time, machine tool rigidity is strong, not deformation; Carrying Taiwan HIWIN high precision linear guide and ball screw, the configuration of international or domestic famous AC servo drive system and control system, the machine of high precision, good stability.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
