| Prod Model: |

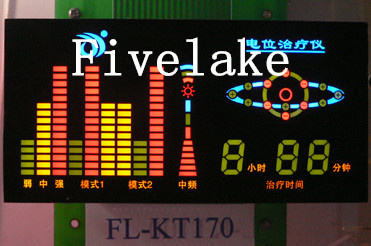

KT170 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage Application: |
Indoor |
| Screen Panel Dimension: |
140mmx70mm |
| Plarity: |
Ca/Cc |
| Encapsulation Material: |
Epoxy Resin |
| 1 LED Power: |
<0.3W |
| LED Chips: |
Wellknown Brand |
| Emitting Color: |
Single Red, Blue, Green, Yellow, White |
Product Description
About us:
We are the pioneer for this exploitation which full embody our company wisdom and technology in photoelectricity field.
Usage condition:
This kind of device are widespread used in air-condition, Water heater, solar water heater, disinfector, microwave oven, Lampblack, Ammeter and other etc. home appliance!
Business Feature :
This series have more than 110 kinds of mode. KT series adopt LED as the light source, It have the capability same as LCD and the price is cheaper than LCD, It will take place of LCD in any applied field.
Product feature:
KT series distinct characteristic is as below: Long lifetime(can light continuous 100, 000hours, which is to say 11 years), shockproof, dampproof, static-proof, can work under low temperature environment, (normally can work under -25° ), bright color(can be Colorized ), active luminesce, (LCD is passive luminesce), in dull environment, LCD need expensive backlight source.
OEM service: Available
|
Aboult Maximum Rating(The following parameters is for one segment) |
|
|
Item |
Symbol |
Value |
Unit |
|
|
|
DC Forawrd Current |
If |
25 |
mA |
|
|
|
Peak Forward Current |
Ifp |
100 |
mA |
|
|
|
Reverse Voltage |
Vr |
5 |
V |
|
|
|
Power Dissipation |
Pd |
Red |
55 |
Mw |
|
|
|
Yellow |
57.5 |
|
|
|
Yellow green |
57.5 |
|
|
|
Blue |
85 |
|
|
|
Operating Temperature |
Topr |
-20~+80 |
|
C |
|
|
|
Storage Temperature |
Tstg |
-20~+80 |
|
C |
|
|
|
Lead Soldering Temperature |
Tsol |
260C±3C |
|
-- |
|
|
|
Ifp Conditions:Pulse Width≤10msec duty≤1/10 |
|
|
|
Tsol Conditions:3mm from the base of the epoxy bulb |
|
|
|
Solder time ≤4s |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Electrical Optical Characters |
|
|
|
|
|
|
Red |
|
|
|
|
Ta=25c |
|
|
Item |
Symbol |
Condition |
Min |
Type |
Max |
Unit |
|
DC Forward Voltage |
Vf |
If=20mA |
1.6 |
1.8 |
2.2 |
V |
|
DC Reverse Current |
Ir |
Vr=5V |
0 |
0 |
10 |
μΑ |
|
Wavelength |
WD |
If=20mA |
635 |
637 |
640 |
nm |
|
Luminous Intensity |
Iv |
If=20mA |
20 |
30 |
40 |
mcd |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Yellow green |
|
|
|
|
Ta=25C |
|
|
Item |
Symbol |
Condition |
Min |
Type |
Max |
Unit |
|
DC Forward Voltage |
Vf |
If=20mA |
1.9 |
2.1 |
2.3 |
V |
|
DC Reverse Current |
Ir |
Vr=5V |
0 |
0 |
10 |
μΑ |
|
Wavelength |
WD |
If=20mA |
569 |
572 |
574 |
nm |
|
Luminous Intensity |
Iv |
If=20mA |
34 |
37 |
45 |
mcd |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Yellow |
|
|
|
|
Ta=25C |
|
|
Item |
Symbol |
Condition |
Min |
Type |
Max |
Unit |
|
DC Forward Voltage |
Vf |
If=20mA |
2 |
2.1 |
2.3 |
V |
|
DC Reverse Current |
Ir |
Vr=5V |
0 |
0 |
10 |
μΑ |
|
Wavelength |
WD |
If=20mA |
586 |
588 |
590 |
nm |
|
Luminous Intensity |
Iv |
If=20mA |
45 |
55 |
65 |
mcd |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Blue |
|
|
|
|
Ta=25 |
|
|
Item |
Symbol |
Condition |
Min |
Type |
Max |
Unit |
|
DC Forward Voltage |
Vf |
If=20mA |
3 |
3.2 |
3.4 |
V |
|
DC Reverse Current |
Ir |
Vr=5V |
0 |
0 |
10 |
μΑ |
|
Wavelength |
WD |
If=20mA |
465 |
466 |
467.5 |
nm |
|
Luminous Intensity |
Iv |
If=20mA |
65 |
75 |
85 |
mcd |
