| Prod Model: |
ANSI B18.2.1-81 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Meterial: |
Aluminium-Steel or Stainless Steel |
| Length: |
5-30mm(0.212''-1.2'') |
| Diameter: |
3.2-6.4mm(1/8''-1/4'') |
| Package: |
Plastic Bag/Inner Box+Carton; by Your Requirments |
| Finishing: |
Zinc Plated/Colpainted |
| Origen Place: |
Shenzhen, China |
| Payment Term: |
T/T, 30%-70% |
| Type: |
Rivet |
Product Description
Bolt and nut: Hexagon bolt. DIN933, DIN931, fastener, Stainless steel hex bolt, , Hex flange bolt, hex socket cap bolt, carriage bolt. T bolt. Square bolt, DIN933, DIN931, stainless steel fastener

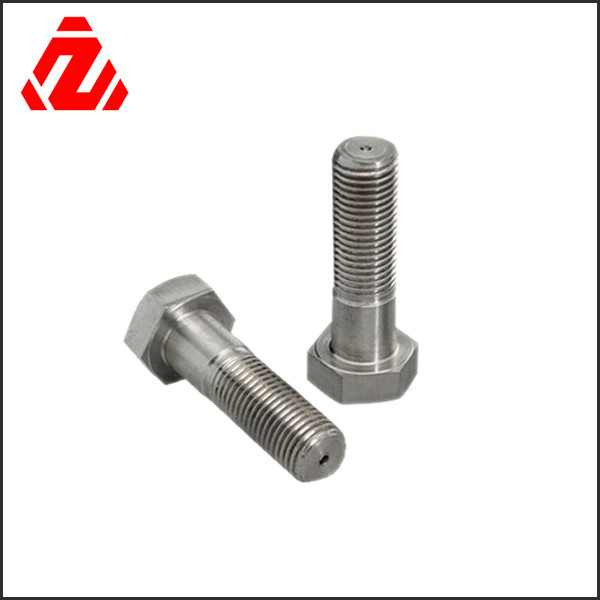

Hex bolt
1. Standard: DIN, ANSI/ASME, BS, AS
2. Size of hex bolt: M5-M100
3. Surface: Black, zp. HDG. Oxide
4. ISO RoHS approve
HEX BOLT
1. Standard: DIN931/933, DIN558/601; DIN6914, DIN960/961, ANSI BS, ISO standard.
2. Material: Carbon steel, Alloy steel, stainless steel or according require
3. Grade of HEX BOLT:
Grade: Grade 4.8, Grade5.6, Grade6.8, Grade8.8, Grade10.9, Grade12.9.
4. Dimension: Metric size from 4mm-72mm, Inch size from 1/8"-2-1/2".
5. Length: 6-300mm.
6. Surface treatment: Plain, black finished, Zinc plated (Galv), Hot DIP Galvanized, Nickel, phosphate black, DACRO coating, etc.
7. Packing of HEX BOLT: General packing or according require.
| Thread size | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 |
| Pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 |
| K | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 14 | 15 | 17 | 18.5 |
| e | A |
7.66 | 8.79 | 11.05 | 14.38 |
18.9 |
21.1 | 24.49 | 26.75 | 30.14 | 33.53 | 35.72 |
35.98 | 45.2 | 50.85 |
| B | --- | 8.63 | 10.89 | 14.2 | 18.72 | 20.88 | 23.91 | 26.17 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 |
| S | 7 | 8 | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 |
| L | 8-40 | 8-40 | 8-50 | 12-60 | 16-60 | 20-80 | 25-80 | 30-100 | 30-100 | 40-100 | 50-100 | 50-100 | 60-100 | 70-100 |
Shenzhen Leite Hardware Electronic Co., Ltd., mainly produces and sells high quality bolts, nuts, screws, drawn wires and other non-standard specific fasteners, which comply with GB, ANSI, DIN, UNI, JIS and ISO standards. Our products are widely applied to aerospace, energy source, electronics, machinery, chemical, military projects, metallurgy, die assembly, hydraulic and automobile industries. We have passed ISO9001 and QS9000 international quality assurance system certification and A2LA laboratory certification on America FQA bill.
We are devoted to the continuous study, talent training, R&D capacity upgrade and product quality, and enhance our competitive power. We are your reliable partner.
Operation variety: Universal fasteners, imported alloy steel fasteners, rivet fasteners, steel structure fasteners, plastic fasteners, stainless steel fasteners, titanium alloy fasteners, copper fasteners, aluminum fasteners, chemical anchor bolts, anchoring glue, locking screws, micro precision electronic screws, various products and other non-standard customized products
Our company is in a good environmental location. We have our own factory and welcome to visit our working site!
Customer is a god we are looking forward to being of service to you.
