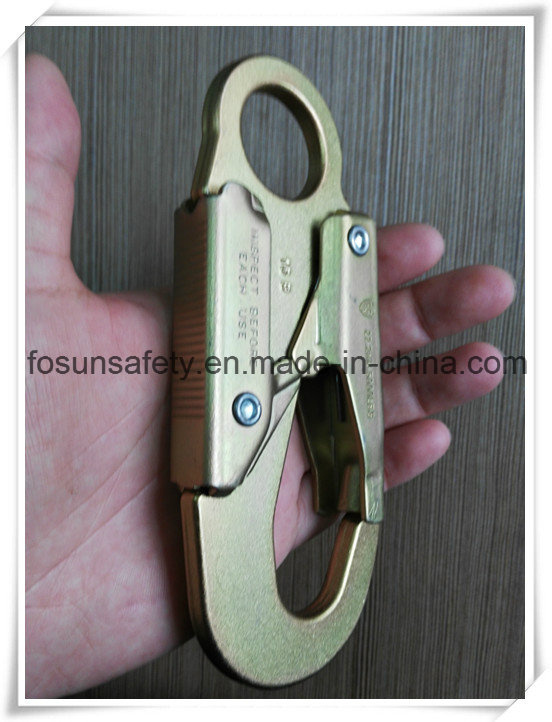

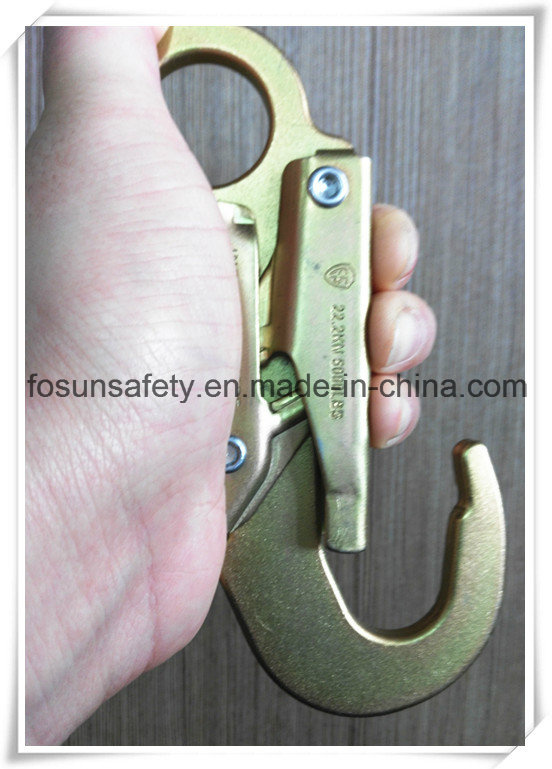

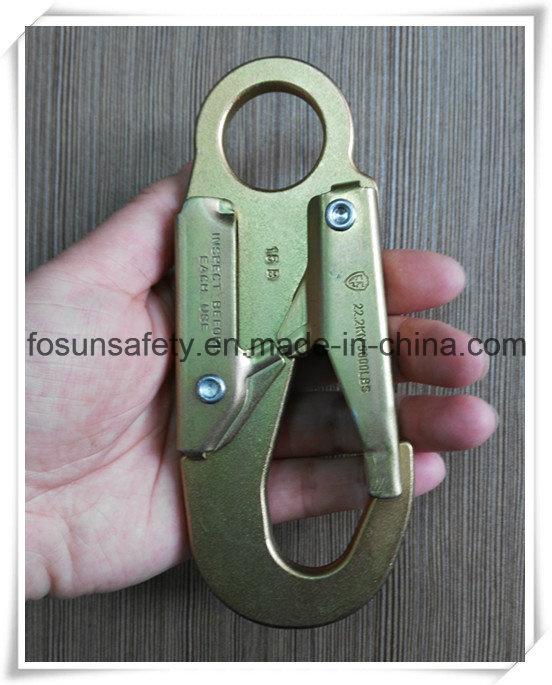

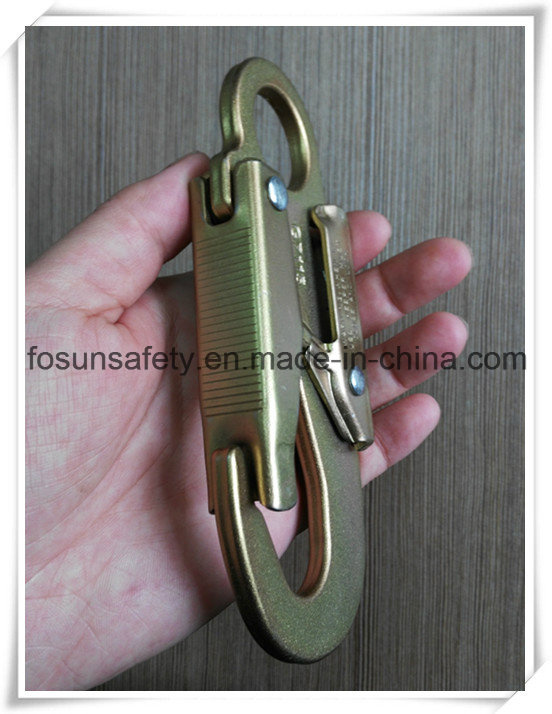

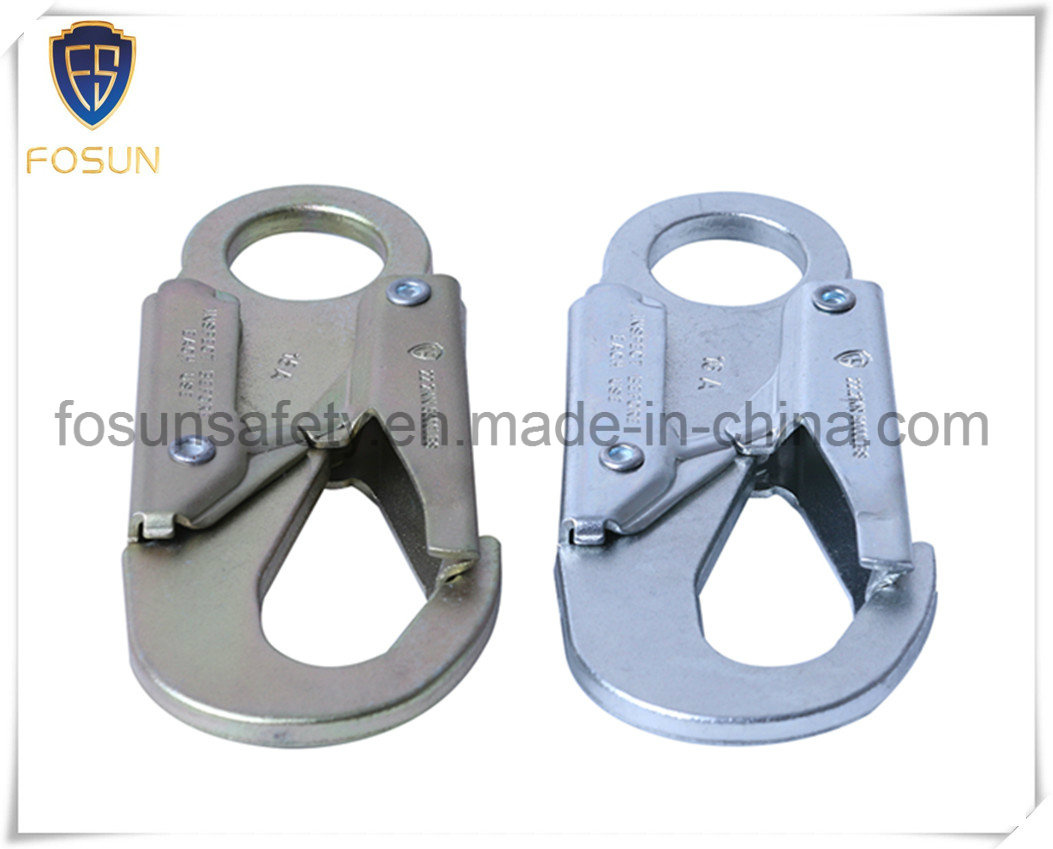

Customized Alloy Snap Hook Used on Upper
| Price: |
US $ 1.75-2.35/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Fall protection Snap hook G7115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Open Gate: |
19mm |
| Minor Axis: |
16kn |
| Major Axis: |
22kn |
| Min Tensil Strength: |
22kn/5000lbs |
| Finish: |
White/Yellow Plating |
| Material: |
Metal |
| Type: |
Hook |
| Usage: |
Industrial and Household |
| Brand: |
Fosun/as Your Request |
| Color: |
White/Yellow Zinc Plating |
Product Description
Specifications:

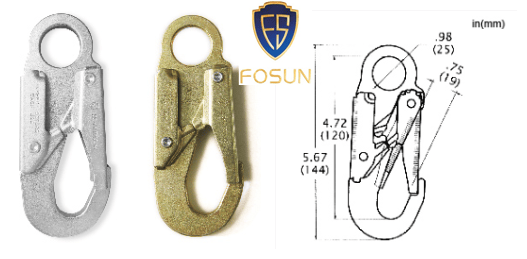

G7115 3/4" Snap Hook
Sheet Stamping Steel
100% proof loaded to 3600 Lbs(16kN)
Min tensile strength 5000 Lbs(22.2kN)
Certified to:
ANSI Z359.1
CSA Z259.12
EN362
Finished:White/Yellow Zinc Plating
Weight: 275gm
Strict manufacturing,Quality control and Testing
1,Tensile testing
100% proof loaded to 3600 lbs(16kN) tensile strength testing.
2,3D measure
With high quality,high clear camera system and the 3D professional measure system,exceeding which other measurement tools cannot measure the field.
3,Load testing
All connected parts of safety hooks are with 100% through 3600lbs (16kN) load testing.
4,Breaking tensile testing
To ensure that each product can meet the breaking force of international standard.
5,Salt spray testing
Better for product selection,structure design,process selection,product transportation storage and using to provide effective information to provide or materials to resist salt spray corrosion.
Our Advantage
1,10 years of rich experience in forging and production.
2,Using high quality materials,first-class equipment,
3,Stable products supply,good quality control and advanced technology.
4, Mark as customer's requst, like customer's Company LOGO
5,Competitive factory price.
6,Free samples, you only pay the shipment charge.
7,Strict inspection before shipping.
8,Welcome customer's designs, OEM and ODM
9,On time delivery.
10,Good warranty and after-sales service.
MINIMUM REQUIREMENTS AS OUTLINED FOR HOOKS AND CARABINERS PER STANDARD| Standard | CSA Z259.12-01 | CSA Z259.12-11 | ANSI Z359.12-1999 | ANSI/ASSE Z359.1-2009 | EN 362:2004 | NFPA 1983-2006 |
| Major Axis | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 4500 lbs(20kN) | *** |
| Gate Face | 220 lbs(1kN) | 3600 lbs(16kN) | 220 lbs(1kN) | 3600 lbs(16kN) | 220 lbs(1kN) | N/A |
| Side Load | 350 lbs(1.55kN) | 3600 lbs(16kN) | 350 lbs(1.55kN) | 3600 lbs(16kN) | 350 lbs(1.55kN) | N/A |
| Minor Axis | N/A | 3600 lbs(16kN)* | N/A | 3600 lbs(16kN)* | ** | *** |
* New Standard required Minor Axis Loading for connectors with non-integral eyes.
** EN:Basic Connectot 1575 lbs(7kN);Multi Use Connector 3378 lbs(15kN).
*** NFPA:Light Use...Major Axis gate closed 6069 lbs(23kN);Major Axis gate open 1574 lbs(7kN)
General Use...Major Axis gate closed 8922 lbs (39.7kN); Major Axis gate open 2473 lbs(11kN);Minor Axis 2473 lbs(11kN) |
