| Prod Model: |
Magnetic Chuck |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Lathe Machines , Grinding Machines |
| Power: |
Electric |
Product Description

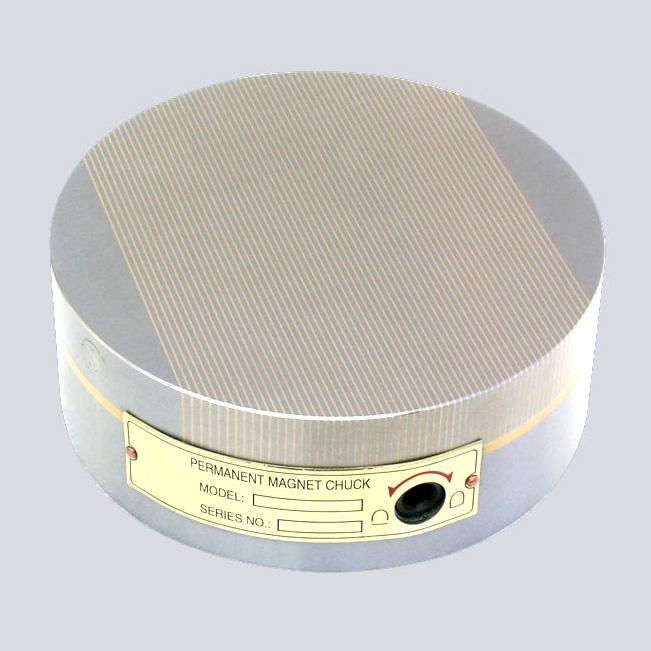

Round Permanent Magnetic Chuck
Excellent holding power with low energy consumption.
Suitable for grinding application, holding components on grinding matchines.
Available in diameter from 125mm ~1600mm| Model No. | D | H | K | C | Z | M | P | Weight(kg) |
| C125 | 125 | 48 | 3 | 80 | 4 | M6 | 2 | 4.6 |
| C150 | 150 | 48 | 3 | 100 | 4 | M6 | | 6.6 |
| C160 | 160 | 48 | 3 | 100 | 4 | M8 | 0.5+1.5 | 8.9 |
| C200 | 200 | 52 | 4 | 120 | 4 | M8 | | 12.8 |
| C250 | 250 | 52 | 4 | 160 | 4 | M8 | | 20 |
| C300 | 300 | 58 | 4 | 220 | 4 | M8 | | 32 |
| C400 | 400 | 58 | 4 | 300 | 4 | M10 | 4 | 57 |
| C500 | 500 | 65 | 5 | 408 | 4 | M12 | | 100 |
| C600 | 600 | 65 | 5 | 528 | 4 | M12 | 1+3 | 144 |

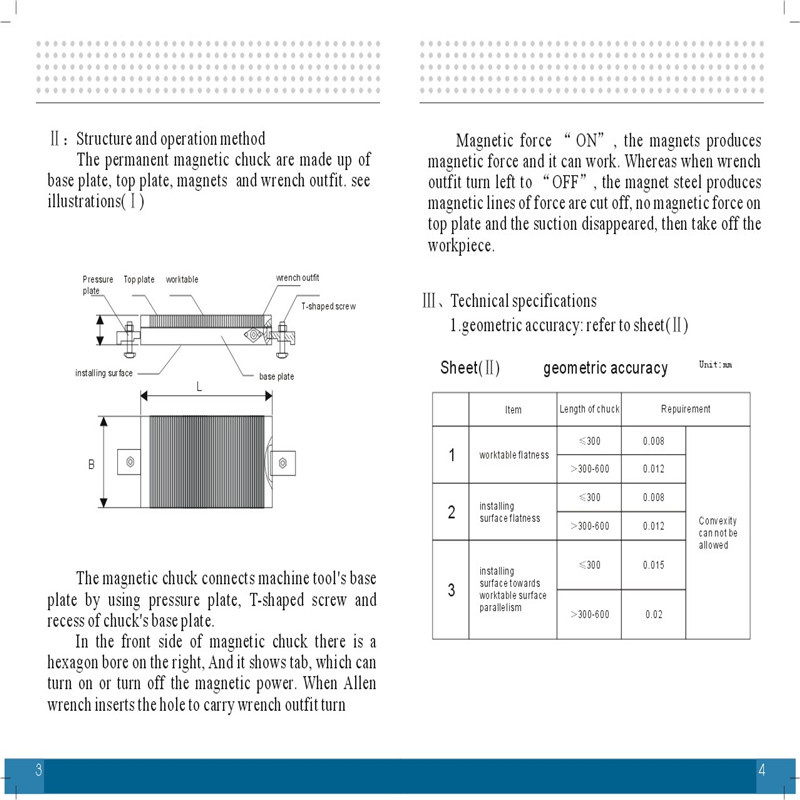

1. Put the workpiece to countertop of magnetic chuck,, and then insert the wrench into shaft hole, along the clockwise rotation 180 to "ON", can catch up machined part to processing.
2. After the workpiece is processed, and then using a wrench inserted into the shaft hole along the counterclockwise rotation in 1800 to "OFF", that is ok.
- Maintenance and maintenance
1. Should clean the surface of magnetic chuck before use,to avoid any scratch to effect precision
2. Environment temperature of using: - 400 C - 500 C.
3. Coated with anti-rust oil after you used finish, to prevent rust.
4. It is strictly prohibited to knock, to prevent magnetic reduced.
Ningbo Huihesing Advanced Material Tech Co., Ltd. Specializes in developing manufacturing and selling of permanent magnetic products, and also has a long history and is one of the leaders in this line of magnetics in China.
Our main products as follows:
1. NdFeB permanent magnets ( Neodymium, Rare earth )
2. Rubber/plastic magnetic material
3. Ferrite magnets, complex magnet ( ferrite + rare earth )
4. Magnetic hardware, plastic tools
5. Magnetic assemblies
For the magnet ball, we are proud of obtain the CE Certificate. We can produce it according to customers' requests.
Size: From D2mm-D50mm
Tolerance: +/-0.02mm, +0.03/-0.01vmmGrade: N35, N38, N40, N42, N45 and so on. Coating: Nickel, black nickel, silver, gold, blue, and red.
Our magnets are commonly used in the following applications:
Electric motors: Permanent motors, mini (libration) motors, electric bicycle motors.
Electronics: Speakers, telecommunications, computer optical drives, OA equipments, Home appliances, meters.
Industry: Magnetic separators (for food, mineral, glass and coal), magnetic cranes, salvage machineries, magnetic chucks.
Civil: Magnetic jewelries, toys, magnetic buttons.
Medical: Magnetic therapy, nuclear magnetism resonance, homeopathic health care.
Every aspect of our operation rests upon one service principle: "Bestway is your best choice for magnets. " We sincerely welcome your business, and look forward to good cooperation.
