| Prod Model: |
X350 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Resin Diamond Grinding Wheel |
| Shape: |
Round |
| Size: |
350X127X10 |
| Inside: |
Al |
| Outside: |
Diamond |
| Finished: |
Grinding, Blank |
| Usage: |
Carbide Cutting |
| Advantage: |
High Wear-Resistance |
| Hardness: |
Superhard |
| Material: |
Alumina |
| Types: |
Cutting Wheel |
| Abrasive: |
Normal Abrasive |
| Working Style: |
Surface Grinding |
| Shapes: |
Edge Shape |
Product Description

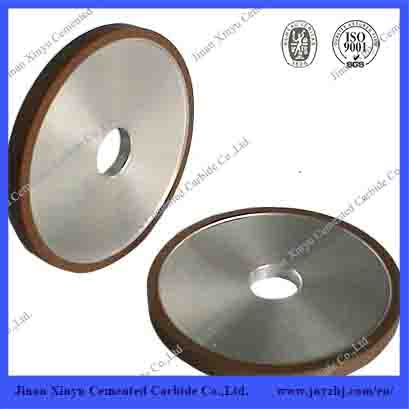

Resin Diamond Grinding Wheel For Carbide Cutting
----widely used in accurately grinding ceramic, glass, cemented carbide, hard alloy steel, etc..I. Size of Diamond Grinding Wheel
--All Size and Shape Accept; Unique drawing Welcomed.
| TYPE | Dimension (mm) |
| O.D | I.D. | Diamond Thickness | Height |
| XY01 | 250 | 75 | 10 | 10-50 |
| XY02 | 300 | 75 | 10 | 10-50 |
| XY03 | 350 | 127 | 10 | 10-50 |
| XY04 | 400 | 203 | 10 | 10-50 |
| XY05 | 500 | 203 | 10 | 10-50 |
| XY06 | 600 | 300203 | 10 | 10-50 |
II. Tungsten carbide button/rod/tips fitting could mine quarrying coal-cutting, road construction, snow plow etc. It is fitting for serving as drill heads of heavy rock-digging machines, plumbun heads are used in deep hole drilling terrace vehicles. We can provide all kinds of buttons according to the drawings and samples including non-standard styles.
III. Material & Chemical composition of Tungsten Carbide
| Grades | ISO Grade | Chemical
Composition | Density (g/cm3) | HRA | T.R.S (N/mm2) |
| YG4C |
| 96%WC, 4%Co | 15.00 | 89.5 | 1800 |
| YG6 | K20 | 94%WC, 6%Co | 14.80 | 89.5 | 1700 |
| YG8 | K20-K30 | 92%WC, 8%Co | 14.70 | 88.5 | 2300 |
| YG8C | K30 | 92%WC, coarse | 14.70 | 88.0 | 2300 |
| YG9C | YK20 | 94%WC, 6%Co | 14.45 | 87.0 | 2400 |
| YG11C |
| 89%WC, 11%Co | 14.40 | 86.5 | 2450 |
| YG13C |
| 87%WC, 13%Co | 14.30 | 86.0 | 2500 |
| YG15 | K40 | 85%WC, 15%Co | 14.00 | 86.5 | 2500 |
| YG16 |
| 84%WC, 16%Co | 14.10-14.30 | 87.5 | 2400 |
| YG20 |
| 80%WC, 20%Co | 13.40-13.70 | 85.0 | 2254 |
IV. Tungsten carbide, which is also sometimes referred to as "Heavy Metal", has a compressive strength much greater than any hard metal or alloy. Because it's highly resistant to abrasion, it is ideal for use in a variety of wear applications. Tungsten carbide button fitting is machine able and is usually sintered from powdered tungsten and powdered copper, it is a biologically safe, very heavy material. The scrap tungsten carbide button fitting is recyclable and it is typically produced when drilling or machining golf iron weights, gamma collimators, and aircraft elevator balance weights. It is stable nature even in high temperature that maintains the high hardness and high intensity. Especially, the WC-Co carbide performs very well in the machine.
V. Company Introduction
Founded in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licenced import and export enterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities. Our products are exported to more than 50 countries and regions across the world including the United States, Canada, Italy, Japan, Korea,Taiwan,Asia, Europe, Africa,India, Chile etc.
The cemented carbide and related products of our company is of excellent performance and quality and sold well both at home and abroad. Our company has passed the ISO9001 surveillance and assessment and been praised as the first class AAA credit company.
