Cutting and Punching Machine, Power Punching Machine

Name: Cutting and Punching Machine, Power Punching Machine
Brand: tool-buy.com
SKU: 825888075
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 4800-5300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Anhui Province Shenchong Forging Machine Co., Ltd.

Showroom Product Company Profile

Prod Model:	Q35Y Series
Machine Body:	Steel Plate Welded Structure
Work Table:	Casting
Crankshaft:	45 Steel Forgings, Hardened Surface
Flywheel:	Casting Ht200
Main Power:	Siemens From Germany
Hydraulic System:	Rexroth Germany
Switches, Buttons, Lights:	Schneider Electric SA
AC Contactor:	Schneider Electric SA
Votage:	220V/380V/415V(Optional)
Safety:	Ce and IP54
Type:	Deep Throat Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Automatic
Power Source:	Mechanical Drive
Precision:	Normal Precision

Product Description

MeHydraulic Iron Worker Multifunction punching and cutting Machine

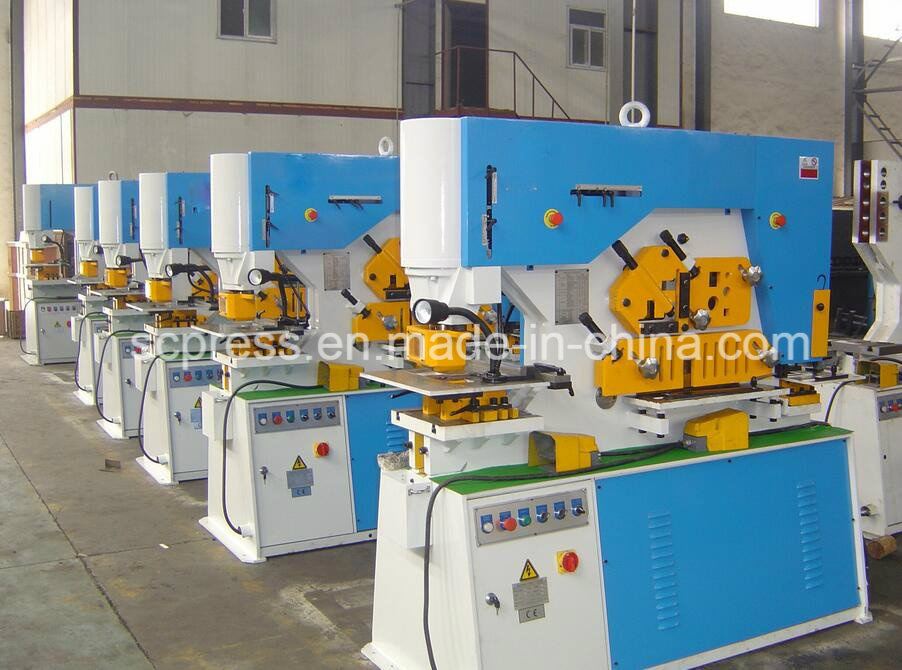

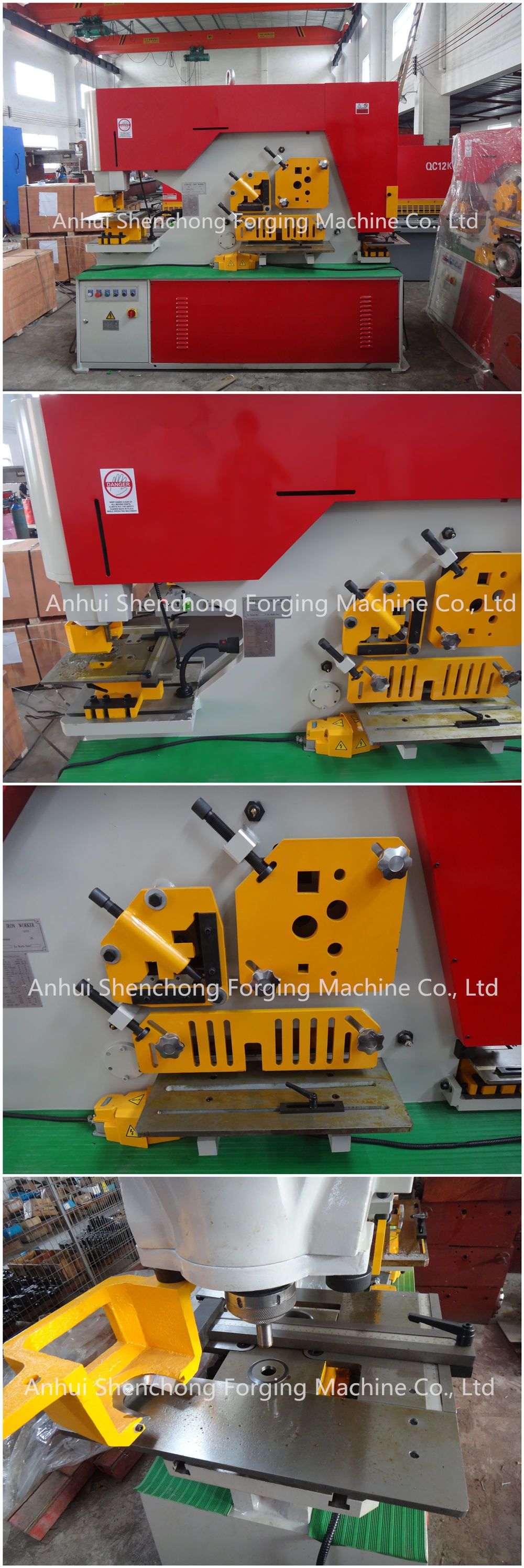

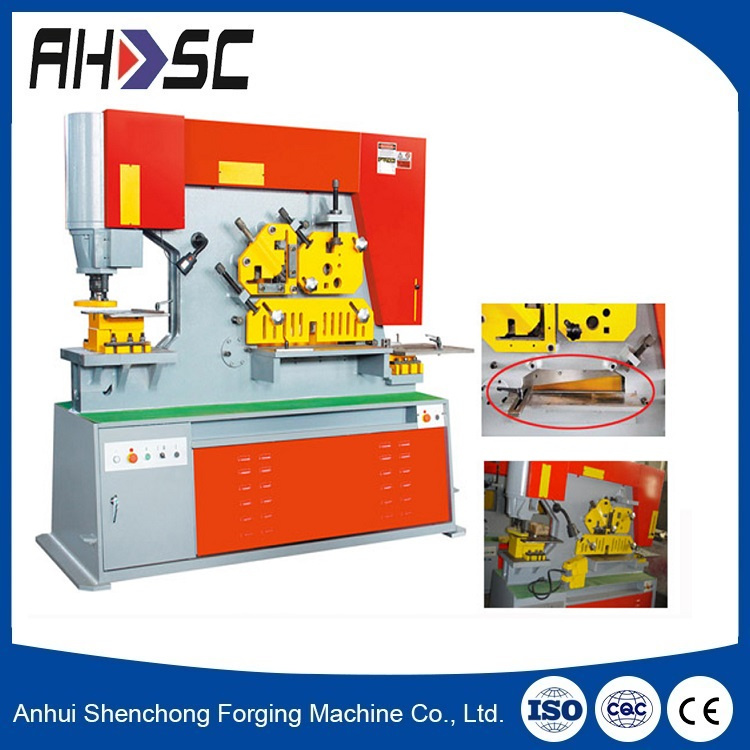

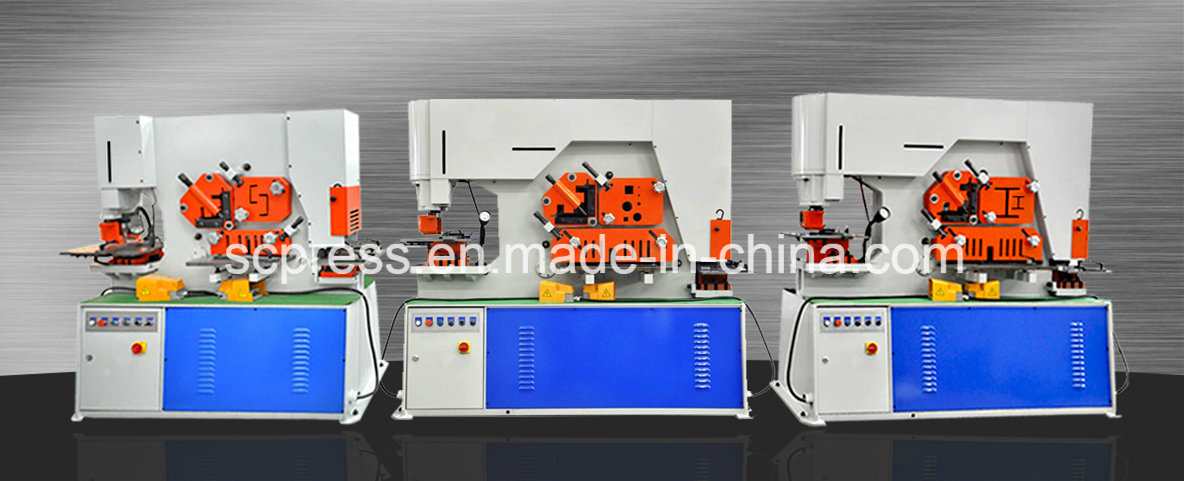

The structure of the Hydraulic Iron Worker

Q35Y Series Hydraulic Iron Worker, Totally European design,The machine are strong and easy to use machines
which are able to can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.
Bamboo Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry.
This profitable machine Will serve any grueling fabrication shop for decades to come.
The machine by the European Union CE certification and ISO quality system certification

Hydraulic System
1.Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from
Bosch - Rexroth,Germany.
2.All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance
3.Being able to work under rated load continuously,stable working and high precision.

Electric & Safety Interlock:

1.Electrical components are from European,in accordance with international standards,reliable safety,long life,good anti-interference ability,a
2.radiation unit is fitted in electrical cabinet.
3.Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
4.Emergency stops on machine and foot switch for safety,Foot pedal conforming to CE regulation.

2.Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overload protection device, simple structure,if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage.

3.Die height adjustment of slider with manual mode, using V shaped slider guide rail, easy adjustment

Technical Specification

Model	Unit	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
Pressure	Tons	55	85	120	140
Max.cutting thickness	mm	16	20	25	30
Plate strength	N/mm²	≤450	≤450	≤450	≤450
Cutting angle	degree	7°	8°	8°	8°
Sheraing size of one stroke)	mm	16250 or 8400	20330 or 10480	25330 or 16600	30355 or 20600
Ram stroks	mm	80	80	80	80
Number of strokes	cpm	8	8	6	6
Throat depth	mm	300	355	400	600
Punching thickness	mm	16	20	25	26
Max.Punching diameter	mm	25	30	35	38
Power of main motor	kw	4	5.5	7.5	11
Overall dimensions(LWH)	mm	16407301770	18608001900	23559602090	268010402300
Weight of machine	Kg	1700	2000	4800	6800

Profile	Round Bar	Square Bar	Equal Angle		T-Bar		joistq	Channel
Profile	Round Bar	Square Bar	90°Shearing	45°Shearing	90°Shearing	45°Shearing	joistq	Channel
Q35Y-16	45mm	40*40mm	12512512mm	50505mm	12012012mm	60608mm	126745mm	126535.5mm
Q35Y-20	50mm	50*50mm	14014012mm	50505mm	14014012mm	707010mm	160868mm	160606.5mm
Q35Y-25	60mm	50*50mm	16016014mm	50505mm	16016014mm	808010mm	2001029mm	210759mm
Q35Y-30	65mm	55*55mm	18018016mm	60606mm	18018016mm	808010mm	28012412mm	2808612mm
