| Prod Model: |
CW61100 |
| Spindle Bore: |
105mm |
| Max. Swing Over Bed: |
1000/1200mm |
| Distance Between Centers: |
850-11850mm |
| Machine: |
Lathe |
| Voltage: |
110V, 220V, 380V |
| Clour: |
Customer Appoint |
| Package Style: |
Fumigated Poly-Wood Case |
| Payment: |
T/T, Paypal, LC, West Union |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Tool Holder: |
4-Station Toolpost |
| Processing Accessory: |
Steel Workpiece |
Product Description
FeatureThis heavy duty horizontal face lathe series include : CW6163B,CW6180B,CW6280B, CW6110B.This lathe is a special purpose heavy duty horizontal face lathe and it is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces .
Main Specification
| MODEL | CW6163 | CW6180(A) | CW61100(A) | CW61120(A) |
| CW6263 | CW6280(A) | CW62100(A) | CW62120(A) |
| CAPACITY | Max.swing over bed | Φ630mm(24-3/4") | Φ800mm(31-1/2") | Φ1000mm(39") | Φ1200mm(47-1/4") |
| Max.swing over gap | Φ830mm(32-3/4") | Φ1000mm(39") | Φ1200mm(47-1/4") | Φ1400mm(55") |
| Max.swing over cross slide | Φ345mm(13-1/2") | Φ480mm(18-3/4") | Φ680mm(26-3/4") | Φ680mm(26-3/4") |
| Center distance | 850/1350/1850/2850/3850/4850/5850/7850/9850/11850mm (33 1/2",53",73",151 5/8",191",230 3/8",309",387 3/4",466 1/2") |
| Width of bed | 600mm(23 1/2") |
| HEAD STOCK | Spindle hole | Φ105mm(4 1/4") (Φ130mm(4 1/4"),available for CW6180) |
| Spindle taper | Φ120mm(4 3/4") taper 1:20 |
| Spindle speeds | 0.75-1000r/min | 5.5-730r/min |
| GEAR BOX-THREAD&FEEDS | Metric threads mm | 1-240mm (52) |
| Inch threads TPI | 1-14 (26) |
| Module threads mm | 0.5-120mm (53) |
| Diametral threads DP | 1-28 (24) |
| Longitudinal feeds range | 0.1-24.3mm/r |
| Cross feed range | 0.05-12.15mm/r |
| Rapid feed:long/cross | 4000mm/min,2000mm/min |
| TOOL-POST | Tool section | 32mm×32mm(1-1/4"x1-1/4") |
| CARRIAGE | Cross slide travel | 370mm(14-1/2") | 430mm(17") |
| Compound rest travel | 200mm(7 3/4")(travel for A type:170mm(6 2/3")) |
| TAILSTOCK | Sleeve diameter | 100mm(3-3/4") | 120mm(4-3/4") |
| Sleeve taper | Morse 6 |
| Sleeve travel | 240mm(9 1/2") |
| STEADY REST | Steady rest | Φ20-200mm(3/4"-7 3/4") |
| Follow rest | Φ20-135mm(3/4"-5 1/4") |
| MOTOR | Main motor | 11kw(15kw) 15HP(20HP) |
| Rapid feed motor | 1.1kw (1.5HP) |
| N.W | kgs | 4600/5000/5200/5800/6400/7000/7900/9000/104000/11700kgs |
| OVERAL SIZE | Length | 3000/3500/4000/5000/6000Φ7000/8000/10000/12000/14000mm |
| Width | 1170mm |
| Height | 1250mm |
Standard Accessoires4-jaw chuck, vibrashock
two centers, tool box with tools
wrenches, coolant system
follow rest, English Operation manual
Accuracy test report Schneider Electrical part

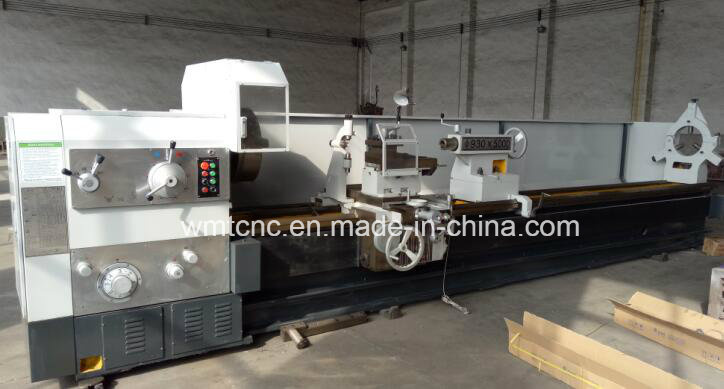

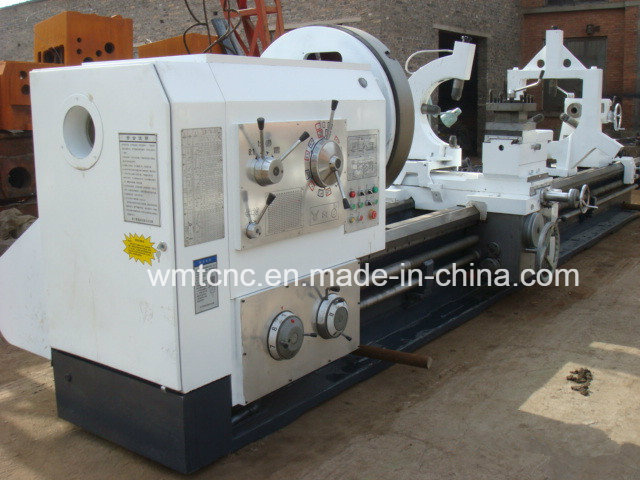

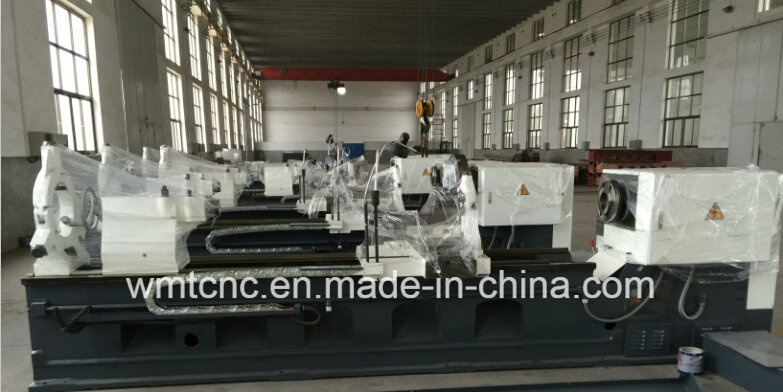

Guarantee Terms:Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.Machines' pics.
