| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | CZSJ-2000 |
|---|---|
| Usage: | Marble |
| Application: | Stone Industry |
| Source Voltage: | 380V |
| Automation: | Automatic |
| Type: | Wire Saw Machine |
| Control: | PLC |

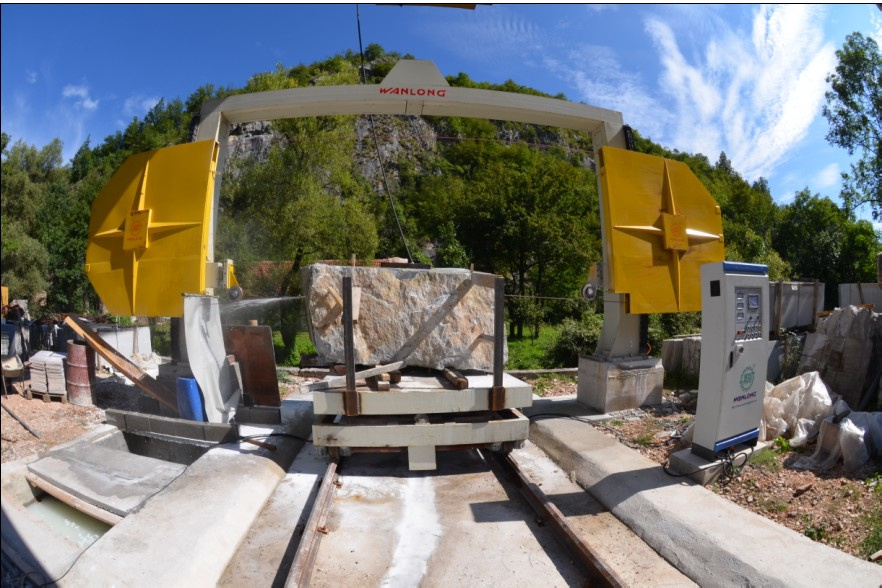

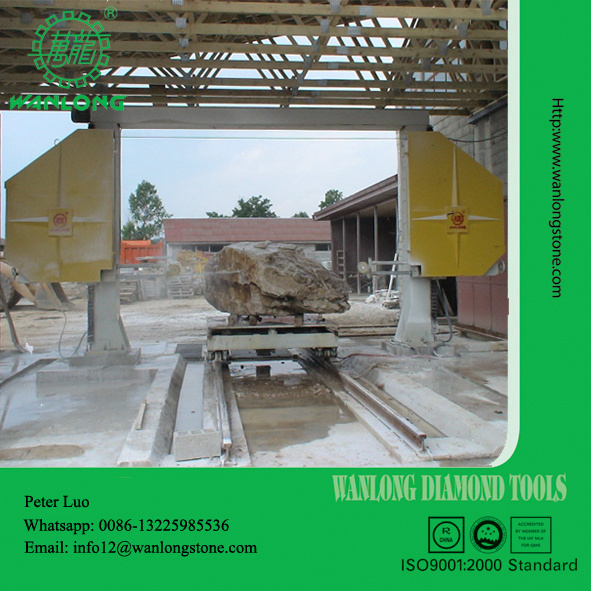

Diamond Wire Saw Machine
Model CZSJ-2000
This machine is specially designed for vertical cutting. It can be used for block squaring, splitting, large slabs producing, etc… Smooth cutting and high working efficiency is its main characteristic.
Feature
l Gantry structure with wide crossbeam, large size of block cutting available
l Independent guide rails on the column make the flywheels move up and down smoothly
l Flywheels work stably that improves the service lifetime of the diamond wire saw
l Stable and constant stretch via hydraulic system enhances the cutting accuracy
l Guide wheel adopts a four-layer sealed protection system to greatly improve the machining precision
l Electrical parts adopt name brand to ensure the stability and reliability
l friendly human-machine interface and easy operation
l CE certificate
Technical Parameter
| CZSJ-2000 |
Diameter of wire saw (mm) | 8.6-10.8 |
Wire length | 18m |
Main motor power(kw) | 11 |
Gross power (kw) | 17.6 |
Water consumption (cbm/h) | 6 |
Max. cutting size (LxWxH/mm) | 4000x2000x2000 |
Worktable size(mm) | 2000x2000 |
Overall dimension (LxWxH/mm) | 8255x6065x3915 |
Total weight (kg) | 8,500 |
