| Prod Model: |
Q1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Dual 10"2-Way Line Array |
| Woofer: |
2PCS 10" High Power Woofer |
| Hf: |
1PC 2" High Quality Compression Driver Unit |
| Components: |
10"X2+2" |
| RMS Power: |
750W |
| Material: |
High Class Plywood Cabinet |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Mono |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
CE |
| THD: |
<0.005% |
Product Description
NOVA make line array, PA audio, pro audio, professional loudspeakers,amplifier, signal processor and flightcase.

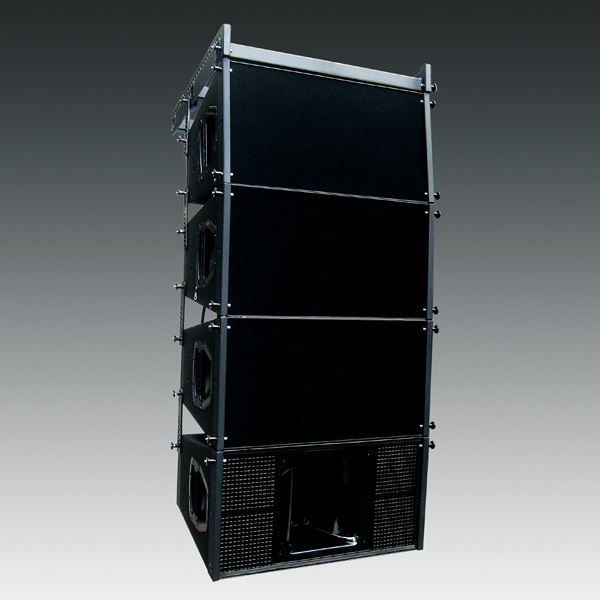

Q1 is a passive two-way design that houses 2x10" LF drivers and a 2" HF compression driver units.
Q1 Specification:
Frequency response: 60Hz-20KHz(-10dB)
100Hz-19KHz(±3dB)
RMS power: 750W
Program power: 1500W
Norminal Impedance: 8Ohm
Sensitivity: 139dB/W/M
Max SPL: 142dB
Component: 2x10"+2"
Coverage Angles: 75H°x15°V
Specification |
| Model | Q1 | QSUB |
| System | 2-Way line array system | subwoofer |
| Frequency response (dB standard): | 60Hz-17KHz (±3dB) | 40Hz-130Hz |
| Frequency response (dB CUT mode): | 100Hz-17KHz (±3dB) | 40Hz-100Hz |
| Components: | LF: 2x10" woofer units | 18" sub-woofer unit |
| | HF driver: 1X2" compression driver unit | |
| Normal Impedance: | 8Ohm | 8Ohm |
| RMS power: | 750W | 500W |
| Peak power: | 1500W | 2000W |
| System sensitivity: | 135dB/M/W | 129dB/M/W |
| Max sensitivity: | 139dB | 133dB |
| Horizontal (-6dB): | 75° | N/A |
| Vertical (-6dB): | 15° | N/A |
| Dimension (WxDxH): | 580x306.5x425mm | 493x580x668mm |
| Enclosure material: | 18mm plywood | 18mm plywood |
| Grill: | Black perforated steel | Black perforated steel |
| Suspension system: | proprietary rigging system | proprietary rigging system |
| Net weight: | 29kg | 49kg |
Nova specializes in manufacturing PRO audio which including line array, professional loudspeakers & KTV, power amplifiers, mixers consoles, signal processors including equalizers, limiters/compressors, exciters, crossovers, power sequence controllers etc. To meet different customer's market, we also add producion line for woofer speakers, subwoofer speakers and flightcase for sound equipmentand professional lights and LED monitor ect.
With experienced & strong R&D department and strictly quality control managment and Satisfactory market service system and reasonable price and good quality, Our price had got high reputation in many ares.
OEM/ODM also available.
