| Prod Model: |
DC-022M |
| Color: |
White Black Green Yellow Red Blue |
| Current: |
2A 50V |
| Standard: |
Chinese Standard |
| Function: |
Headphone Plug |
| Nominal Voltage: |
50V |
| Brand: |
Jsh |
| Certification: |
Ce RoHS |
Product Description
Specification
1.Environment Temperature: -25°C to 85°C
2.Rated Load: 50VDC 0.5A
3.Insulation Resistance: ≥100MΩ
4.Contact Resistance: ≤30mΩ
5.Lifetime: 5,000Cycles
6.Operating Force: 3-30N
7.Withstand Voltage: AC 500V(50Hz)1min

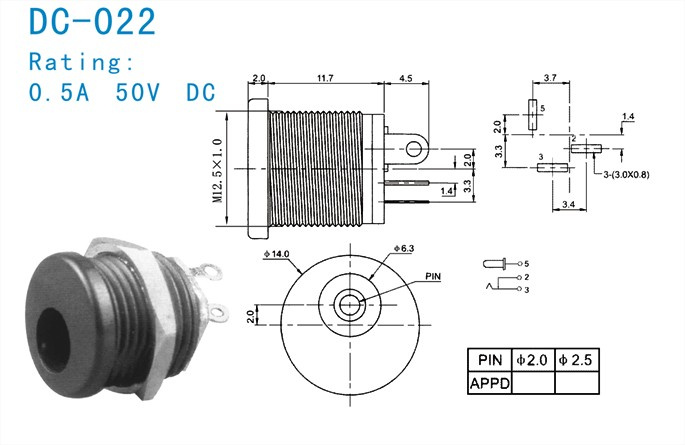

Drawning
Packing
500 pcs/one bag
Gross weight for one bag is 1.2kg
