| Prod Model: |
For optical fiber cables type ADSS |
| Note: |
Short Spans<100m, or According to Line System |
Product Description

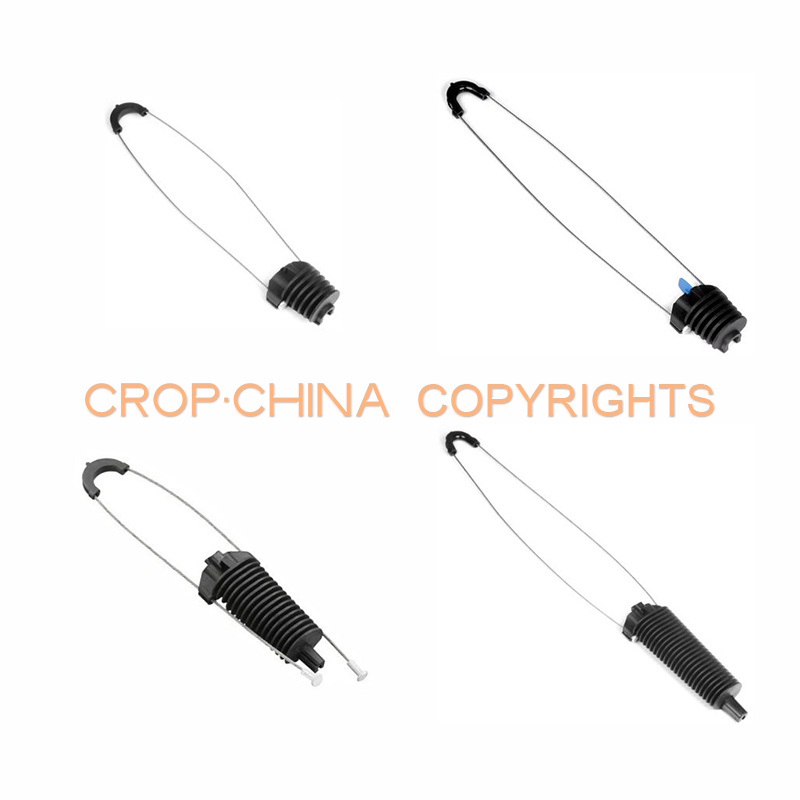

DEAD-END ANCHORING CLAMP FOR ADSS/ROUND CABLES/ MESSENGERED FIG-8 CABLES
Description
For optical fiber cables type ADSS, Automatic conical tightening. Opening bail easy to be installed.
All the parts secured together.
Standard: NFC33-042.
Features
A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.
Material
Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).
| Models | PA-05-*Z | PA-05-* | PA-02-* | PA-01-* |
| Cable diameter(mm) | 3-7 | 3-7 | 6-8 | 8-10 |
| Min Tension (daN) | 400 | 400 | 500 | 500 |
| L(mm) | 360 | 360 | 400 | 400 |
(*)Add "FA" mean steel rope, add "SS" mean stainless steel rope
For messengered Fig-8 cable, AAAC or Steel Fibre glass reinforced resin; Round ADSS
*Z=Zinc Alloy Wedge
